Fully Enclosed Waterproof Ballscrew CNC Slide Table Kit Motorized Linear Guide Stage Width 40mm

Fully Enclosed Waterproof Ballscrew CNC Slide Table Kit Motorized Linear Guide Stage

QMF40 Parameters:

Material: Industrial aluminum profile

Stroke: 100mm - 1000mm (choose according to needs)

Horizontal load: 40kg (max)

Vertical load: 20kg (max)

Motor bracket: 57mm stepper motor

Module width: 42mm

Repeat positioning accuracy: 0.03mm - 0.05mm

Guide: 1 x MGN12R (12mm width)

Block: 1 x MGN12C

Ball screw material: Bearing steel

Ball screw type: SFU1204/1605/1610 (SFU1605 means: Screw diameter 16mm, Pitch 5mm; 1 full rotation moves the table 5mm)

Ball screw accuracy: C7

Max moving speed: 250mm/s

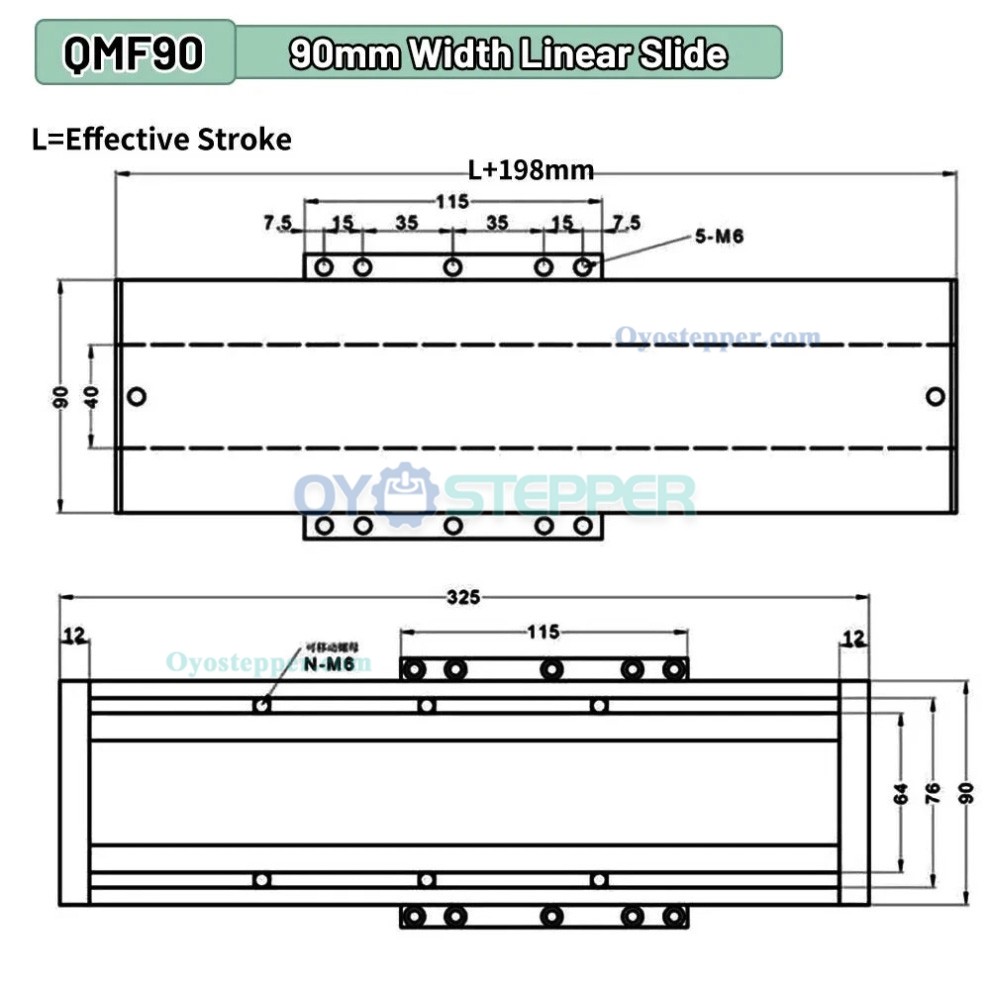

QMF90 Parameters:

Material: Industrial aluminum profile

Stroke: 100mm - 1000mm (choose according to needs)

Guide rail type: 2 x MGN12

Sliders type: 4 x MGN12C

Horizontal load: 70kg (max)

Vertical load: 35kg (max)

Motor bracket: For NEMA23 57mm stepper motor

Module width: 90mm

Repeat positioning accuracy: 0.03mm - 0.05mm

Ball screw material: Bearing steel

Ball screw type: SFU1605/1610

Ball screw accuracy: C7

Max moving speed: 250mm/s

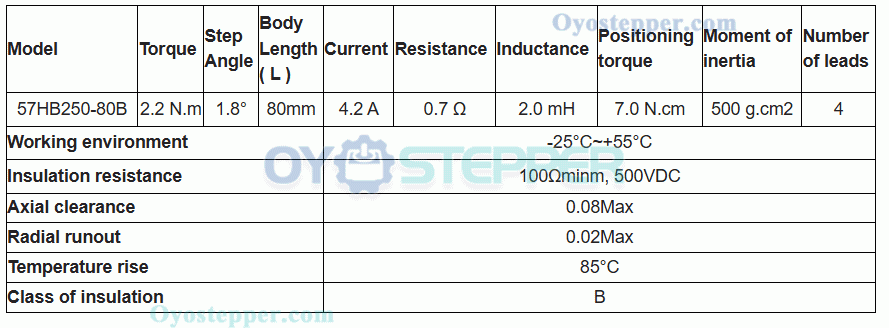

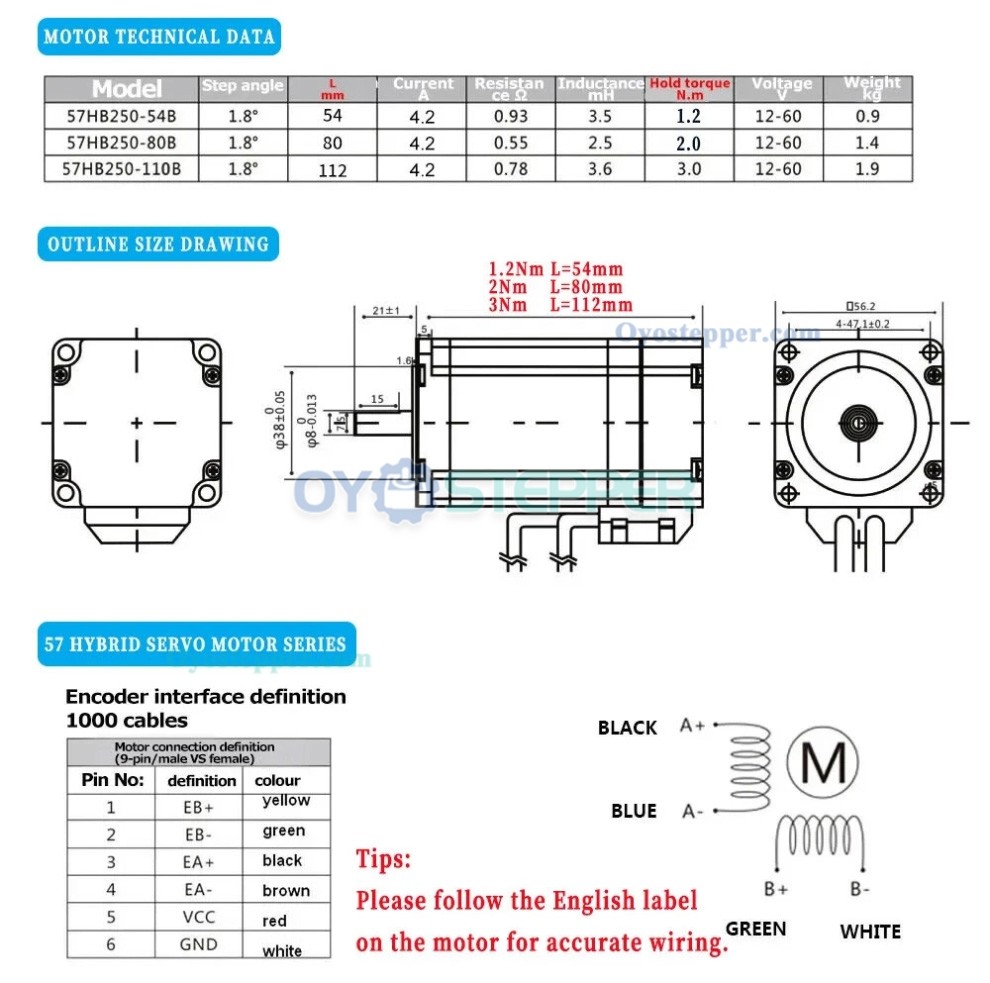

NEMA23 Closed Loop Motor Parameters:

Flange: NEMA23 57mm

Step angle: 1.8°

Phase: 2 Phase

Hold torque: 2.0Nm

Motor length: 80mm

Rated speed: 1000RPM

Encoder: 1000-line

Resistance: 0.4/0.7/0.8(ohm)

Inductance: 2mH

Class of insulation: B

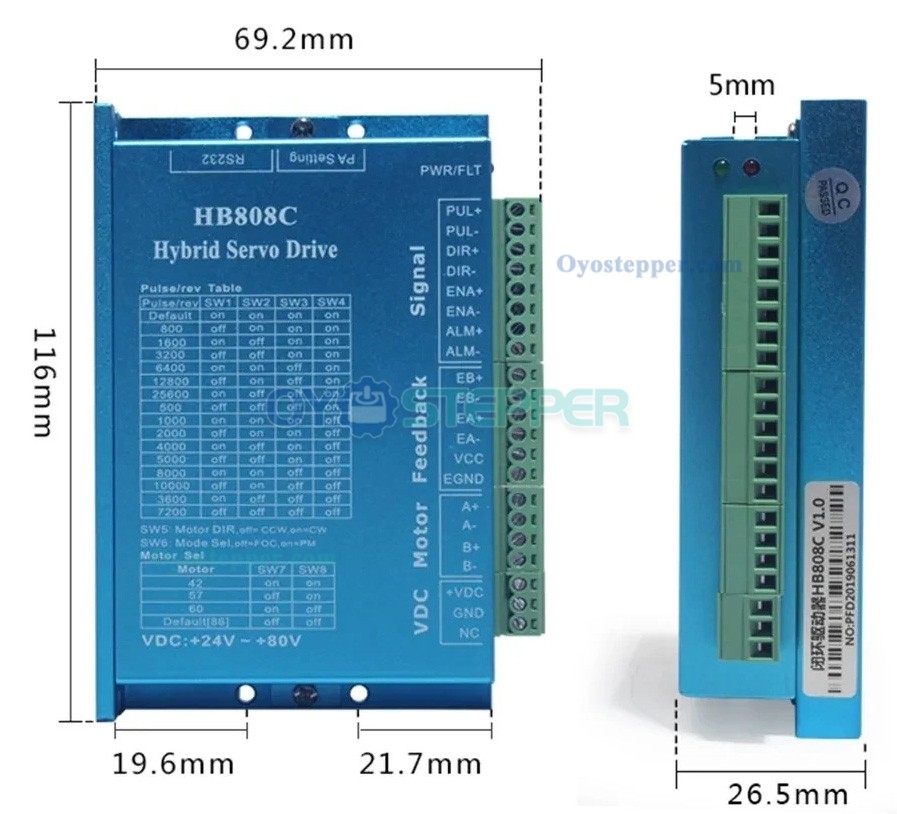

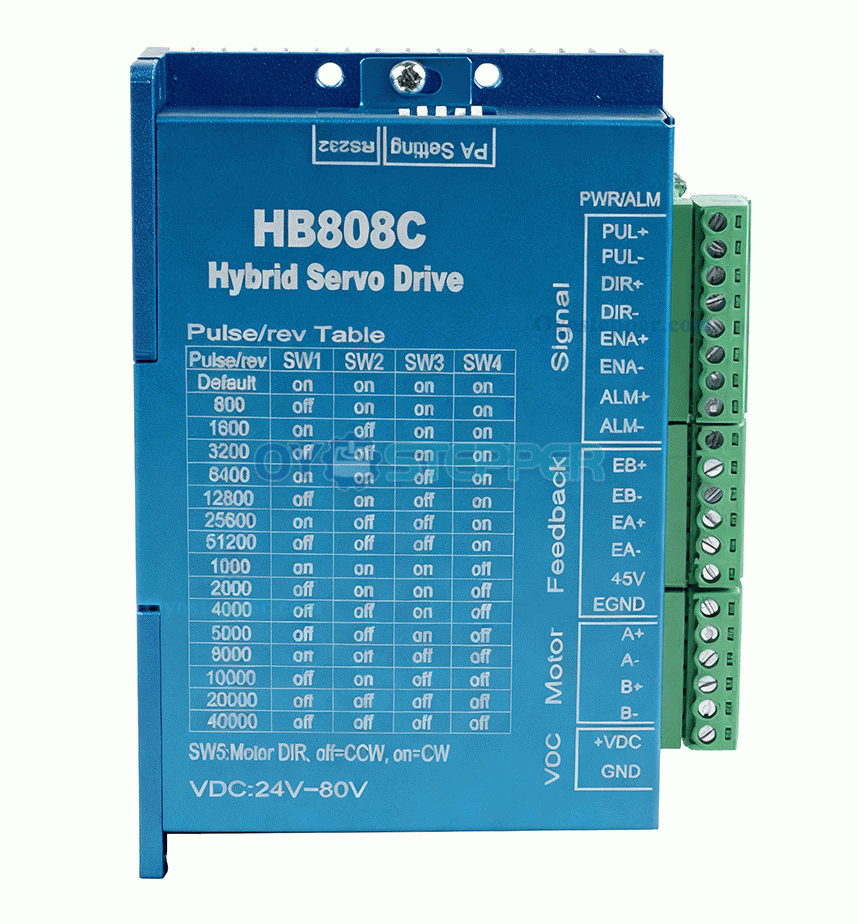

HB8080C Driver Specification:

Maximum peak current: 8A

Impulse response frequency: 200KHz

Micro-stepping driver: 200-51200 PPR

Input voltage: 20-80VAC / 30-110VDC

Protective functions: Over voltage, over current, tracking error, overload

Signal input: Support PUL/DIR and CW/CCW modes (differential)

Compatible signal: 5-24V (no resistor needed)

Cooling type: Air-cooling

Logic signal current: 7-16mA

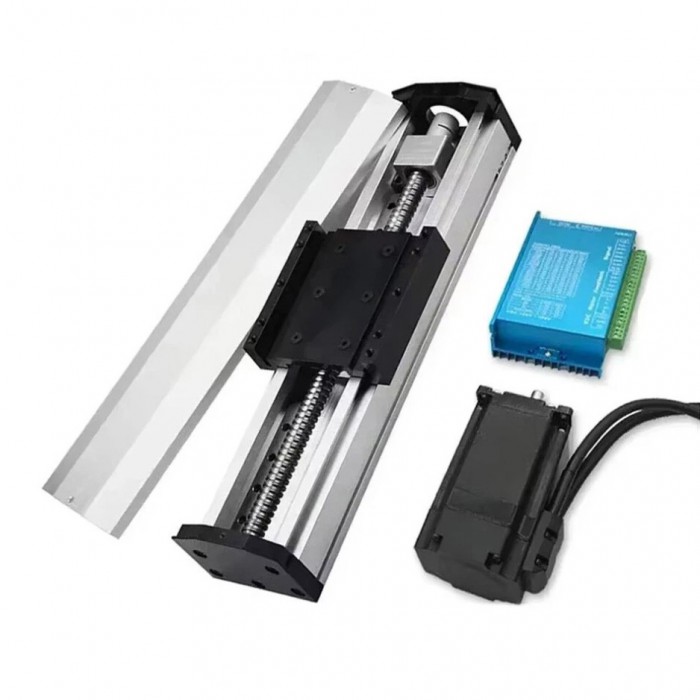

Package List:

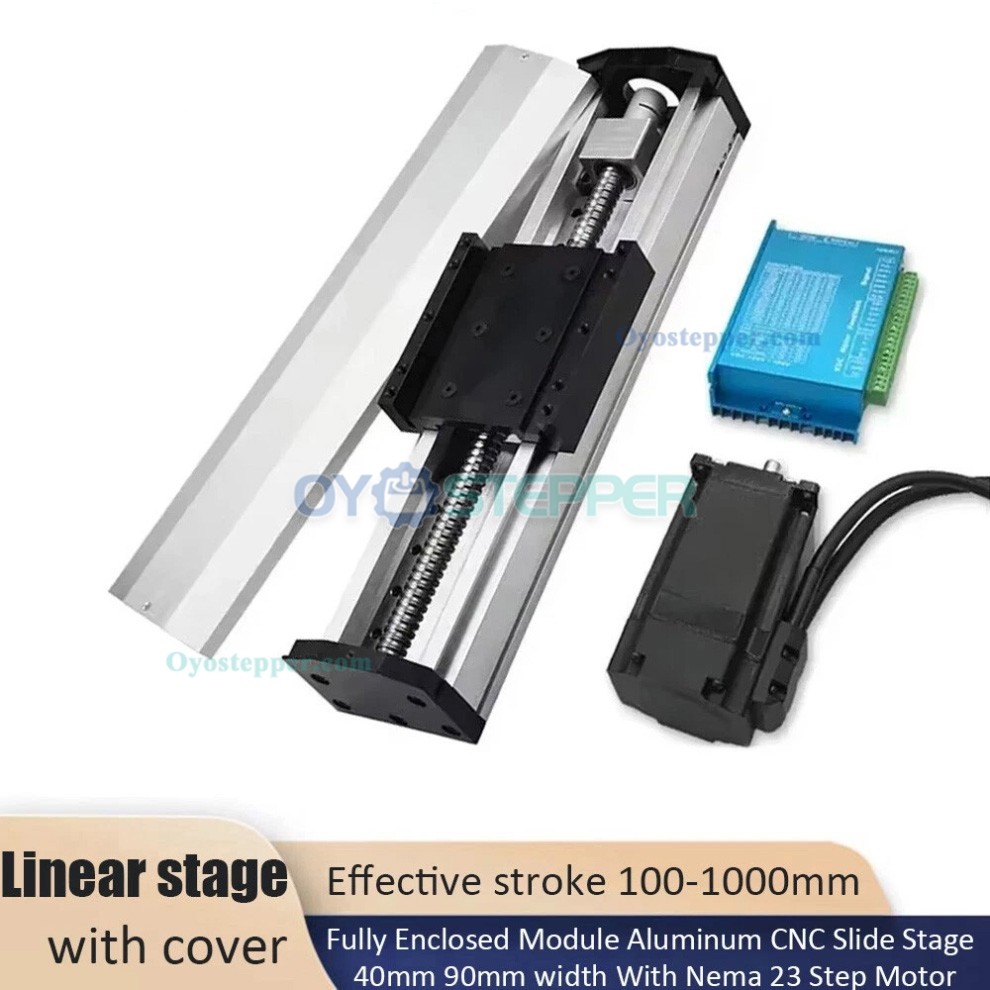

1 x Sliding table with cover (40mm/90mm width)

1 x NEMA23 57MM closed loop stepper motor (2Nm)

1 x HB8080C motor driver
