NEMA 34 Closed-loop Stepper Motor with Encoder 4.5/8.5/12Nm 1.8 Degree 2 Phases Kit

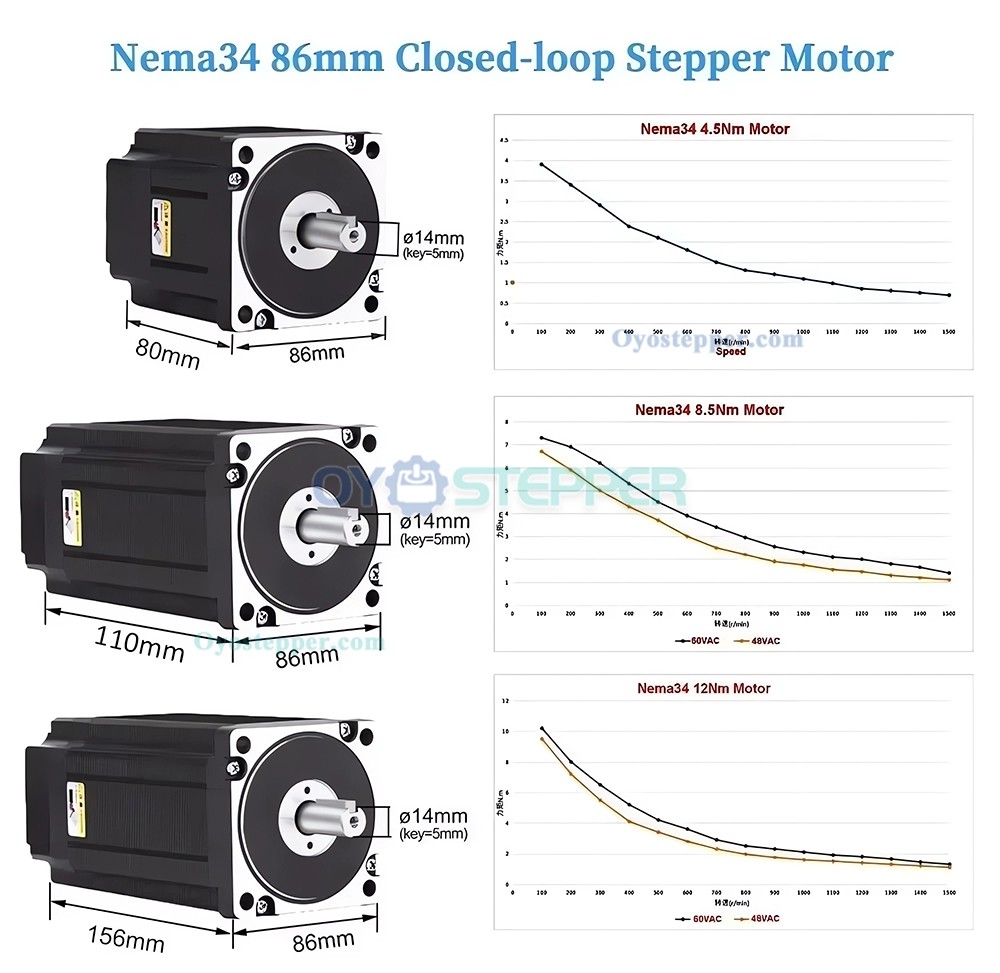

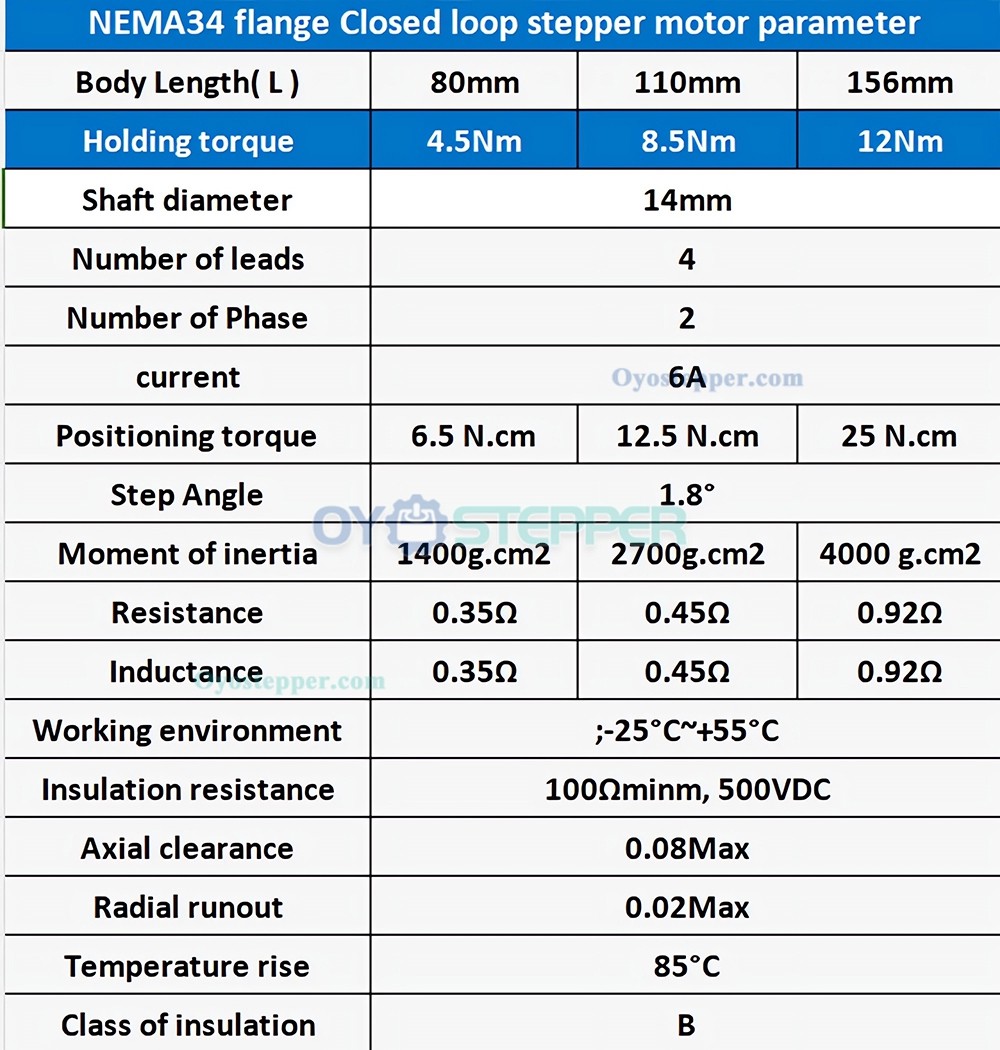

NEMA34 Closed-loop Motor Parameters:

Specification:
1.Flange: NEMA 34 86MM
2.Step angle: 1.8 degree
3.Phase: 2 Phases
4.Hold torque:  4.5/8.5/12Nm
5.Motor Length: 80/110/156MM
6.Rated Speed: 1000RPM
7.Encoder:1000 line
8.Resistance: 0.35/0.45/0.92(ohm)
9.Inductance: 0.35/0.45/0.92mH
10.Class of insulation: B

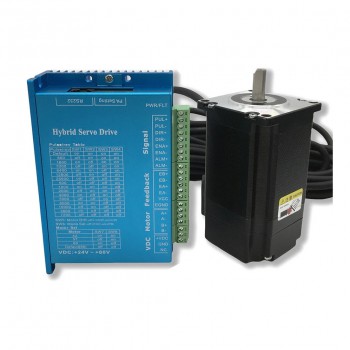

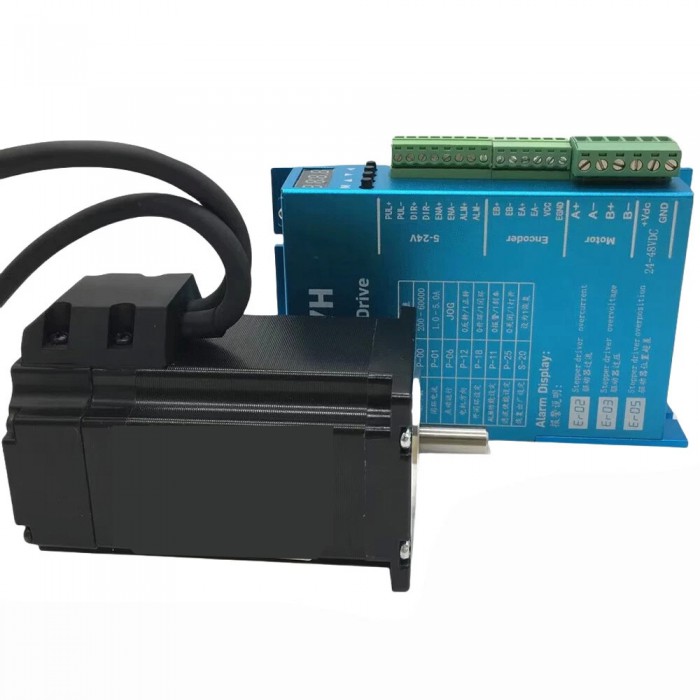

Package List:
1*NEMA34 Closed Loop Stepper Motor
1*HBS86H(for nema34)Driver
1*3M Encoder Cable
1*3M Power Cable;

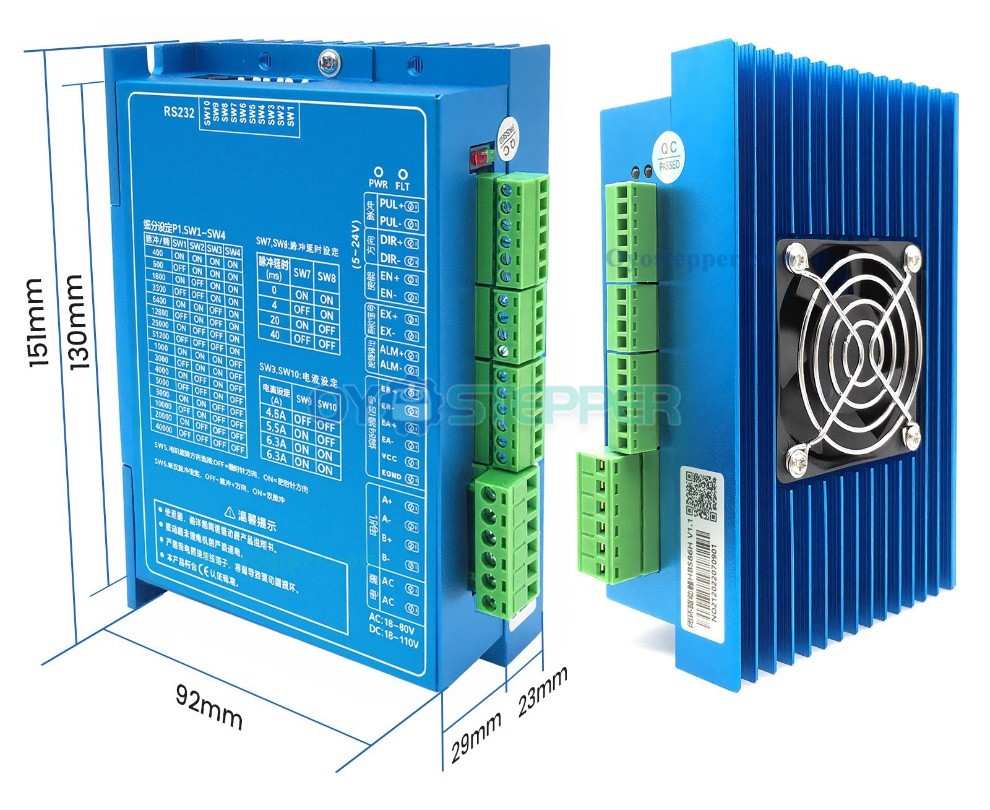

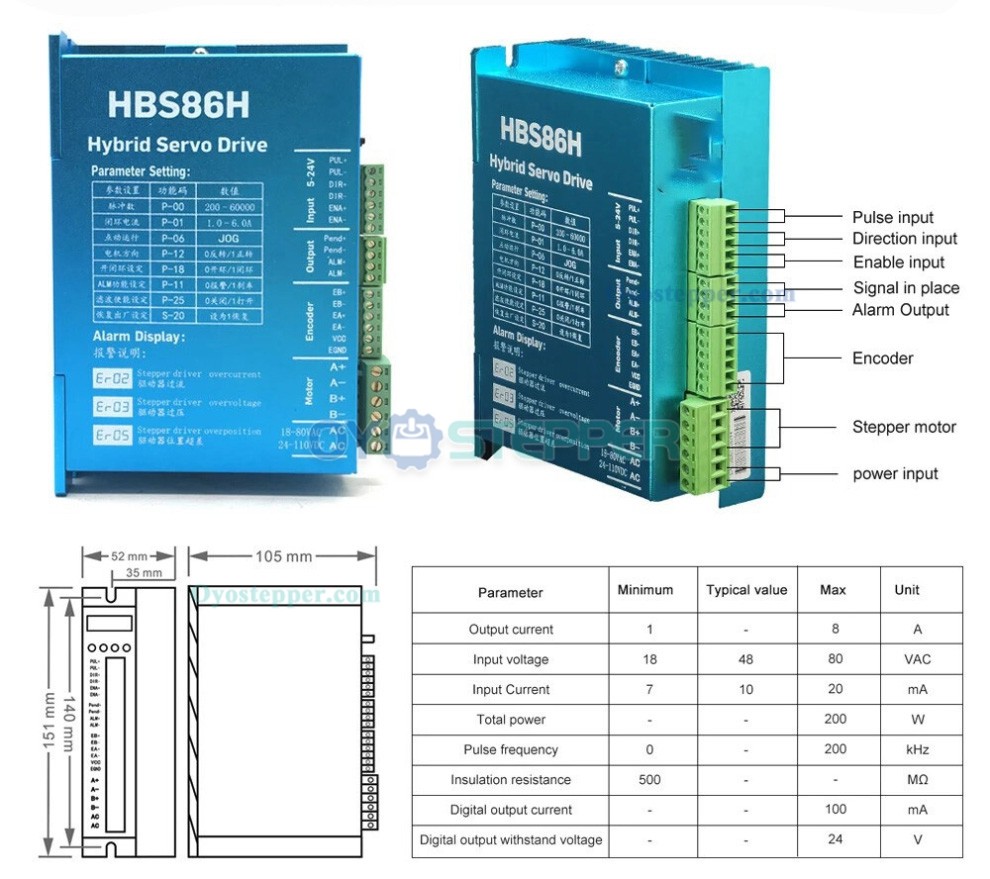

HBS86H Driver functional characteristics:
Model:HBS86H
Type:DSP Closed loop stepper drive
Maximum peak current: 8A
Impulse response frequency:200KHz
Micro-stepping driver:200~51200ppr
Input Voltage:20~80VAC/30-110VDC
Protective function: Over voltage, over current, tracking error, over proof
Signal input: Support PUL/DIR and CW/CCW modes (difference)
Compatible:5~24V signal (Don't need a resistor)
Type of cooling:Air-cooling
Logic Signal Current:7-16 Ma;

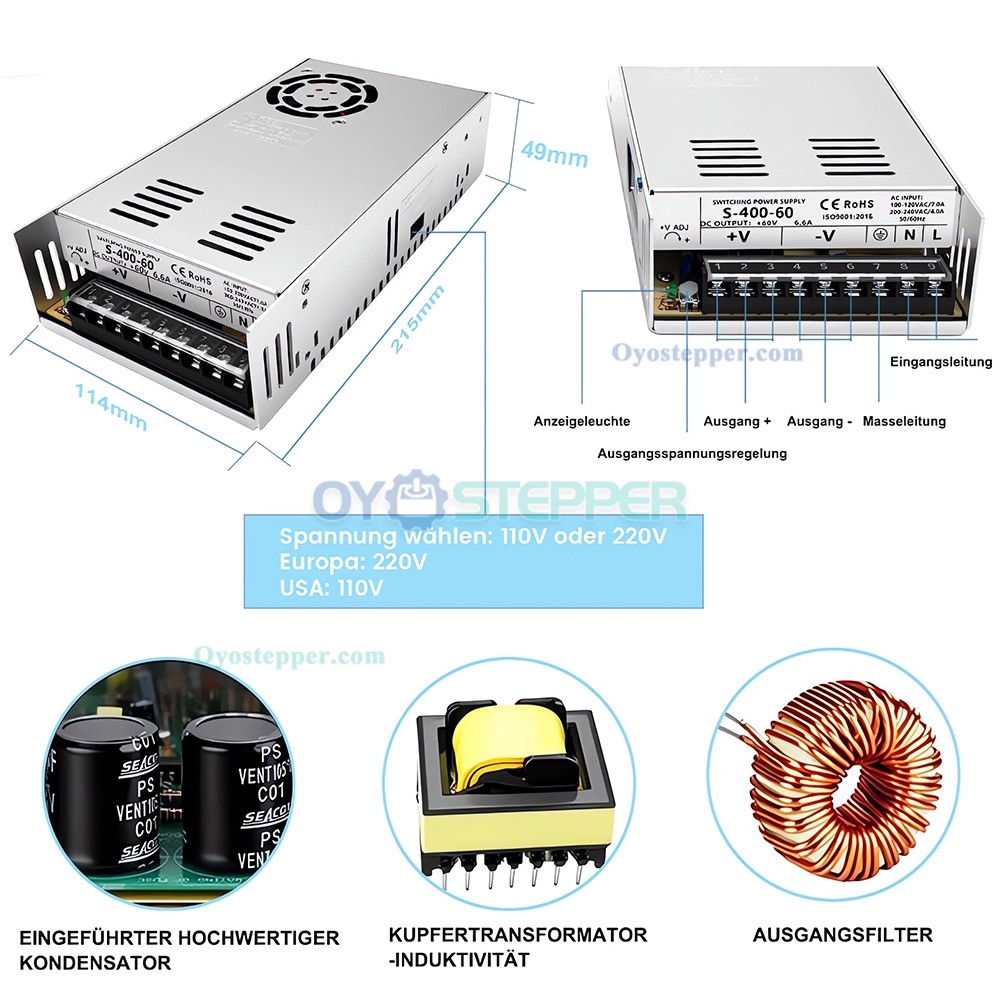

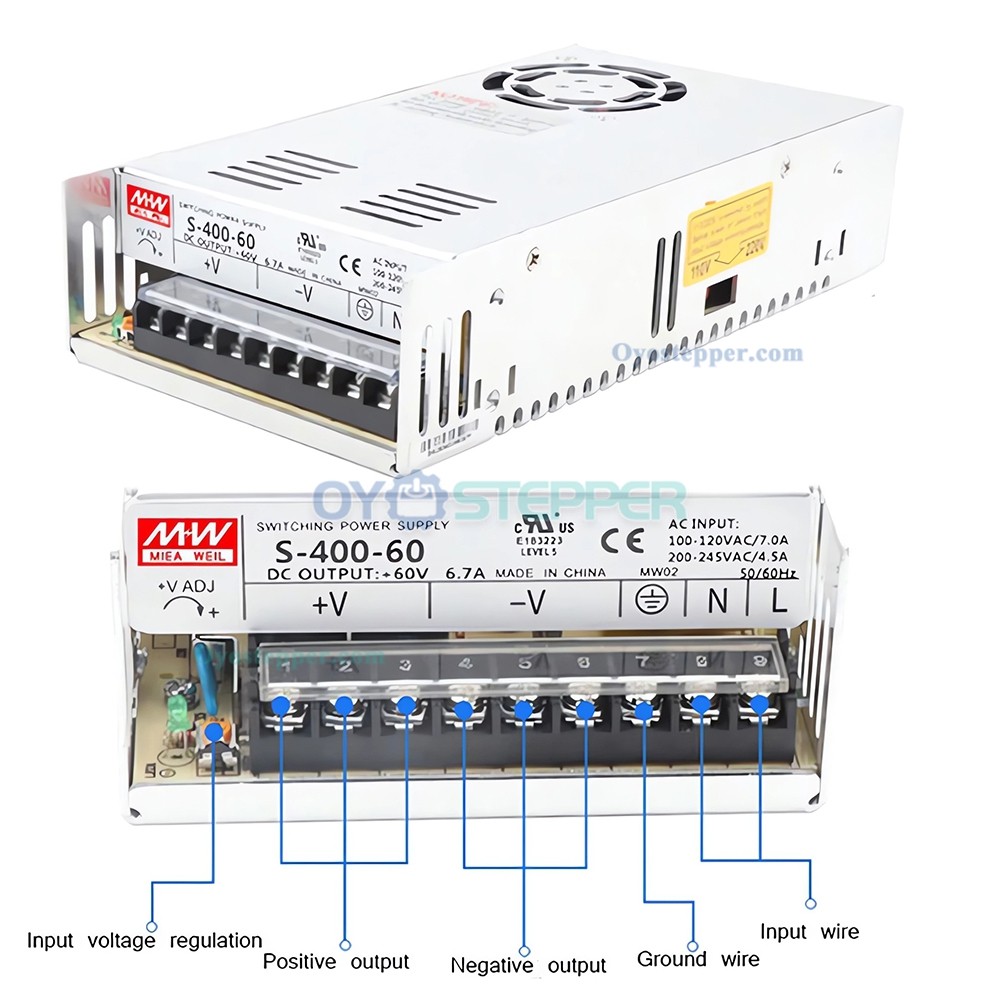

Power Supply parameter:(Option)
Model: S-400-60
Rated Load: 400W (Max Load)
Input Voltage: AC100-120V/200-245VAC 50/60Hz
Output Voltage:DC60V (Constant Voltage)
Output Current:6.6A
Conversion Efficiency:more than 80%
Working temperature:-30~+50°C
IP code:IP20
Cooling type:Fan Cooling (Fan Work With a little noise);
