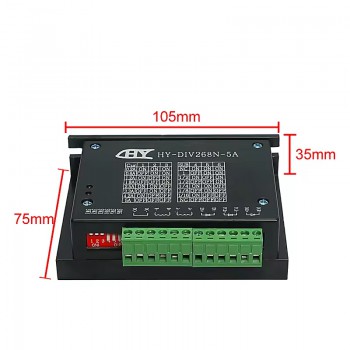

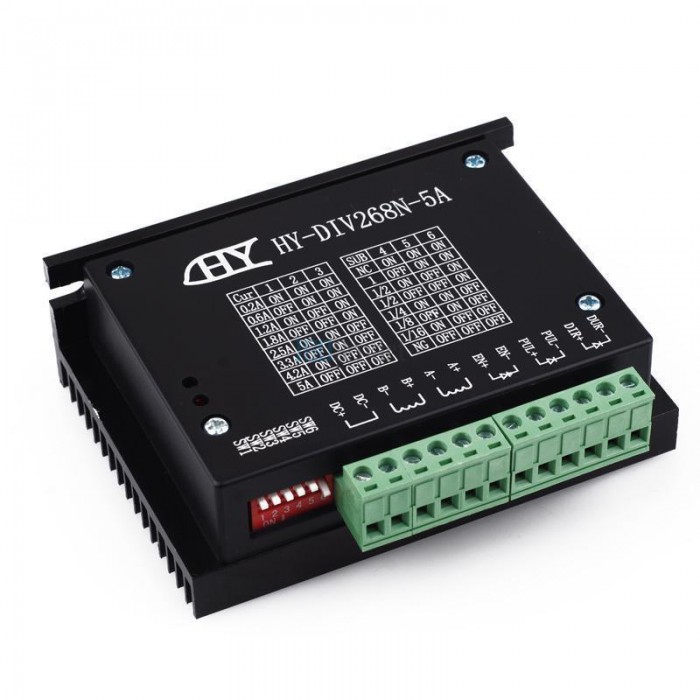

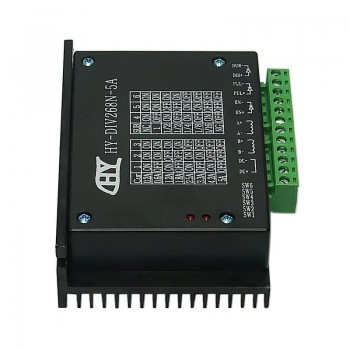

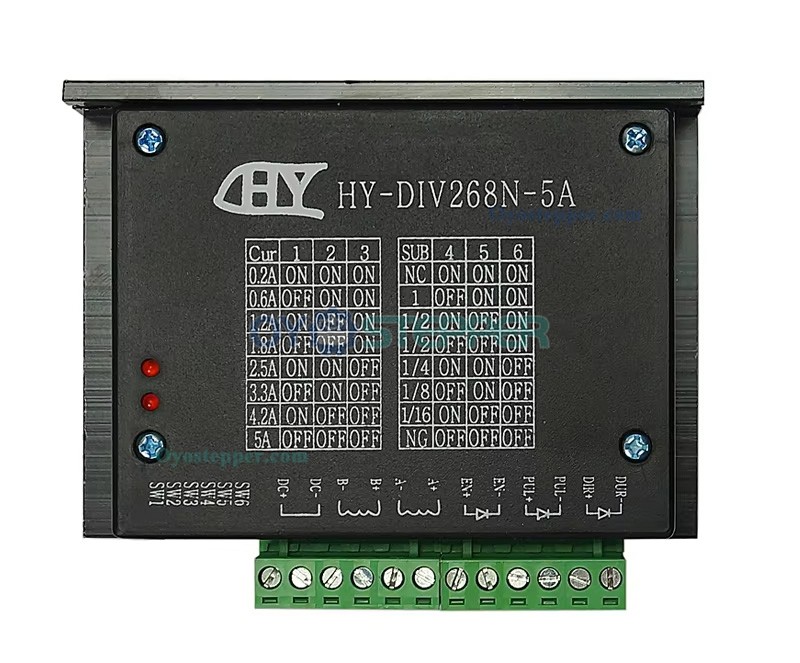

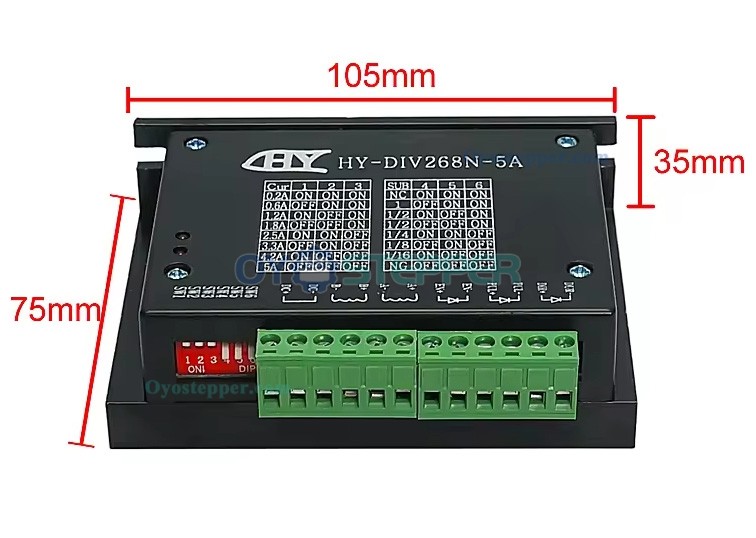

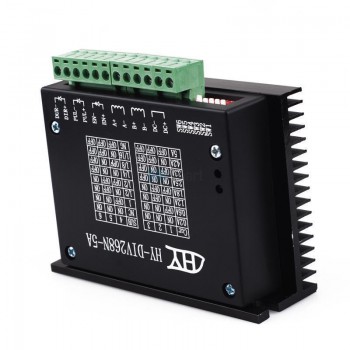

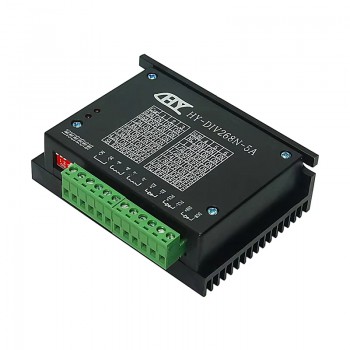

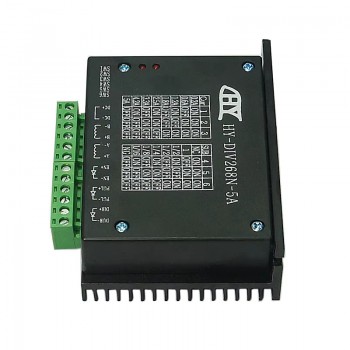

HY-DIV268N-5A 12-48V 0.2-5A Two-Phase Hybrid Stepper Motor Driver Controller

HY-DIV268N-5A 12-48V 0.2-5A Two-Phase Hybrid Stepper Motor Driver Controller

This driver operates two-phase hybrid stepper motors with a supply voltage of DC 12–48V and a current rating below 5A, compatible with motors having an outer diameter of 35–86mm.


Main Features:

Average current control with two-phase sinusoidal output

DC 12-48V power supply; integrated 12V and 5V regulators

Optically isolated signal input

Protections: over-voltage, under-voltage, over-current, and phase-to-phase short circuit


Specifications:

Input Voltage: DC 12–48V

Output Current: 0.2–5A

Operating Temperature: -10 ℃ to 45 ℃

Storage Temperature: -40 ℃ to 70 ℃

Humidity: Non-condensing

Weight: 200g
