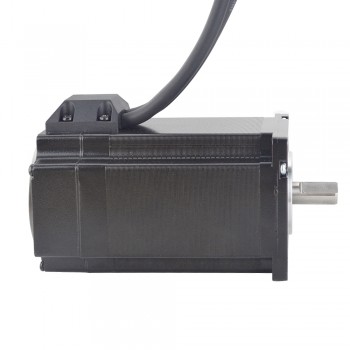

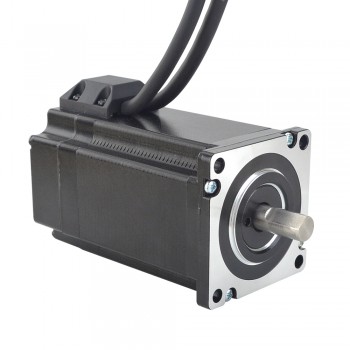

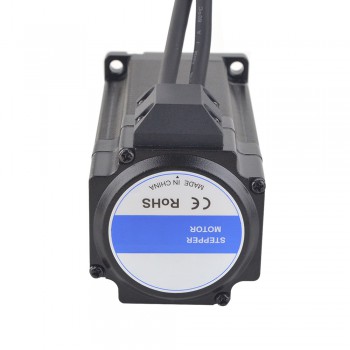

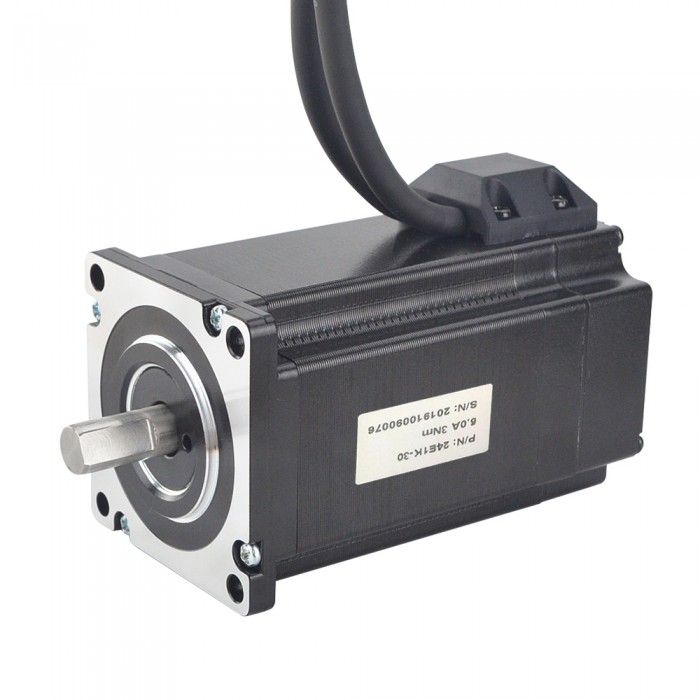

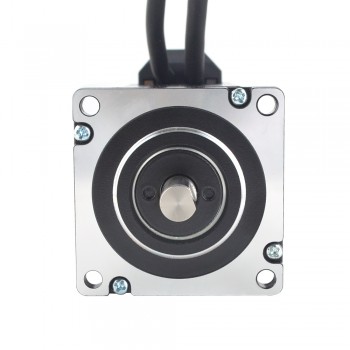

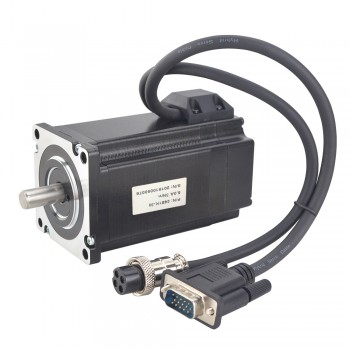

Nema 24 Closed Loop Stepper Motor P Series 1.8 Deg 3Nm 2 Phase 5.0A with Encoder 1000CPR
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$72.05
Electrical Specification
- Manufacturer Part Number: 24E1K-30
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 3 Nm(424.92 oz.in)
- Rated Current/phase: 5.0 A
- Phase Resistance: 0.45 ohms
- Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 60 x 60 mm
- Body Length: 85 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 21 mm
- D-Cut Shaft Length: 15 mm
- Lead Length: 270 mm
- Weight: 1.3 kg
Encode Control(1000CPR)
- 3--GND
- 2--+5VCC
- 13--EA-
- 1--EA+
- 12--EB-
- 11--EB+
Connection
|
A+
|
A-
|
B+
|
B-
|
|
White
|
Green
|
Blue
|
Black
|
Resources
- Full Datasheet: 24E1K-30.pdf
- Torque Curve: 24E1K-30 Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 300 |
| Holding Torque (oz.in) | 424.92 |
| Inductance(mH) | 1.8 |
| Lead Length(mm) | 270 |
| Motor Nema Size | Nema 24 |
| Phase Resistance(ohm) | 0.45 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 10 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
