Nema 8 External Linear Stepper Motor Bipolar 1.8 Deg 0.24A 5V Lead Revolution 2mm/0.07874" Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$104.65

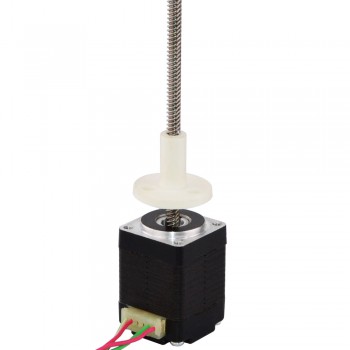

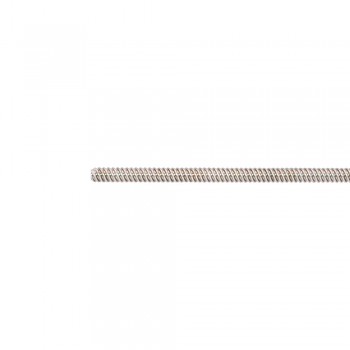

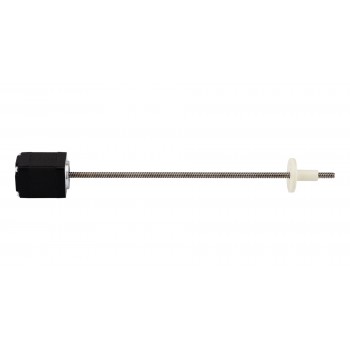

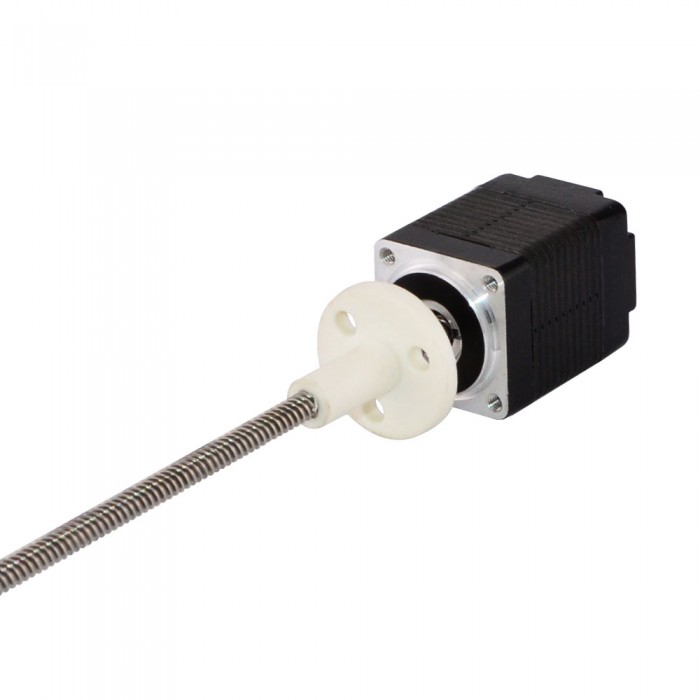

The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it has integrated with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 2mm (0.07874") per revolution.
Electrical Specification
Manufacturer Part Number: 8LS11-0244AC-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 33N (300pps)
Rated Current/phase: 0.24A
Phase Resistance: 20.4ohms
Voltage: 5V
Inductance: 3.88mH±20%(1KHz)
Physical Specification
Frame Size: 20 x 20mm
Body Length: 30mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ3.5mm(0.1378")
Lead/Step: 0.01mm(0.0003937")
Lead Travel/Revolution: 2mm(0.07874")
Number of Leads: 4
Lead Length: 300mm
Weight: 43g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 3.83 |
| Minimal Thrust(N) | 33 |
| Motor Type | External |
| Phase Resistance(ohm) | 21.3 |
| Rated Current (A) | 0.24 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 30 |
| Lead Screw Diameter(mm) | 3.5 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 2 |
| Linear Travel / Step(mm) | 0.01 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 08 (20 x 20) |
