ATC BT30 Spindle Motor Automatic Tool Change 6000rpm with Cylinder Kit for CNC Router Machine

ATC BT30 Spindle Motor Automatic Tool Change 6000rpm with Cylinder Kit for CNC Router Machine

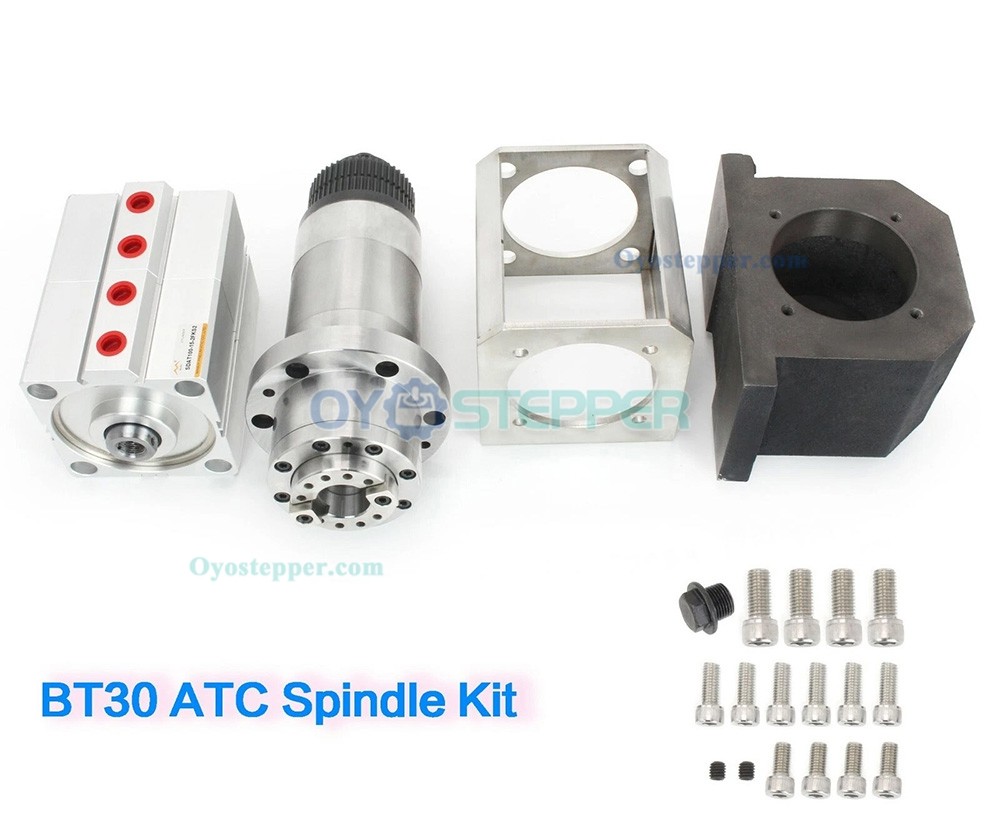

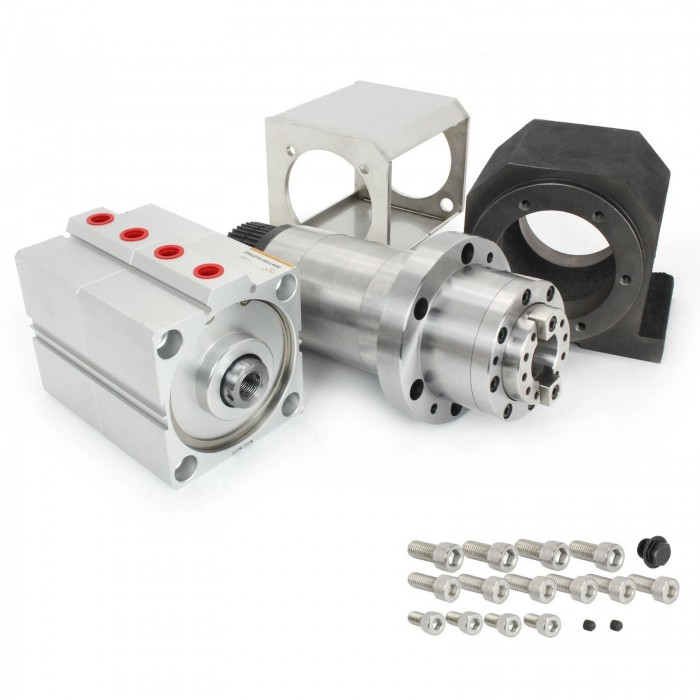

This is a mechanical spindle unit with automatic tool change kit. It contains a BT30 spindle unit, an air boosting cylinder, and a bracket. The kit is designed to be compatible with various motors and operates without an integrated cooling system.

Specification:
Model: BT30-90
Taper:BT30
Speed:6000rpm
Accuracy:0.008/300mm
Cooling methods:No cooling required
Air pressure: 0.4-0.6mpa

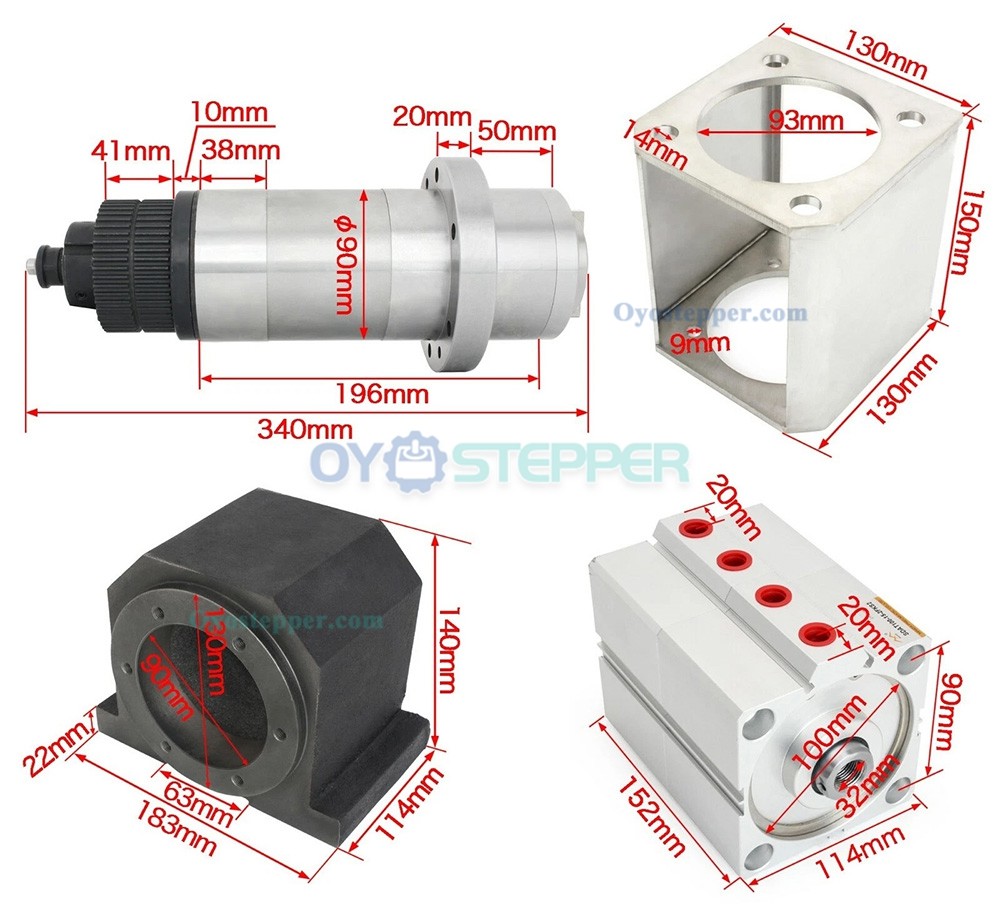

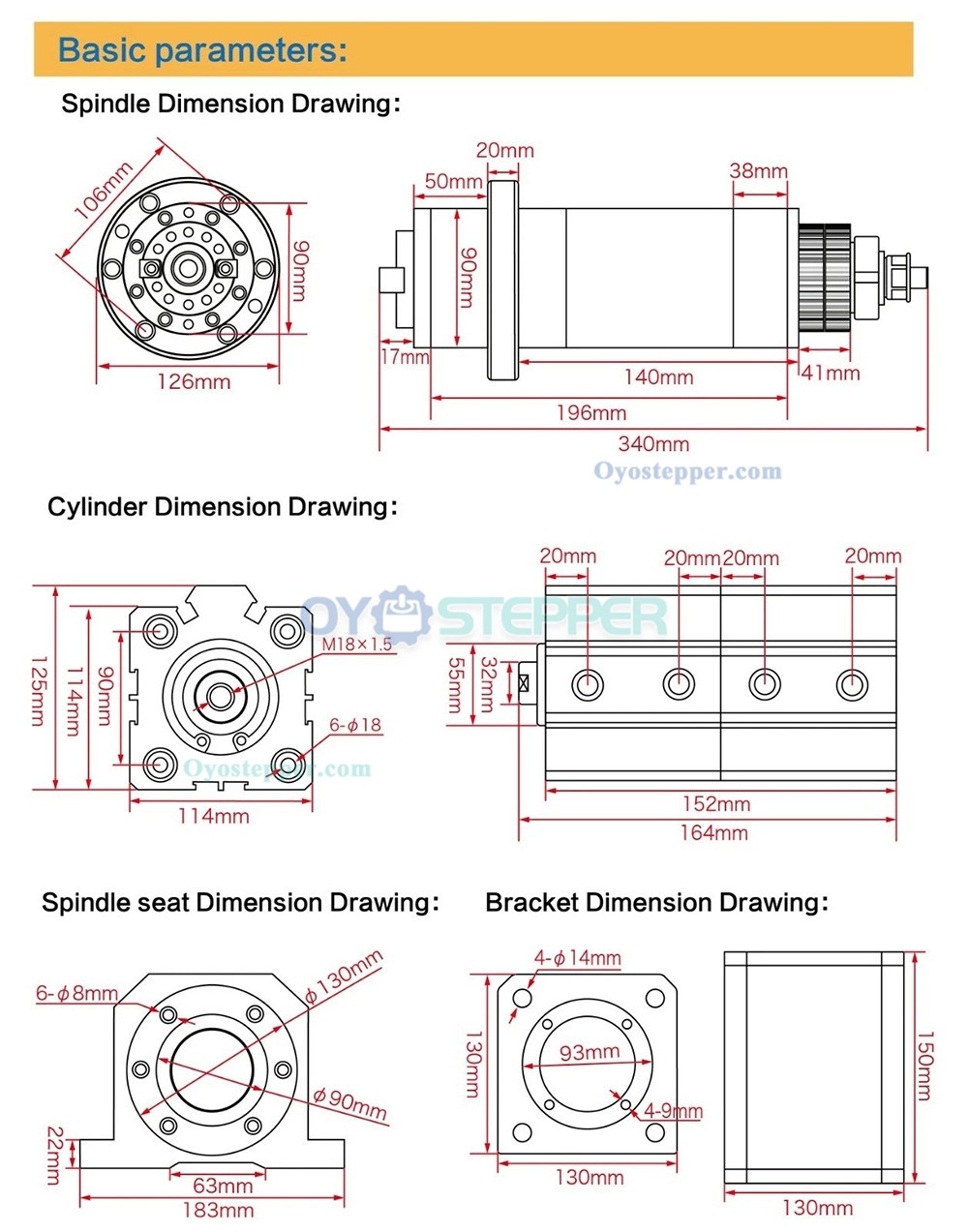

Outside diameter:90mm
Shaft material:Alloy steel 20CrMnTi
Bearings:5Pcs P4 steel bearings
