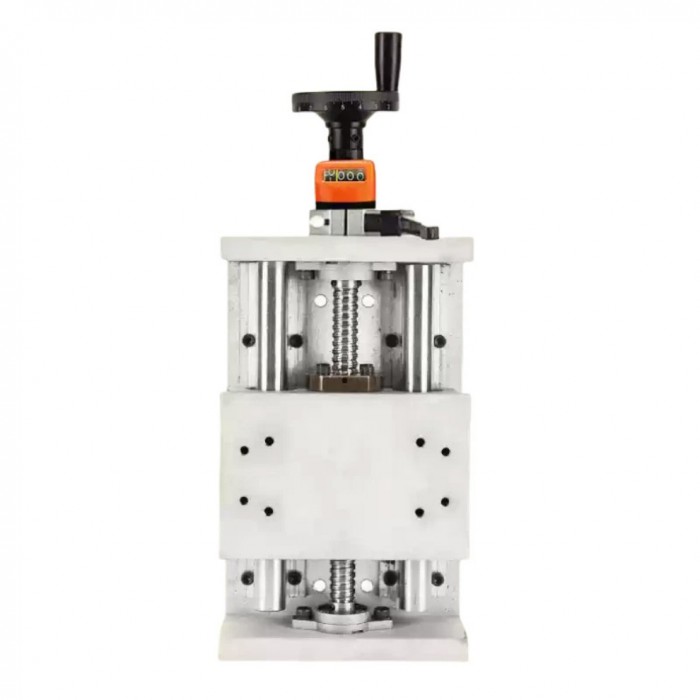

Manual Linear Rail Slide Table 150mm Width 1605 Ball Screw Handwheel 150mm CNC Actuator

Features:

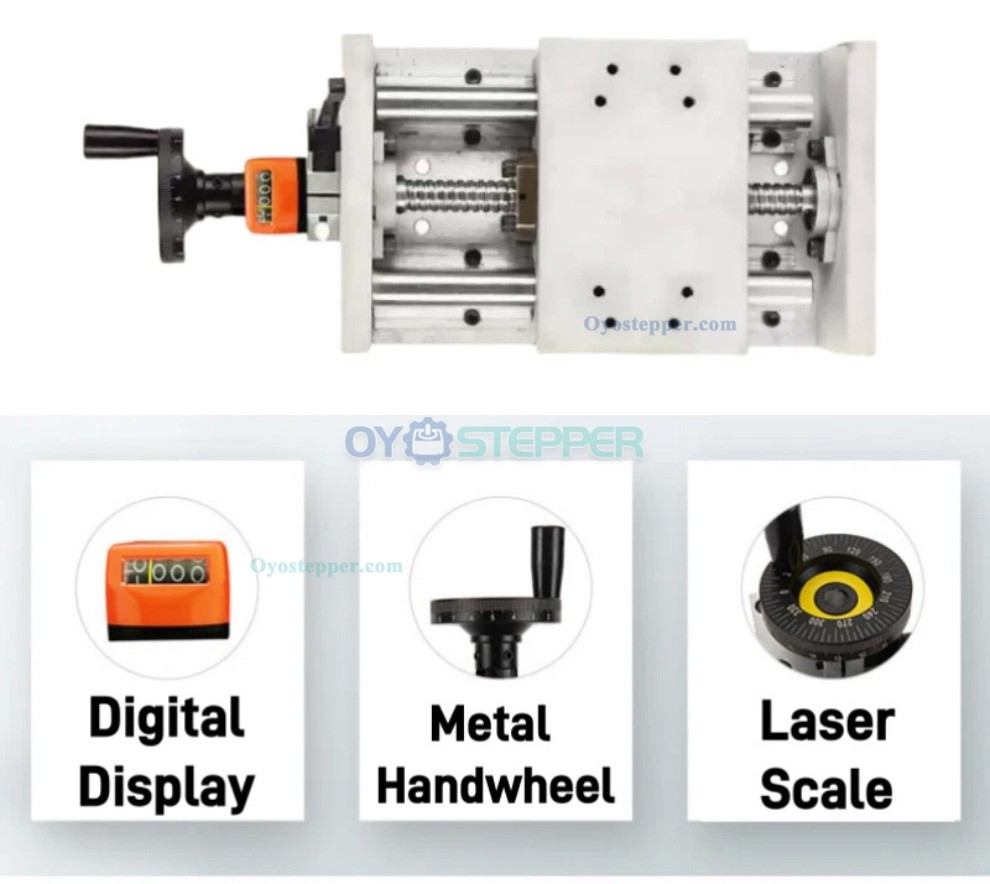

Manual Handwheel Operation: Allows manual control of linear movement.
1605 Ball Screw: 16mm screw diameter with a 5mm lead.
Dual Linear Guide Shafts: Double-shaft guide structure for linear motion.
Aluminum Alloy Construction: Metal frame and slide table.

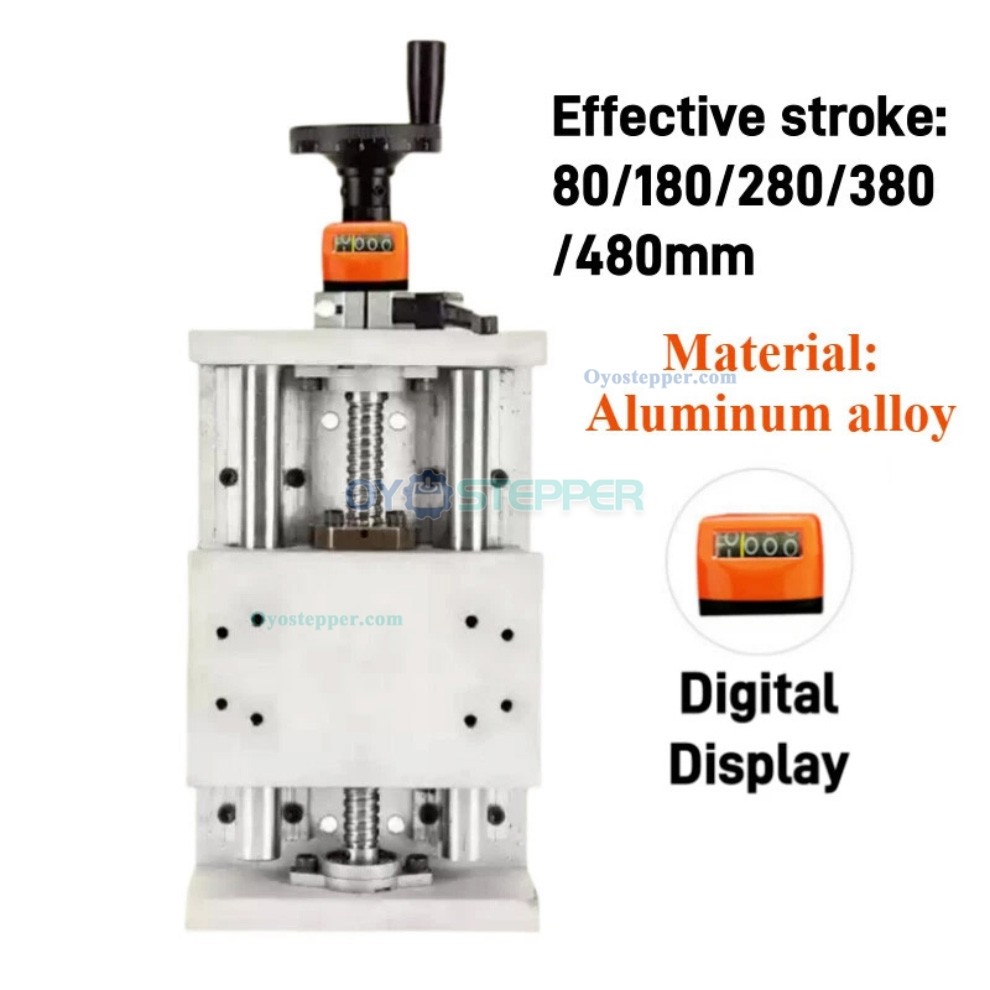

Multiple Travel Options: Available in different stroke lengths.

Technical Specifications:
Type: Manual Linear Slide Table
Drive System: 1605 Ball Screw
Operation: Manual Handwheel
Guide Type: Dual Round-Shaft Linear Guides
Ball Screw Diameter: 16mm
Ball Screw Lead: 5mm

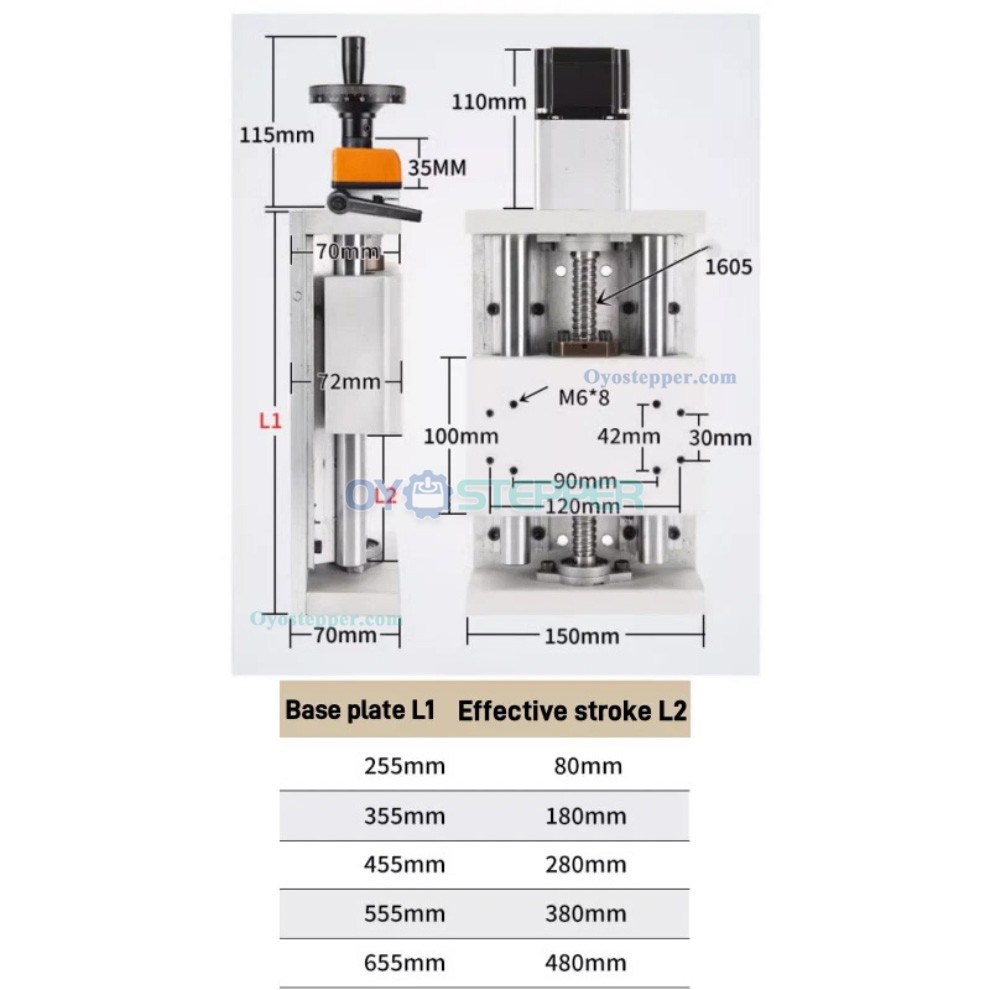

Table Width:150mm
Maximum Horizontal Load: 100kg
Maximum Vertical Load: 30kg
Material: Aluminum Alloy

Package Includes:
1 × Manual Linear Slide Table
