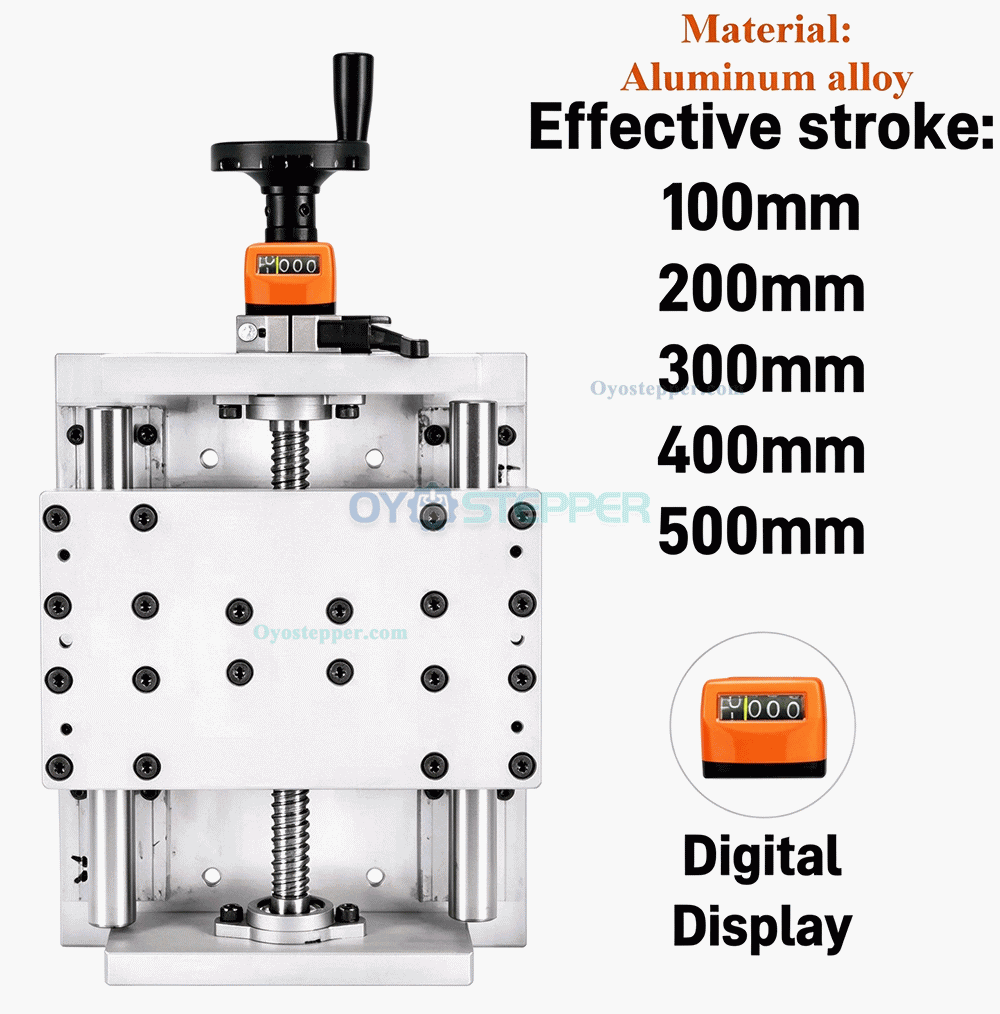

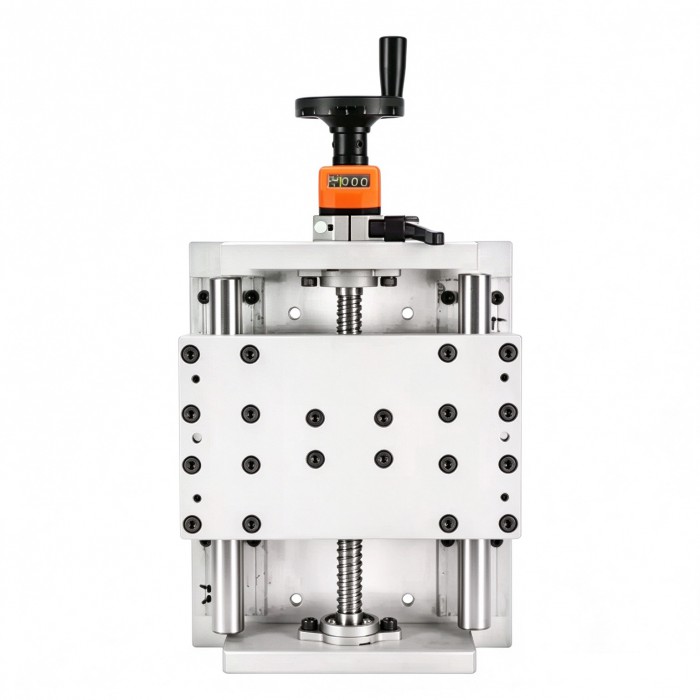

Manual Linear Rail Slide Table 200mm Width 1605 Ball Screw Handwheel Actuator
Features:

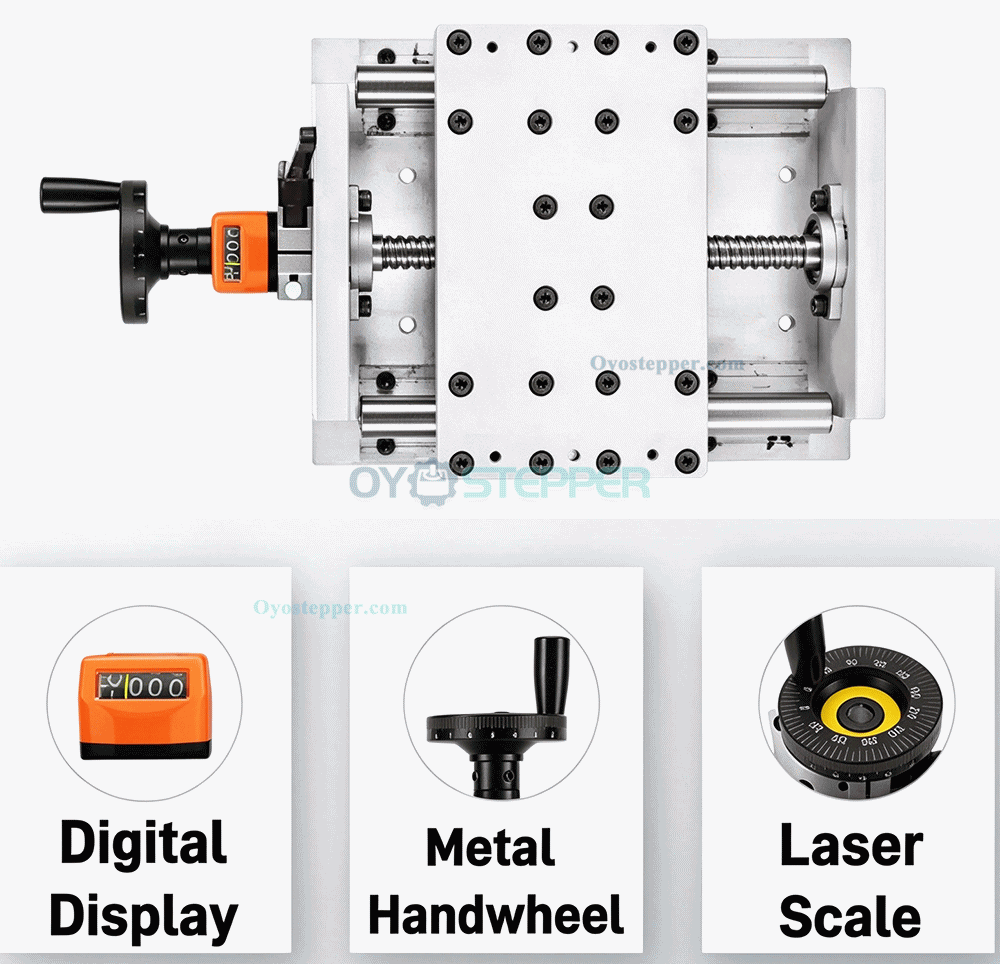

Manual Handwheel Control: Adjusts the slide table position through manual rotation.
1605 Ball Screw: 16mm screw diameter with a 5mm lead.

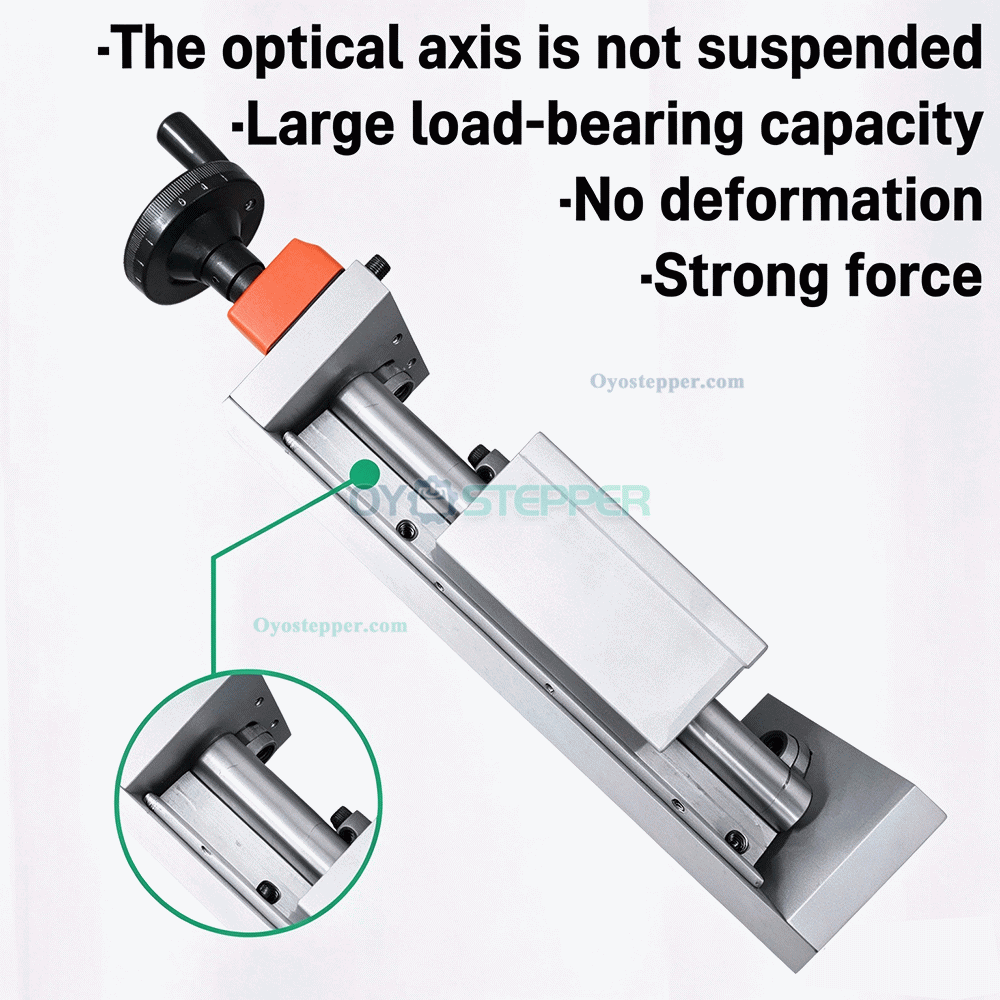

Dual Linear Guide Shafts: Double-shaft guidance for linear movement.
Aluminum Alloy Construction: Metal slide table structure.
200mm Table Width: Used for mounting and positioning applications.
Multiple Stroke Options;
Technical Specifications:
Type: Manual Linear Slide Table
Drive System: 1605 Ball Screw
Operation: Manual Handwheel
Guide Rail Type: Dual Round-Shaft Linear Guide
Ball Screw Diameter: 16mm
Ball Screw Lead: 5mm

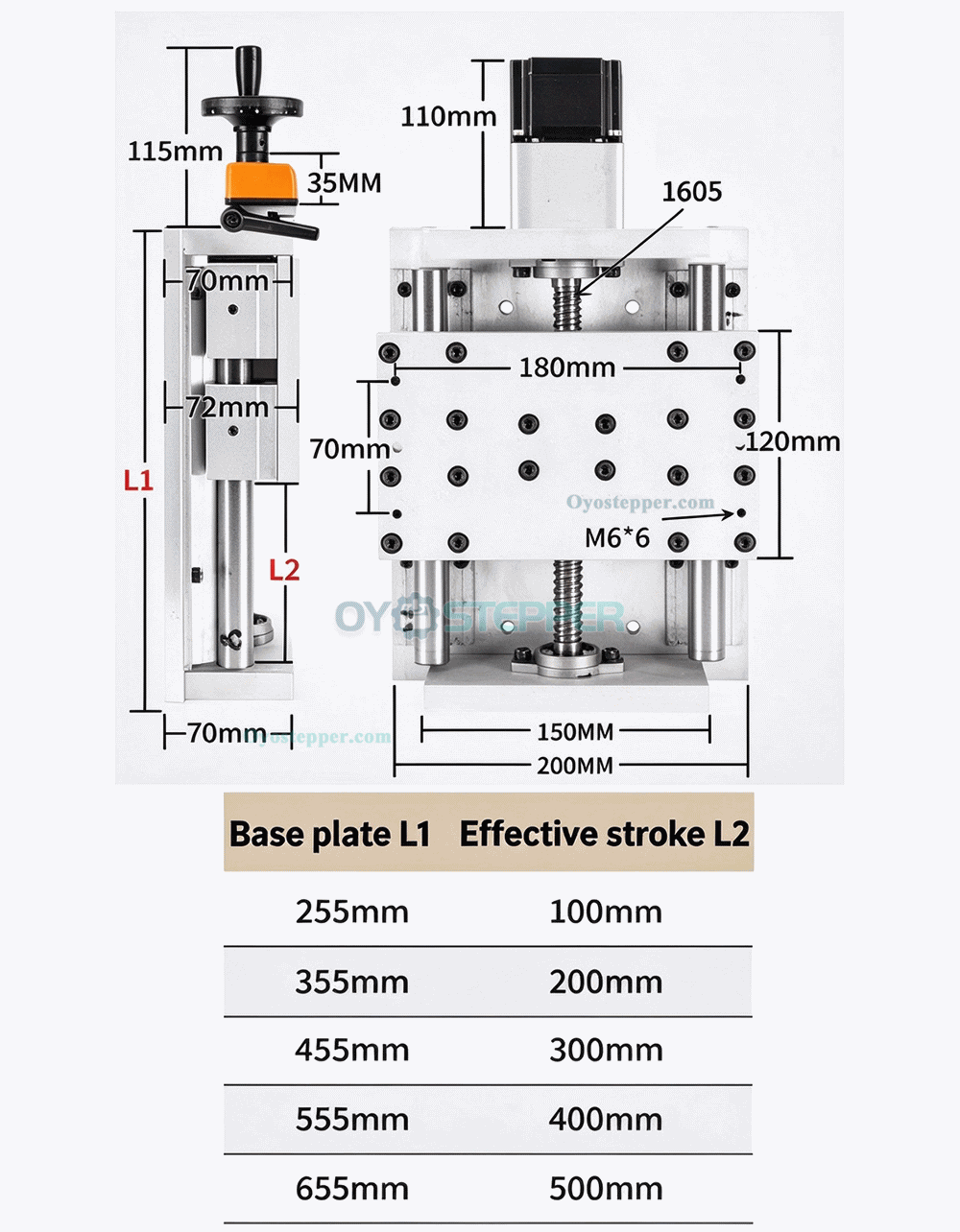

Table Width: 200mm
Maximum Horizontal Load: 100kg
Maximum Vertical Load: 30kg
Material: Aluminum Alloy
Package Includes:
1 × Manual Linear Slide Table
