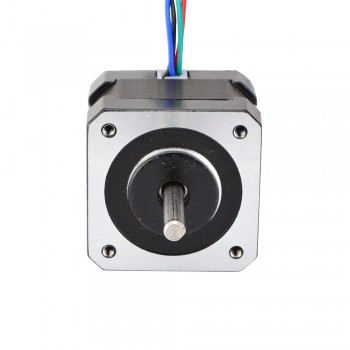

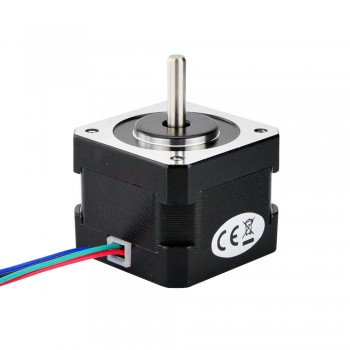

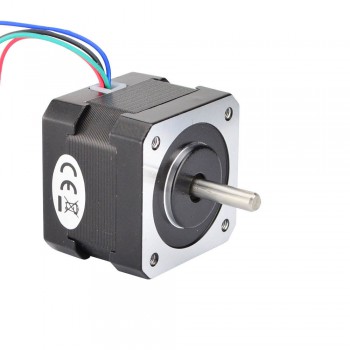

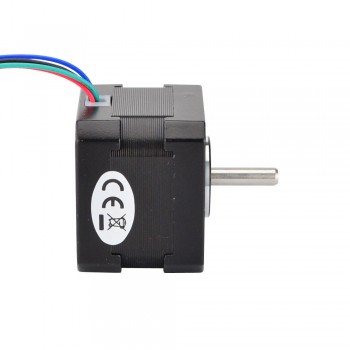

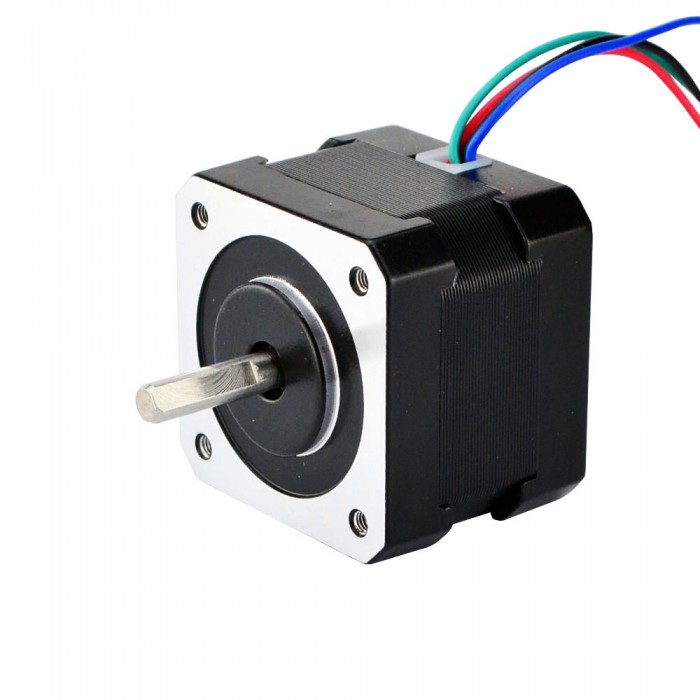

Nema 17 Stepper Motor Bipolar 1.8 deg 26Ncm (36.8oz.in) 0.4A 12V 42x42x34mm 4 Wires(17HS13-0404S)
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
This bipolar Nema 17 stepper motor is one of the most popular model, it with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 0.4A at 12V, with holding torque 26Ncm (36.8oz.in).
Electrical Specification
- Manufacturer Part Number: 17HS13-0404S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 26Ncm(36.8oz.in)
- Rated Current/phase: 0.4A
- Voltage: 12V
- Phase Resistance: 30ohms
- Inductance: 37mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Shaft Diameter: Φ5mm
- Front Shaft Length: 20mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 230g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HS13-0404S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 26 |
| Holding Torque (oz.in) | 36.8 |
| Inductance(mH) | 37 |
| Phase Resistance(ohm) | 30 |
| Rated Current (A) | 0.4 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 280 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
Olivier Lopez Ch – 28 Nov 2017
Good and cheap.Works as expected
nckuck – 09 Aug 2017
No problems in getting this stepper to work. Has plenty of torque.
Kevin Coleman – 27 Jun 2017
I'm using this stepper with an Arduino and a DRV8825 Stepper driver. Works great. Make sure everything is grounded correctly and you will have no problems.
Marie B. – 20 Jun 2017
Perfect little stepper motor. Works well with arduino and other plc controls. This motor worked very well for testing circuits and coding before utilizing a bigger motor for an industrial application. No complaints!
Vamp – 29 Apr 2017
I like the product, unfortunately it was a little slower than what I needed. I was only able to get about 80 rpm... I had difficulty finding a max speed for "any" stepper motor but that would be a nice detail to provide.
