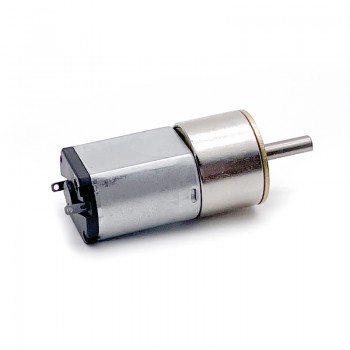

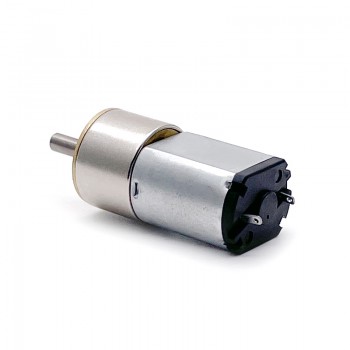

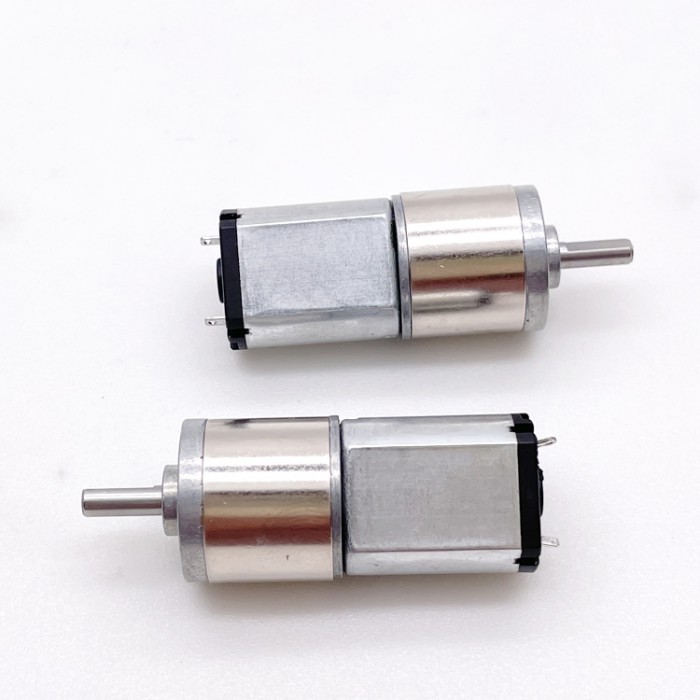

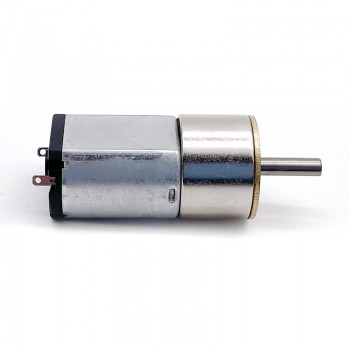

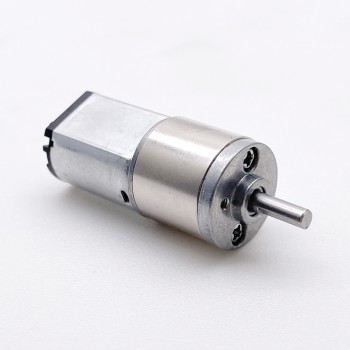

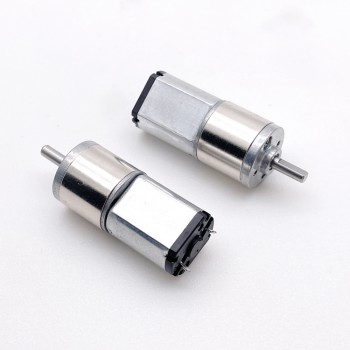

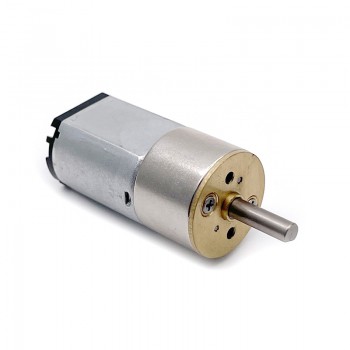

2Pcs 6V 12V Brushed DC Gear Motor with Spur Gear 0.5kg.cm Small Electric DC Gear Motor
Features:
1.Small size dc gear motor with low speed and big torque
2.16mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big torque application
4.Reduction Ratio: 10、17、20、35、63、86、115、150、250、360
Application:
BOAT, Car, Electric Bicycle, Home Appliance, Industrial equipment.

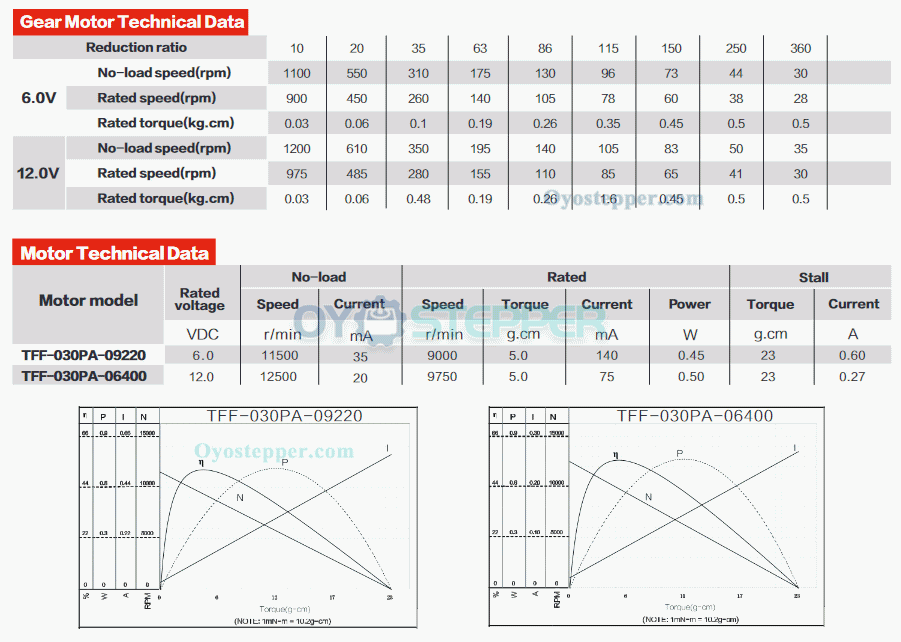

Electrical Specification：
Part Number:GM16-050SH
Rated Power:0.45(6V)/0.5W(12V)
Rated Speed:28-975rpm
Rated Voltage:6/12 VDC
Continuous Current(A):75-200mA
No-load speed:30-1200rmp
No-load current:20mA-35mA
Rated Torque:0.5Kg.cm
Gearbox Type:Spur gearbox
Average Backlash no load:<3°
Reduction ratio:10、17、20、35、63、86、115、150、250、360
Efficiency:65%
Noise:30cm.40-50db

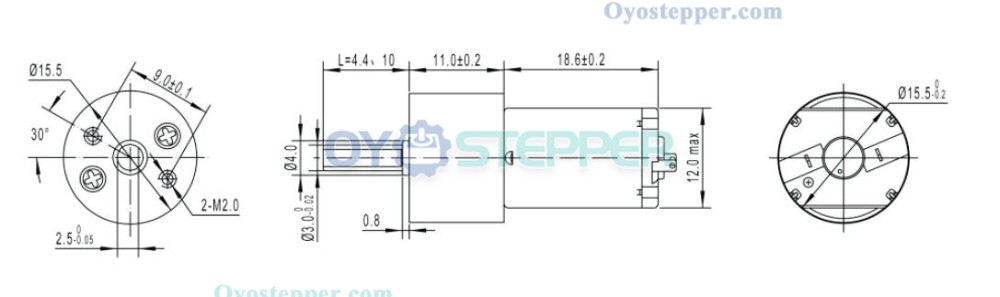

Physical Specification:
Motor Size:12*18.6mm
Gearbox size:15.5*11mm
Length:29.6mm
Shaft Diameter:3mm
Shaft Length: 4.4mm
Weight:16g;
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

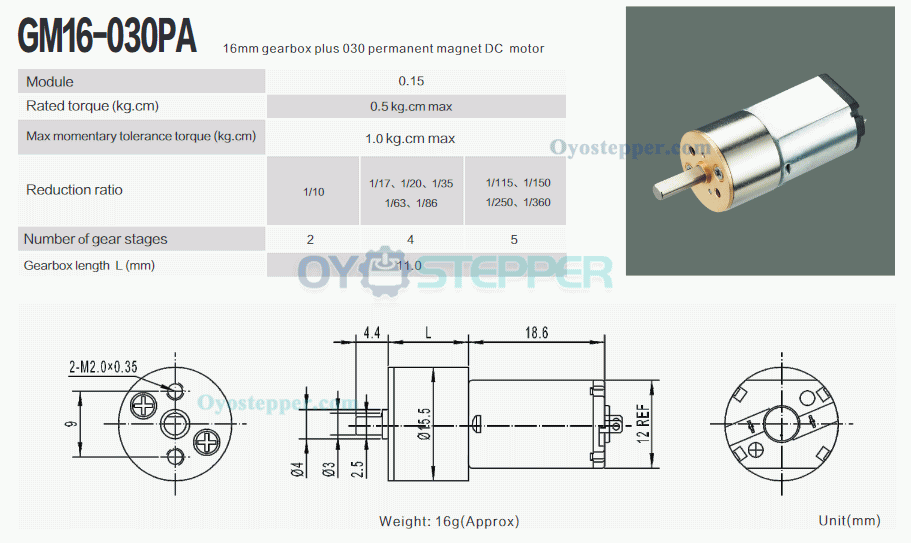

| Physical Specification | |
|---|---|
| Frame Size(mm) | Φ15.5 |
| Shaft Diameter(mm) | 3 |
| Gearbox Length(mm) | 11 |
| Gear Ratio | 250:1 / 360:1 / 150:1 / 86:1 / 63:1 / 35:1 / 10:1 / 17:1 / 20:1 / 115:1 |
| Body Length(mm) | 18.6+gearbox |
| Weight(g) | 16 |
| Shaft Length(mm) | 3.6 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Gearbox Type | Spur gearbox |
| Electrical Specification | |
| Rated Power(W) | 0.45 / 0.5 |
| Rated Torque(kg.cm) | 0.5 |
| Rated Speed(rpm) | 38-3250 |
| Rated Voltage(V) | 12 / 6 |
| Rated Current (A) | 0.075 / 0.14 |
