OK63ZLF125-220B Double Axis Brushless DC Motor 59.68 Ncm 24V 125W 2000RPM

OK63ZLF125-220B Double Axis Brushless DC Motor 59.68 Ncm 24V 125W 2000RPM


Electrical Specifications:
Model: OK63ZLF125-220B
Motor Type: Brushless DC Motor
Rated Voltage: 24VDC
Rated Torque: 59.68 Ncm (84.51 oz.in)
Rated Power: 125W
Rated Speed: 2000 RPM
No-Load Speed:2600 RPM
Rated Current: 8.5A
No-Load Current: 1.1A

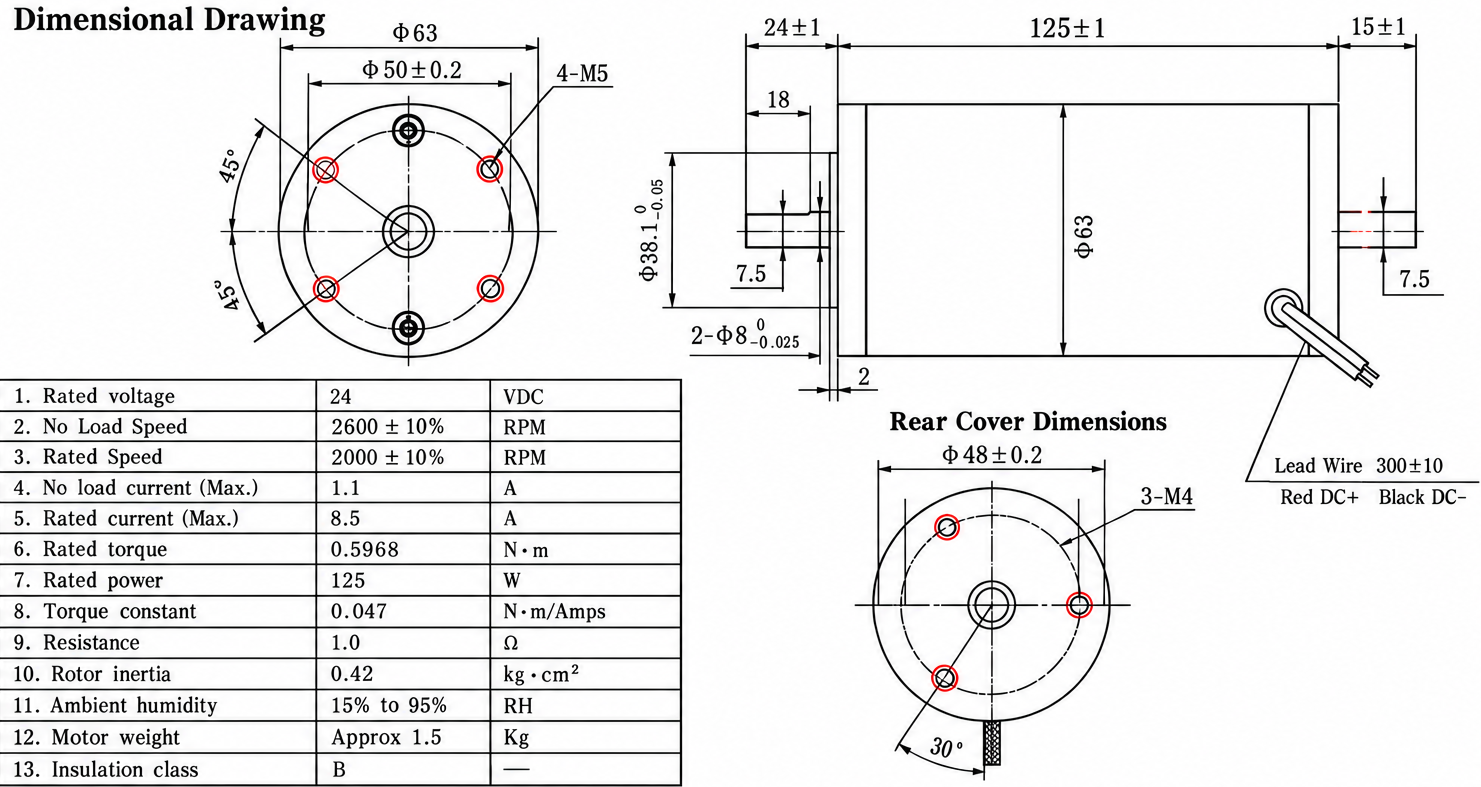

Physical Specifications:
Motor Body Diameter: Ø63 mm
Motor Body Length: 125 mm
D-Cut Length: 18 mm
Front Shaft Diameter: Ø8 mm
Front Shaft Length: 24 mm
Rear Shaft Length: 15 mm
Rear Shaft Diameter: Ø7.5mm
Mounting Flange Diameter: Ø50 mm
Mounting Holes: 4 × M5
Lead Wire Length: 300 mm
Weight: Approx. 1.5 kg
Insulation Class: B
