Nema 14 Stepper Motor Bipolar 0.9 Deg 5Ncm (7.08oz.in) 0.5A 5V 35x35x20mm 4 Wires
Special Offer in May 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$15.92
Nema 14 Stepper Motor Bipolar 0.9 deg 5Ncm (7.08oz.in) 0.5A 5V 35x35x20mm 4 Wires

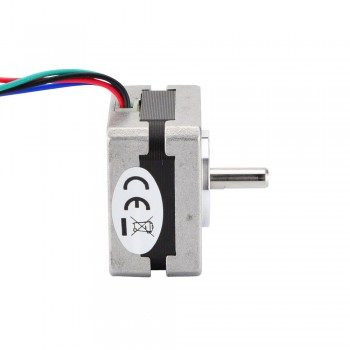

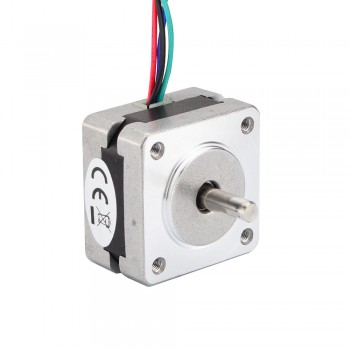

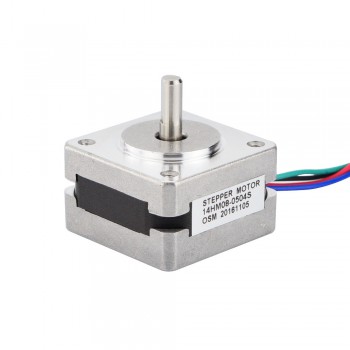

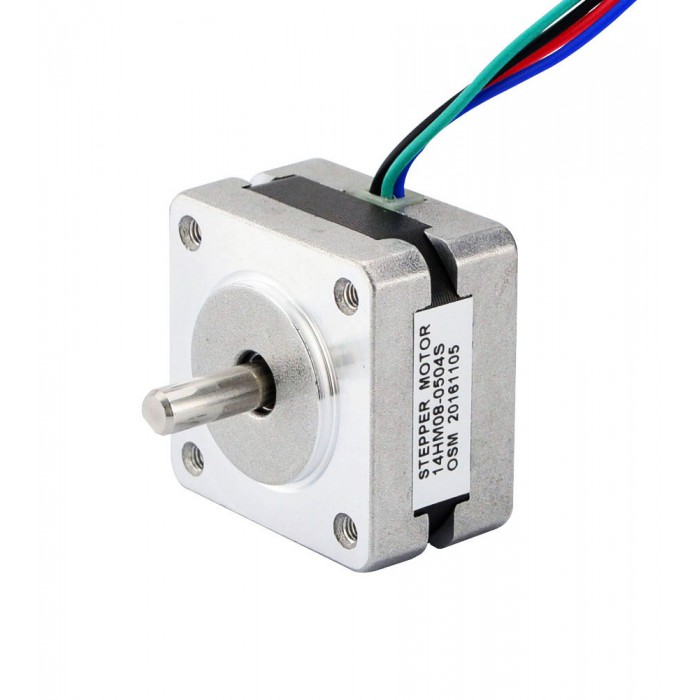

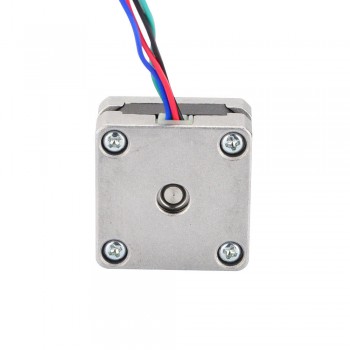

This bipolar Nema 14 stepper motor with step angle 0.9deg and size 35x35x20mm. It has 4 wires, each phase draws 0.5A, with holding torque 5Ncm (7.08oz.in).
Electrical Specification
- Manufacturer Part Number: 14HM08-0504S
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 5Ncm(7.08oz.in)
- Rated Current/phase: 0.5A
- Voltage: 5V
- Phase Resistance: 10ohms
- Inductance : 8.2mH ± 20%(1KHz)
Physical Specification
- Frame Size: 35 x 35mm
- Body Length: 20mm
- Shaft Diameter: Φ5mm
- Shaft Length: 15mm
- D-cut Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 100g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 14HM08-0504S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 5 |
| Holding Torque (oz.in) | 7.08 |
| Inductance(mH) | 8.2 |
| Phase Resistance(ohm) | 10 |
| Rated Current (A) | 0.5 |
| Step Angle(°) | 0.9 |
| Physical Specification | |
| Body Length(mm) | 20 |
| Frame Size(mm) | 35x35 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 15 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 90 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
