Nema 14 Stepper Motor Bipolar High Torque 1.8 Deg 18Ncm (25.5oz.in) 0.8A 5.74V 35x35x34mm 4 Wires

Nema 14 Stepper Motor Bipolar High Torque 1.8 Deg 18Ncm (25.5oz.in) 0.8A 5.74V 35x35x34mm 4 Wires
NO.:14HS13-0804S
Review: Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$12.53
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $11.90 5%
30 $11.65 7%
50 $11.28 10%
100 $10.90 13%
Add To Cart

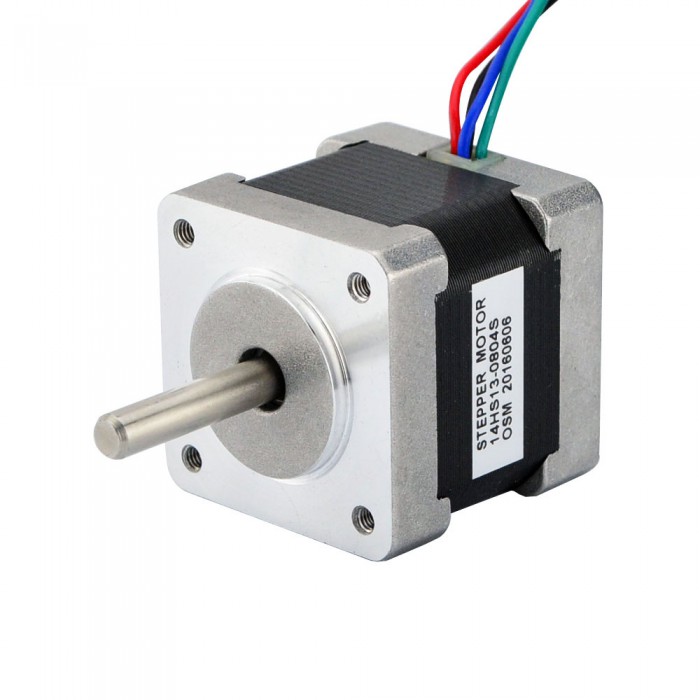

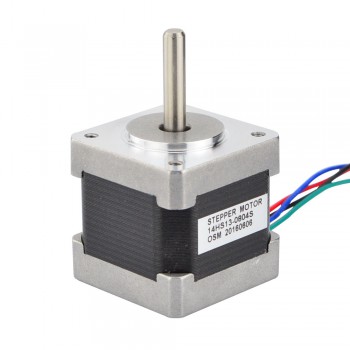

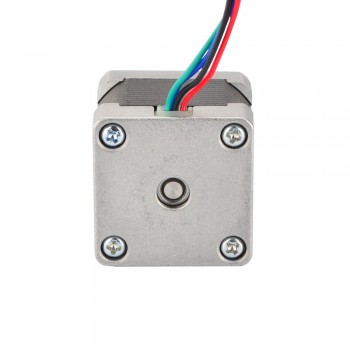

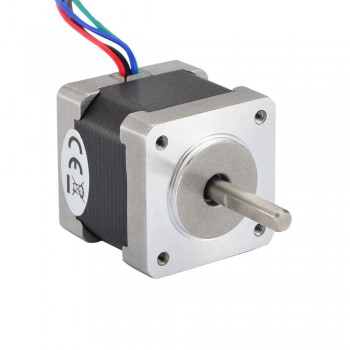

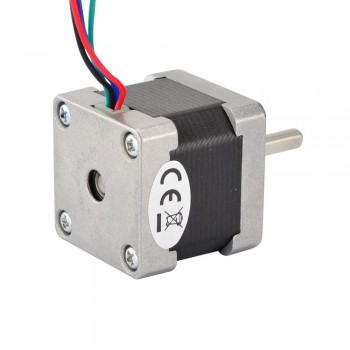

Nema 14 Stepper Motor Bipolar High Torque 1.8 deg 18Ncm (25.5oz.in) 0.8A 5.74V 35x35x34mm 4 Wires



This bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x34mm. It has 4 wires, each phase draws 0.8A at 5.4V, with holding torque 18Ncm (25.5oz.in).



Electrical Specification

Manufacturer Part Number: 14HS13-0804S

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 18Ncm(25.5oz.in)

Rated Current/phase: 0.8A

Voltage: 5.4V

Phase Resistance: 6.8ohms

Inductance : 10mH ± 20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 34mm

Shaft Diameter: Φ5mm

Shaft Length: 24mm

D-cut Length: 16.5mm

Number of Leads: 4

Lead Length: 400mm

Weight: 190g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 14HS13-0804S.pdf

Torque Curver: 14HS13-0804S Torque Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Bipolar 1.8 Degree 12.5Ncm (17.7oz.in) 1A 3.5V 35x35x28mm 4 Wires
Next: Nema Size 14 Stepper Motor Unipolar 1.8 Deg 10Ncm (14.16oz.in) 0.4A 10V 35x35x34mm 6 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 18
Holding Torque (oz.in) 25.5
Inductance(mH) 10
Phase Resistance(ohm) 6.8
Rated Current (A) 0.8
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 35x35
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 400
Weight(g) 170
