Nema 17 External Stepper Motor Linear Bipolar 1.5A 2.33V 1.8 Deg Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$71.16

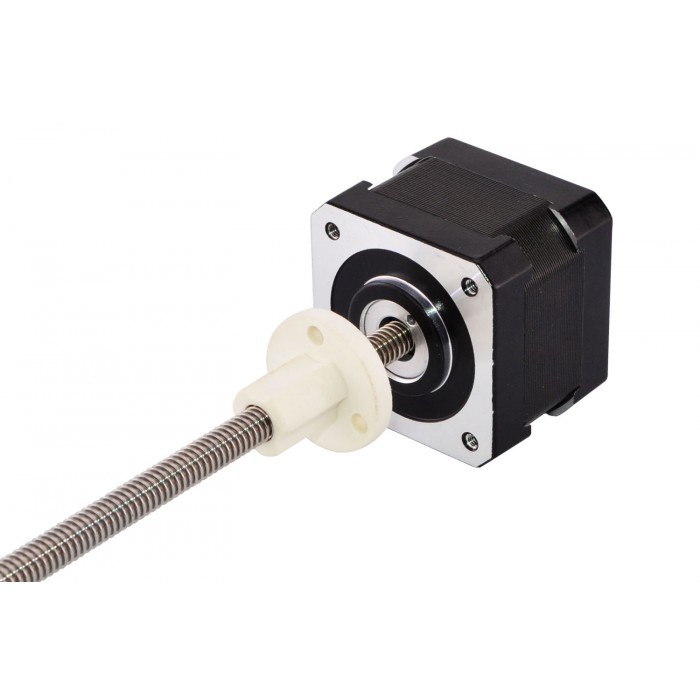

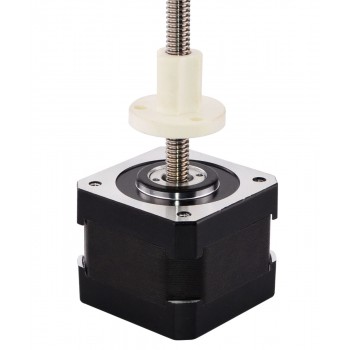

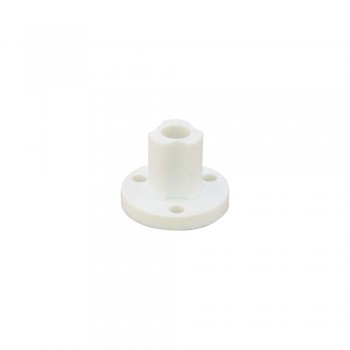

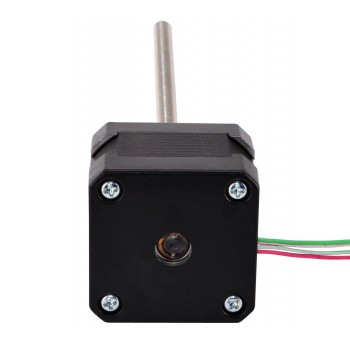

Nema 17 stepper motor, 34 mm body, 1.8°, 1.5 A, with integrated 5.54 mm (0.2181") × 150 mm (5.9055") lead screw and POM nut, 4.877 mm (0.192") travel per revolution.
Electrical Specification
Manufacturer Part Number: 17LS13-1504Q-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 105N (300pps)
Rated Current/phase: 1.5A
Phase Resistance: 1.56ohms
Voltage: 2.33V
Inductance: 1.9mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm

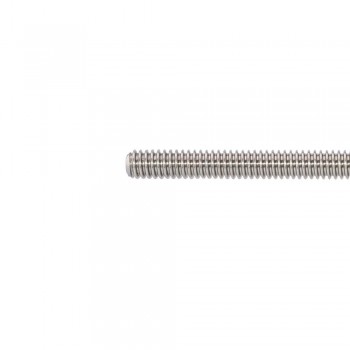

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ5.54mm(0.2181")
Lead/Step: 0.024384mm(0.00096")
Lead Travel/Revolution: 4.877mm(0.192")
Number of Leads: 4
Lead Length: 300mm
Weight: 241g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.9 |
| Minimal Thrust(N) | 105 |
| Motor Type | External |
| Phase Resistance(ohm) | 1.56 |
| Rated Current (A) | 1.5 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 4.8768 |
| Linear Travel / Step(mm) | 0.024384 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
