Nema 17 External Linear Stepper Motor Bipolar 1.8 Deg 0.7A 5V Lead Screw 150mm
- Manuals and Documentation: Full Datasheet:
Our Price:$71.16

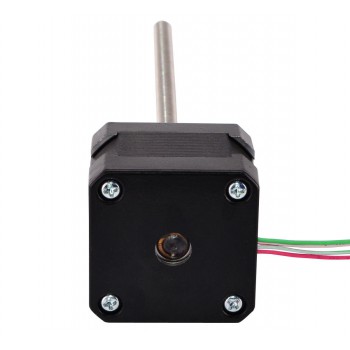

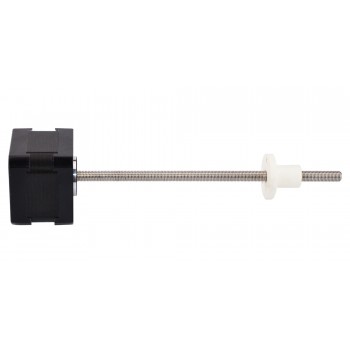

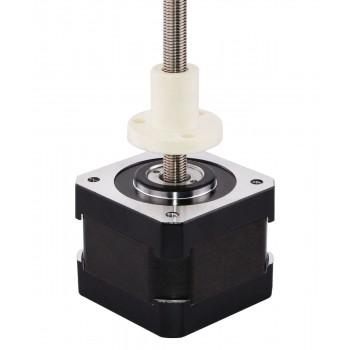

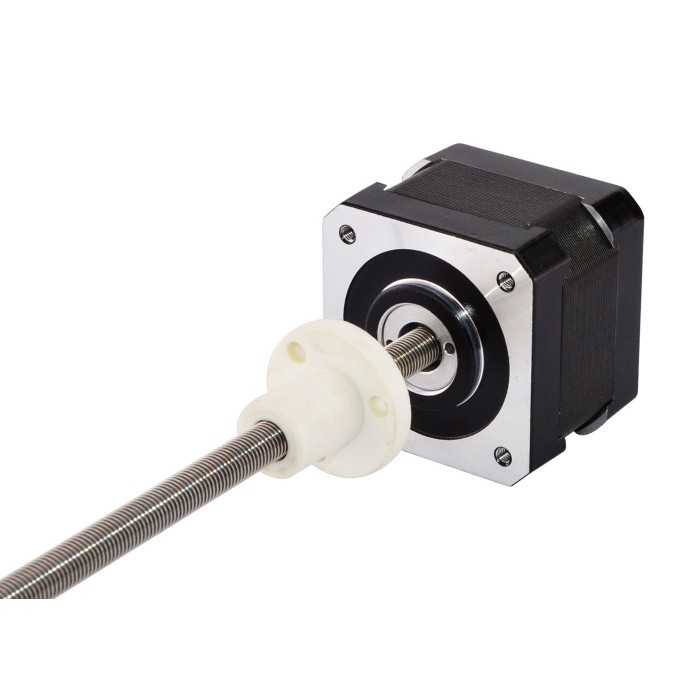

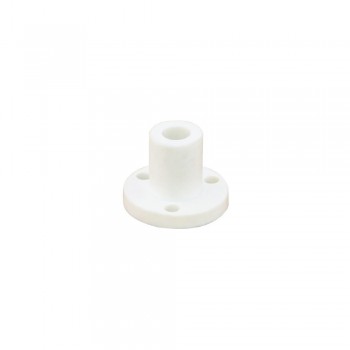

NEMA 17 stepper motor (34 mm body length, 1.8° step angle, 0.7 A) with an integrated 6.35 mm (0.25") diameter, 150 mm (5.9055") long lead screw and POM nut, providing 0.794 mm (0.03125") linear travel per revolution.
Electrical Specification
Manufacturer Part Number: 17LS13-0704P-150E
Motor Type: External Linear Stepper
Step Angle: 1.8°
Minimal Thrust: 434N (300pps)
Rated Current/phase: 0.7A
Phase Resistance: 7.2ohms
Voltage: 5V
Inductance: 10.6mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.00396875mm(0.00015625")
Lead Travel/Revolution: 0.794mm(0.03125")
Number of Leads: 4
Lead Length: 300mm
Weight: 241g
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green/White | Green |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 10.6 |
| Minimal Thrust(N) | 434 |
| Motor Type | External |
| Phase Resistance(ohm) | 7.2 |
| Rated Current (A) | 0.7 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 0.79375 |
| Linear Travel / Step(mm) | 0.00396875 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
