Nema 17 External 34mm Stack 0.7A Lead 1.27mm/0.05" Length 150mm

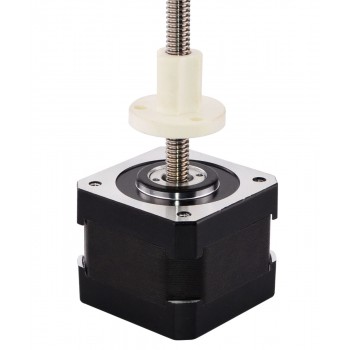

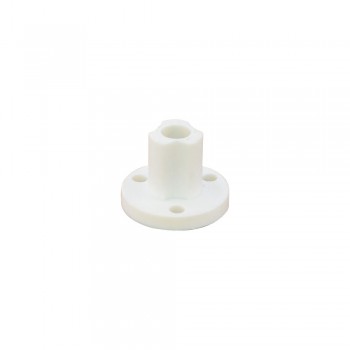

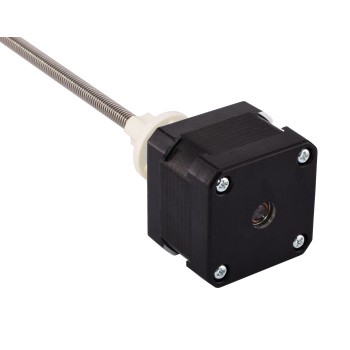

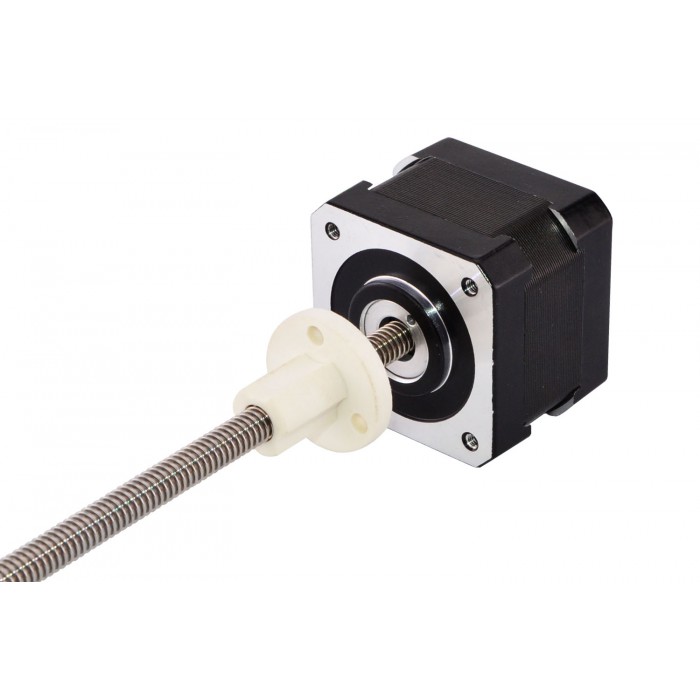

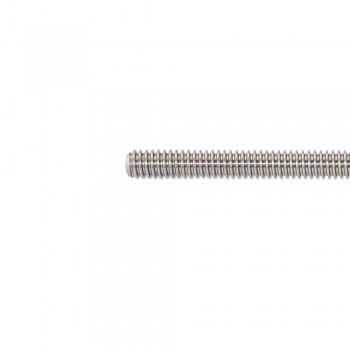

This model is almost exactly same as Haydon Kerk 43000 series size 17 external stepper motor linear actuator. The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it has integrated with a 6.35mm (0.25") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 1.27mm (0.05") per revolution.
Electrical Specification
- Manufacturer Part Number: 17LS13-07049-150E
- Motor Type: External Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 230N (300pps)
- Rated Current/phase: 0.7A
- Phase Resistance: 7.2ohms
- Voltage: 5V
- Inductance: 10.6mH±20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ6.35mm(0.25")
- Lead/Step: 0.00635mm(0.00025" )
- Lead Travel/Revolution: 1.27mm(0.05")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 241g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 17LS13-07049-150E.pdf
