Nema 17 External Linear Stepper Motor Actuator Bipolar 1.8 Deg 0.7A 5V 4 Wires Lead Screw 150mm
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$71.16

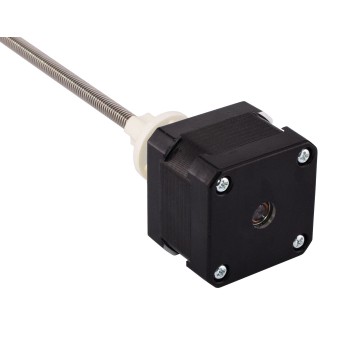

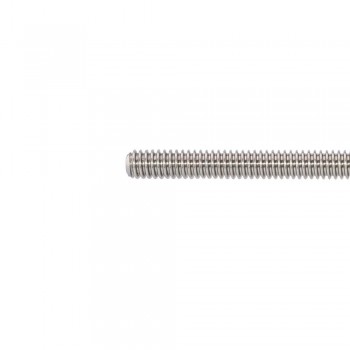

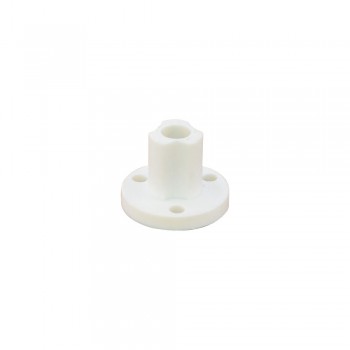

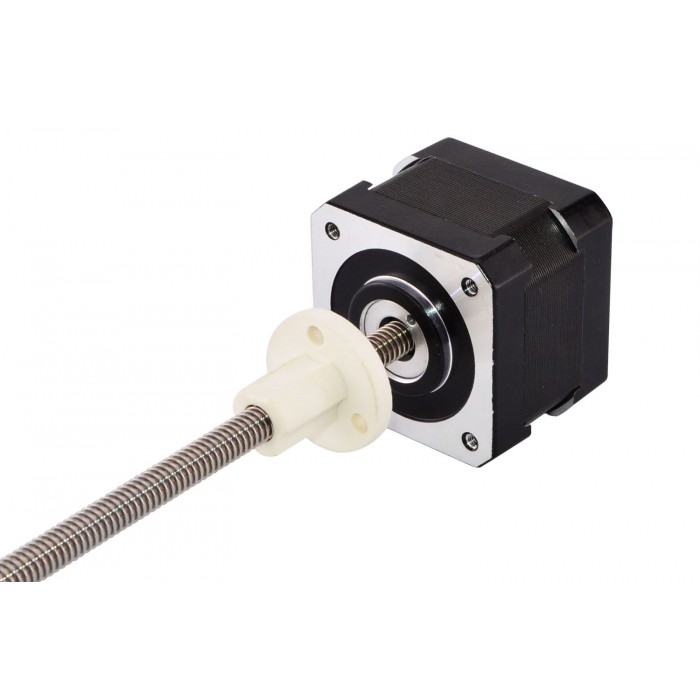

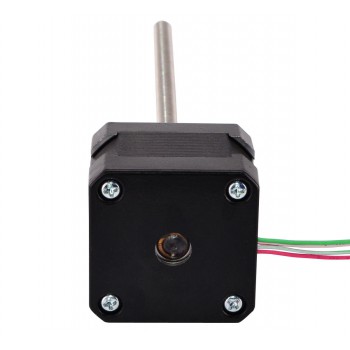

This model is almost exactly same as Haydon Kerk 43000 series size 17 external stepper motor linear actuator. The motor part is 34mm body 1.8 degree 0.7A Nema 17 stepper motor, and it has integrated with a 5.54mm (0.2181") diameter 150mm (5.9055") length lead screw and a POM screw nut, the linear travel is 2.438mm (0.096") per revolution.
Electrical Specification
- Manufacturer Part Number: 17LS13-0704J-150E
- Motor Type: External Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 196N (300pps)
- Rated Current/phase: 0.7A
- Phase Resistance: 7.2ohms
- Voltage: 5V
- Inductance: 10.6mH±20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ5.54mm(0.2181")
- Lead/Step: 0.012192mm(0.00048" )
- Lead Travel/Revolution: 2.438mm(0.096")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 241g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Red/White
|
Green/White
|
Green
|
Resources
- Full Datasheet: 17LS13-0704J-150E.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 10.6 |
| Minimal Thrust(N) | 196 |
| Motor Type | External |
| Phase Resistance(ohm) | 7.2 |
| Rated Current (A) | 0.7 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.8 |
| Lead Screw Diameter(mm) | 5.54 |
| Lead Screw Length(mm) | 150 |
| Lead Revolution(mm) | 2.4384 |
| Linear Travel / Step(mm) | 0.012192 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Frame Size(mm) | Nema 17 (42 x 42) |
