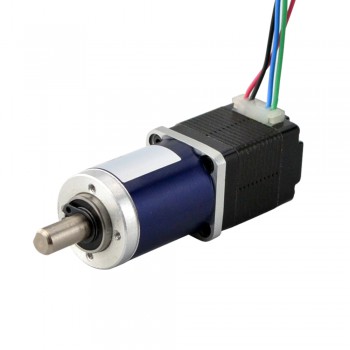

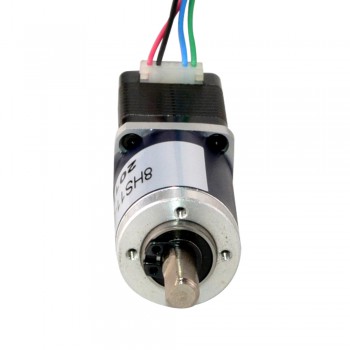

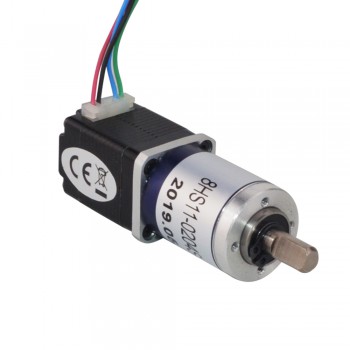

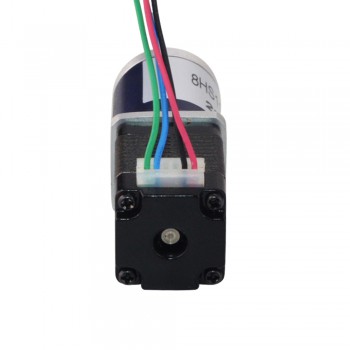

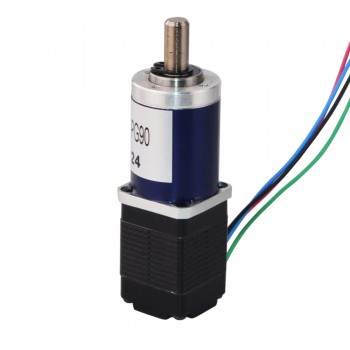

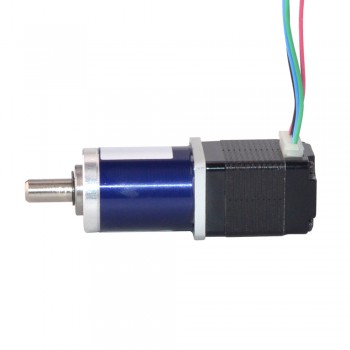

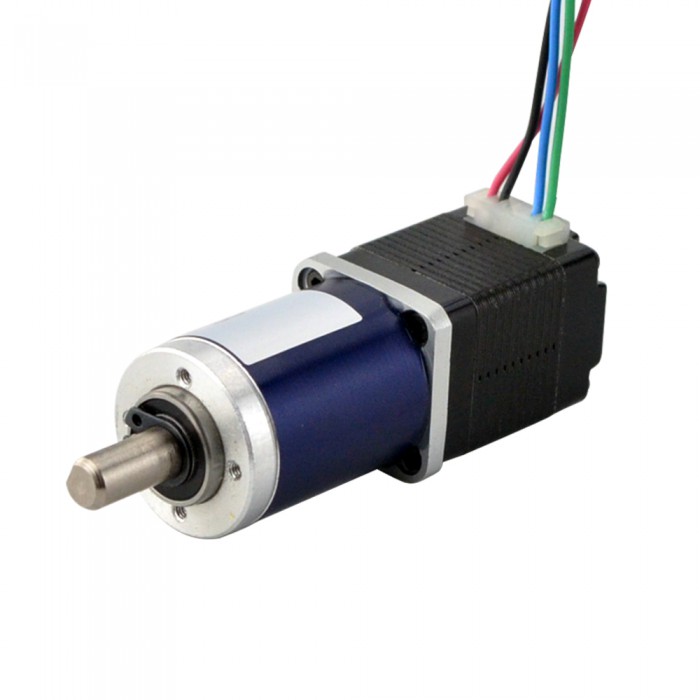

Nema 8 Geared Stepper Motor Bipolar L=28mm w/ Gear Ratio 90:1 Planetary Gearbox

NO.:8HS11-0204S-PG90
Review: Post a review
China National Day 2020 Special Offer:
  • 5% Off on Total Order Amount
  • Enjoy Discount at Checkout
  • No Need Coupon Code!
  • Valid:October 1st, 2020 - October 8th, 2020
  • Note:Delayed Delivery, See Details...
  • See details
Latest price:$66.16
Buy It Now:$50.89
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$46.27 $43.96 $41.64 $39.32
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 8HS11-0204S-PG90
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.02 deg
  • Holding Torque without Gearbox: 1.6 Ncm(2.266 oz.in)
  • Rated Current/phase: 0.2 A
  • Phase Resistance: 24 ohms
  • Inductance: 8 mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 90.25: 1
  • Efficiency: 73%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 0.9 Nm(127.5 oz.in)
  • Moment Permissible Torque: 2 Nm(283 oz.in)
  • Shaft Maximum Axial Load: 5 N
  • Shaft Maximum Radial Load: 25 N

Physical Specifications

  • Frame Size: 22 x 22 mm
  • Gearbox Length: 30.95 mm
  • Shaft Diameter: Φ6 mm
  • Shaft Length: 15 mm
  • D-cut Length: 9 mm
  • Number of Leads: 4
  • Lead Length: 300 mm
  • Weight: 86 g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 1 Axis Closed Loop Stepper Motor CNC Kit YE Series 12.0 Nm(1699.68oz.in) Nema 34 Motor & Driver
Next: Nema 8 Geared Step Motor Bipolar 0.2A L=38mm w/ Gear Ratio 90:1 Planetary Gearbox
Gearbox Specification
Efficiency 73%
Gear Ratio 90.25:1
Gearbox Length(mm) 30.95
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 90
Max. Permissible Torque(oz.in) 127.5
Moment Permissible Torque(Ncm) 200
Moment Permissible Torque(oz.in) 283.2
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 1.6
Holding Torque w/o Gearbox(oz.in) 2.266
Inductance(mH) 8
Lead Length(mm) 300
Motor Nema Size Nema 8
No. of Lead 4
Phase Resistance(ohm) 24
Rated Current (A) 0.2
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
