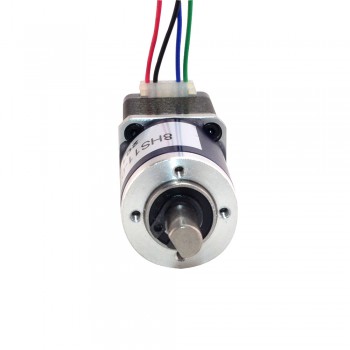

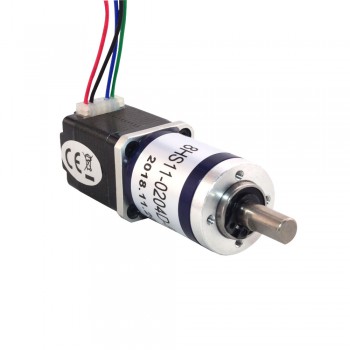

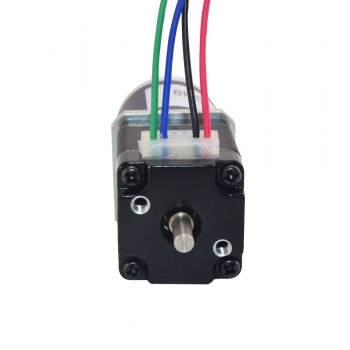

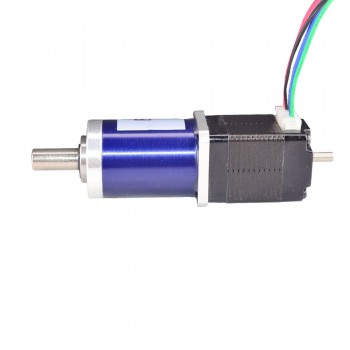

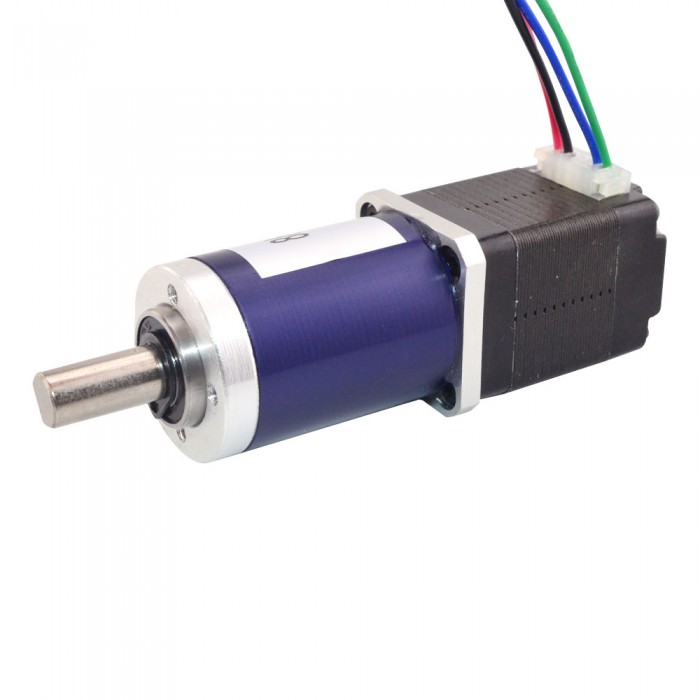

Nema 8 Geared Step Motor Bipolar 0.2A L=38mm w/ Gear Ratio 90:1 Planetary Gearbox

NO.:8HS11-0204D-PG90
Review: Post a review
Latest price:$70.68
Buy It Now:$54.37
Quantity:- +

Buy More, Save more!
3 - 9 10 - 29 30 - 99 100 - Max
$53.14 $51.90 $50.66 $49.43
Add To Cart

This Nema 8 stepper motor with 38mm body and 0.2A rated current, integrated a planetary gearbox of 90.25:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 8HS11-0204S-PG90
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque without Gearbox: 1.6Ncm(2.27oz.in)
  • Rated Current/phase: 0.2A
  • Phase Resistance: 24ohms
  • Inductance: 8mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 90.25:1
  • Efficiency: 73%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 0.9N.m(127.5oz.in)
  • Moment Permissible Torque: 2N.m(283oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Physical Specification

  • Frame Size: 22 x 22mm
  • Gearbox Length: 30.95mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 15mm
  • D-cut Length: 9mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 50g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 8 Geared Stepper Motor Bipolar L=28mm w/ Gear Ratio 90:1 Planetary Gearbox
Next: Nema 11 Geared Stepper Motor 0.71 A Bipolar L=51mm w/ Gear Ratio 50.9:1 Planetary Gearbox
Gearbox Specification
Efficiency 73%
Gear Ratio 90.25:1
Gearbox Length(mm) 30.95
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 90
Max. Permissible Torque(oz.in) 127.5
Moment Permissible Torque(Ncm) 200
Moment Permissible Torque(oz.in) 283.2
Shaft Maximum Axial Load(N) 5
Shaft Maximum Radial Load(N) 25
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 1.6
Holding Torque w/o Gearbox(oz.in) 2.27
Inductance(mH) 8
Lead Length(mm) 300
Motor Length(mm) 38
Motor Nema Size Nema 8
No. of Lead 4
Phase Resistance(ohm) 24
Rated Current (A) 0.2
Shaft Diameter(mm) 6
Shaft Length(mm) 15
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Physical Specification
Weight(g) 150
