Nema 14 Stepper Motor Bipolar L=51mm 40Ncm 0.35 Deg 1.5A 4.2V with 5:1 Planetary Gearbox

Nema 14 Stepper Motor Bipolar L=51mm 40Ncm 0.35 Deg 1.5A 4.2V with 5:1 Planetary Gearbox
NO.:14HS20-1504S-PG5
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$42.10
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $40.00 5%
10 $39.15 7%
50 $37.89 10%
100 $36.63 13%
Add To Cart

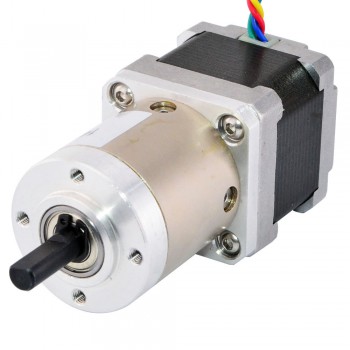

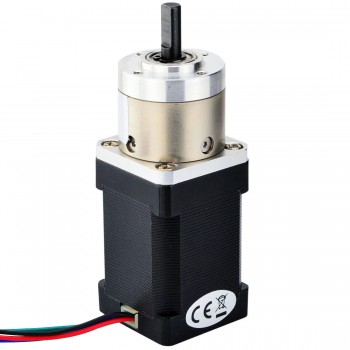

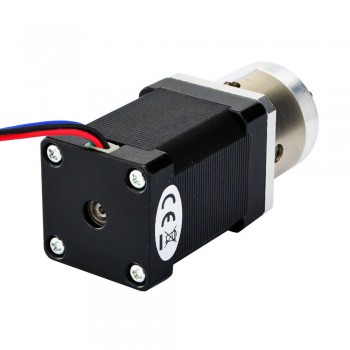

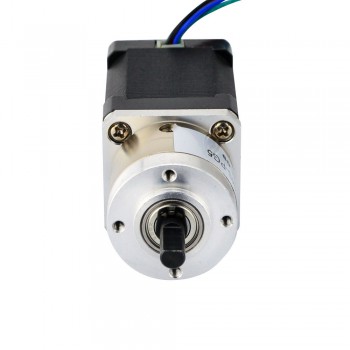

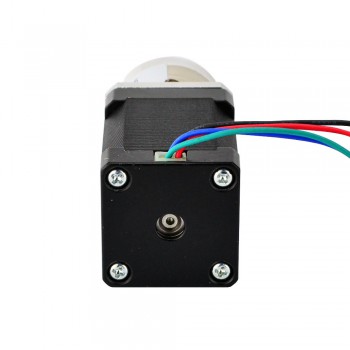

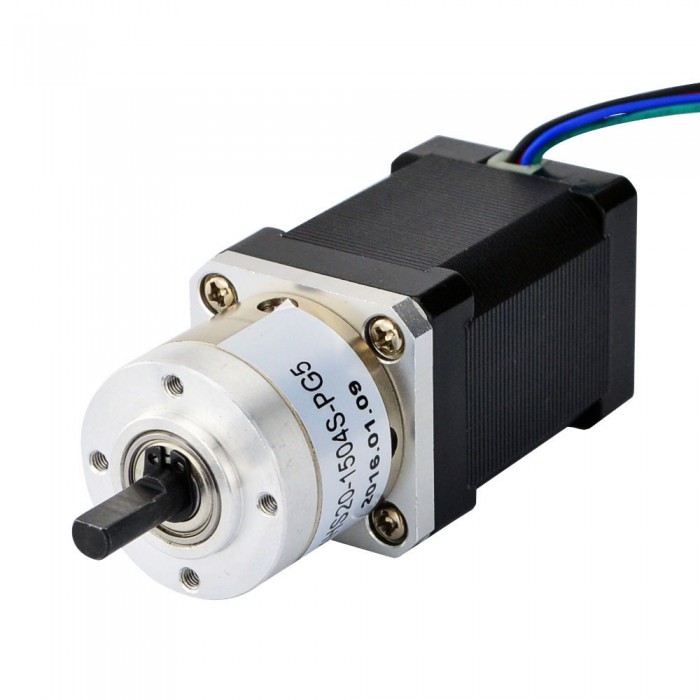

This Nema 14 stepper motor with 51mm body and 1.5A rated current, integrated a planetary gearbox of 5.18:1 gear ratio.

Electrical Specification

  • Manufacturer Part Number: 14HS20-1504S-PG5
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.35 deg
  • Holding Torque without Gearbox: 40Ncm(56.64oz.in)
  • Rated Current/phase: 1.5A
  • Phase Resistance: 2.8ohms
  • Voltage: 4.2V
  • Inductance: 3.8mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 5.18: 1
  • Efficiency: 90%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 2Nm(283oz.in)
  • Moment Permissible Torque: 4Nm(566oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 35 x 35mm
  • Motor Length: 52mm
  • Gearbox Length: 28.2mm
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-cut Length: 12mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 600g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

14HS20-1504S-PG5

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 14 Stepper Motor Bipolar L=33mm 18Ncm 0.018 Deg 0.8A 5.4V with 100:1 Planetary Gearbox
Next: Nema 16 Stepper Motor Bipolar L=33mm 22Ncm 0.35 deg 0.6A 9V with 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 90%
Gear Ratio 5.18:1
Gearbox Length(mm) 28.2
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 200
Max. Permissible Torque(oz.in) 283.2
Moment Permissible Torque(Ncm) 566.4
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.8
Lead Length(mm) 400
Motor Nema Size Nema 14
No. of Lead 4
Phase Resistance(ohm) 2.8
Rated Current (A) 1.5
Shaft Diameter(mm) 6
Shaft Length(mm) 18
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.6
Motor Length(mm) 52
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 400
