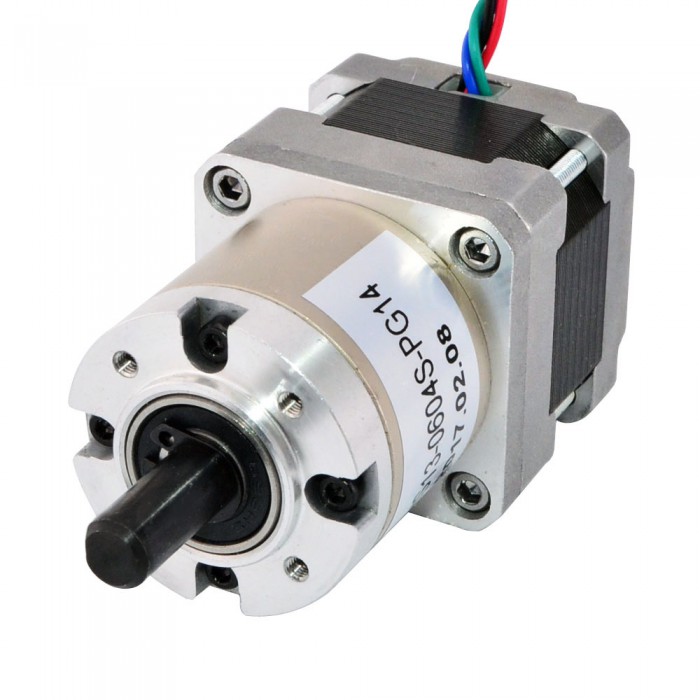

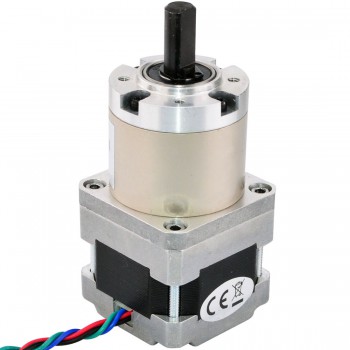

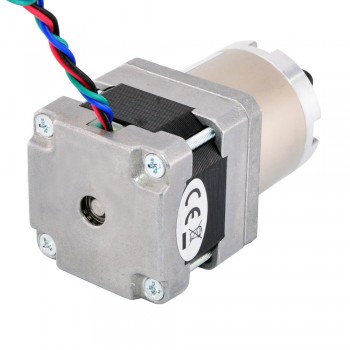

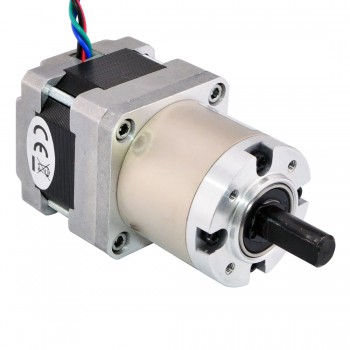

Nema 16 Stepper Motor Bipolar L=33mm 22Ncm 0.131 deg 0.6A 9V with 14:1 Planetary Gearbox

Nema 16 Stepper Motor Bipolar L=33mm 22Ncm 0.131 deg 0.6A 9V with 14:1 Planetary Gearbox
NO.:16HS13-0604S-PG14
Post a review
Our Price:$32.19
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $30.58 5%
10 $29.94 7%
50 $28.97 10%
100 $28.01 13%
Add To Cart

This Nema 16 stepper motor with 33mm body and 0.6A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

Manufacturer Part Number: 16HS13-0604S-PG14

Motor Type: Bipolar Stepper

Step Angle: 0.131 deg

Holding Torque without Gearbox: 22Ncm(31.15oz.in)

Rated Current/phase: 0.6A

Phase Resistance: 15ohms

Voltage: 9V

Inductance: 16mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 13.73: 1

Efficiency: 81%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 3Nm(425oz.in)

Moment Permissible Torque: 5Nm(708oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 39 x 39mm

Motor Length: 34mm

Gearbox Length: 35mm

Shaft Diameter: Φ8mm

Shaft Length: 20mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 390g



Connection

A+ A- B+ B-
Black Green Red Blue



Resources

Full Datasheet: 16HS13-0604S-PG14.pdf

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 16 Stepper Motor Bipolar L=33mm 22Ncm 0.35 deg 0.6A 9V with 5:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=33mm 26Ncm 0.35 deg 12V with 5:1 Planetary Gearbox for DIY CNC Robot 3D Printer
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 81%
Gear Ratio 13.73:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500 / 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 16
Lead Length(mm) 500
Motor Nema Size Nema 16
No. of Lead 4
Phase Resistance(ohm) 15
Rated Current (A) 0.6
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 22
Holding Torque w/o Gearbox(oz.in) 31.2
Motor Length(mm) 34
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 500
