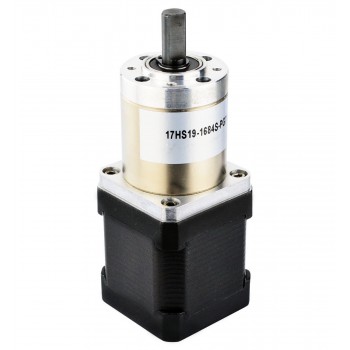

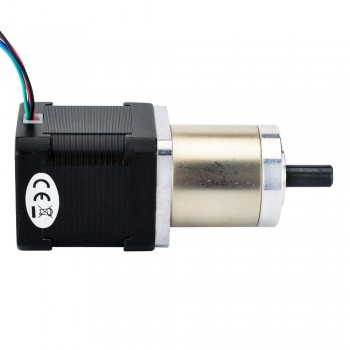

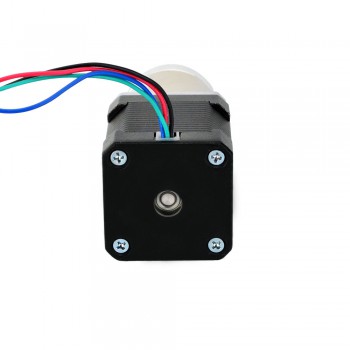

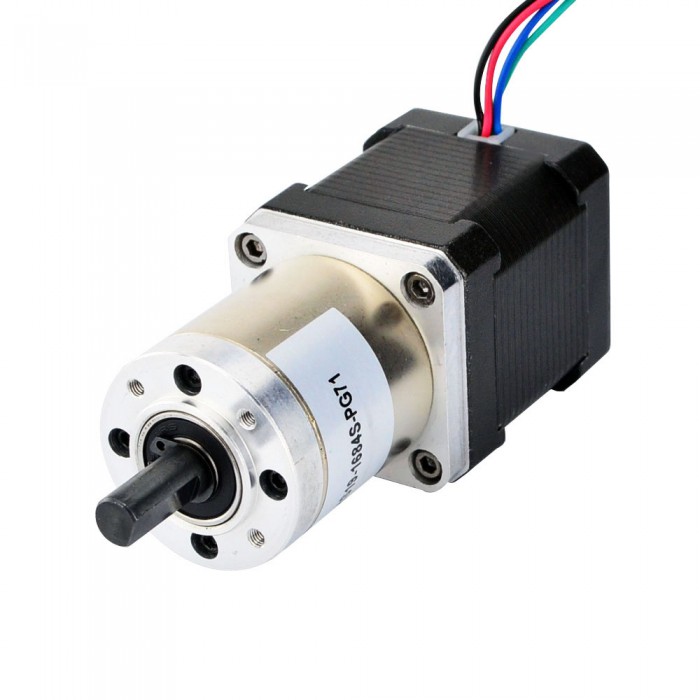

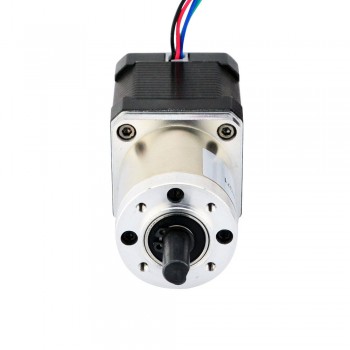

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 71:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 71:1 Planetary Gearbox
NO.:17HS19-1684S-PG71
Review: Post a review
Special Offer in May 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $30 Off Over $500
  • $50 Off Over $800
  • $60 Off Over $1000
  • $80 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$35.24
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $33.48 5%
10 $32.77 7%
50 $31.72 10%
100 $29.95 15%
Add To Cart

Dieser Nema 17 Schrittmotor mit 48mm Baulänge und 1.68A Nennstrom, integriert ein Planetengetriebe von 71.14: 1 Getriebe übersetzung. Es ist eine gute Lösung für Anwendungen, die bei begrenztem Platzbedarf eine geringe Geschwindigkeit und / oder ein hohes Drehmoment benötigen..

Elektrische Spezifikation

  • Hersteller-Teilenummer: 17HS19-1684S-PG71
  • Motorentyp: Bipolar Stepper
  • Schrittwinkel: 0.0253 deg
  • Haltemoment ohne Getriebe: 44Ncm(62.31oz.in)
  • Strom/Phase: 1.68A
  • Widerstand/Phase: 1.65ohms
  • Stromspannung: 2.8V
  • Induktivität: 2.8mH ± 20%(1KHz)

Getriebe spezifikationen

  • Getriebetyp: Planetary
  • Getriebe übersetzung: 71.14: 1
  • Effizienz: 73%
  • Backlash at No-load: <=1 deg
  • Max. Zulässiges Drehmoment: 4Nm(566oz.in)
  • Moment zulässiges Drehmoment: 6Nm(850oz.in)
  • Maximale axiale Belastung der Welle: 50N
  • Maximale Radialbelastung der Welle: 100N

Physikalische Spezifikation

  • RahmenGröße: 42 x 42mm
  • Motor Länge: 48mm
  • Getriebe länge: 42.7mm
  • Wellendurchmesser: Φ8mm
  • Schaftlänge: 20mm
  • D-Schnittlänge: 15mm
  • Anzahl Leiter: 4
  • Leitungslänge: 500mm
  • Gewicht: 620g

Verbindung

A+
A-
B+
B-
Black
Green
Red
Blue



Ressourcen

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 51:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=48mm w/ Gear Ratio 100:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 71.14:1
Gearbox Length(mm) 42.7
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 849.7
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 52
Holding Torque w/o Gearbox(oz.in) 73.6
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 600
