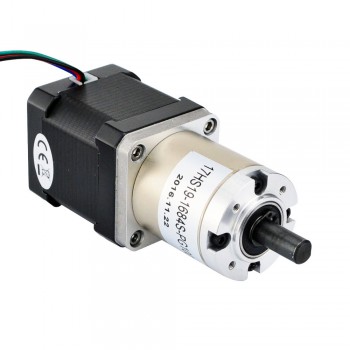

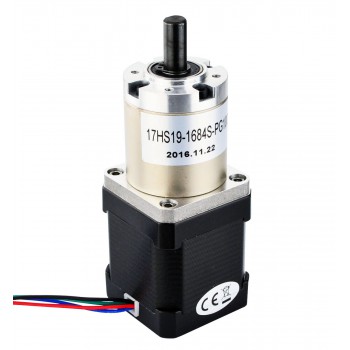

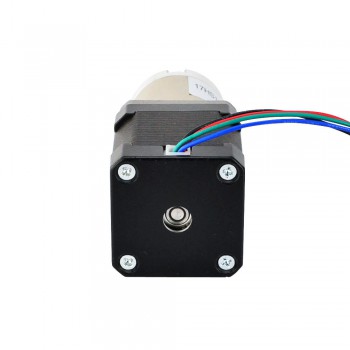

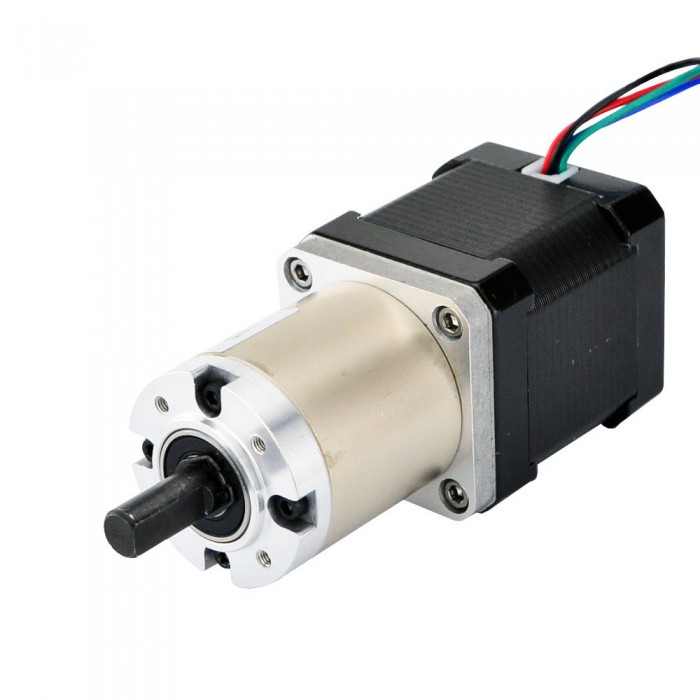

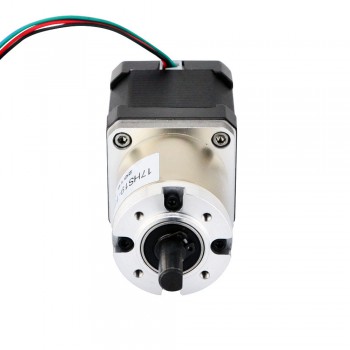

Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.018 deg 1.68A 2.8V with 100:1 Planetary Gearbox

Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.018 deg 1.68A 2.8V with 100:1 Planetary Gearbox
NO.:17HS19-1684S-PG100
Review: Post a review
Our Price:$35.24
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $33.48 5%
10 $32.77 7%
50 $31.72 10%
100 $30.66 13%
Add To Cart

This Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 99.05:1 gear ratio. It's suitable for applications that with limited space but need low speed and high torque.



Electrical Specification

Manufacturer Part Number: 17HS19-1684S-PG100

Motor Type: Bipolar Stepper

Step Angle: 0.018 deg

Holding Torque without Gearbox: 44Ncm(62.31oz.in)

Rated Current/phase: 1.68A

Phase Resistance: 1.65ohms

Voltage: 2.8V

Inductance: 2.8mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 99.05: 1

Efficiency: 73%

Backlash at No-load: <=1 deg

Max.Permissible Torque: 4Nm(566oz.in)

Moment Permissible Torque: 6Nm(850oz.in)

Shaft Maximum Axial Load: 50N

Shaft Maximum Radial Load: 100N



Physical Specifications

Frame Size: 42 x 42mm

Motor Length: 48mm

Gearbox Length: 42.7mm

Shaft Diameter: Φ8mm

Shaft Length: 20mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 630g



Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Full Datasheet: 17HS19-1684S-PG100.pdf

Torque Curve: 17HS19-1684S-PG100_Torque_Curve.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar L=48mm 44Ncm 0.0253 deg 1.68A 2.8V with 71:1 Planetary Gearbox
Next: Nema 17 Stepper Motor Bipolar L=60mm 65Ncm 0.35 deg 2.1A 3.36V with 5:1 Planetary Gearbox
Gearbox Specification
Backlash at No-load(Max.°) 1
Efficiency 73%
Gear Ratio 99.05:1
Gearbox Length(mm) 42.7
Gearbox Type Planetary
Max. Permissible Torque(Ncm) 400
Max. Permissible Torque(oz.in) 566.4
Moment Permissible Torque(Ncm) 600 / 849.7
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Inductance(mH) 3.2
Lead Length(mm) 500
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.8
Rated Current (A) 1.68
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 52
Holding Torque w/o Gearbox(oz.in) 73.6
Motor Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Physical Specification
Weight(g) 600

anki_gmc – 22 Mar 2018

A SELLER, RECEIVED IT EARLIER THAN BEEN TOLD

John – 18 Dec 2016

Using this to make a custom lab instrument. With a driver that can micro-step this unit provides an incredible 7.8nm/step resolution. There is minimal backlash in the gearbox.

Chris Jacobs – 15 Feb 2016

The motor works great and the output shaft spins slowly as expected with such a high gear ratio. Only two concerns which prevented a 5/5 star review are that the motor did not have the standard 4 pin connector (just had 4 loose wires) and the motor is not compatible with a standard Nema 17 mount due to the gearbox attached to the front.
