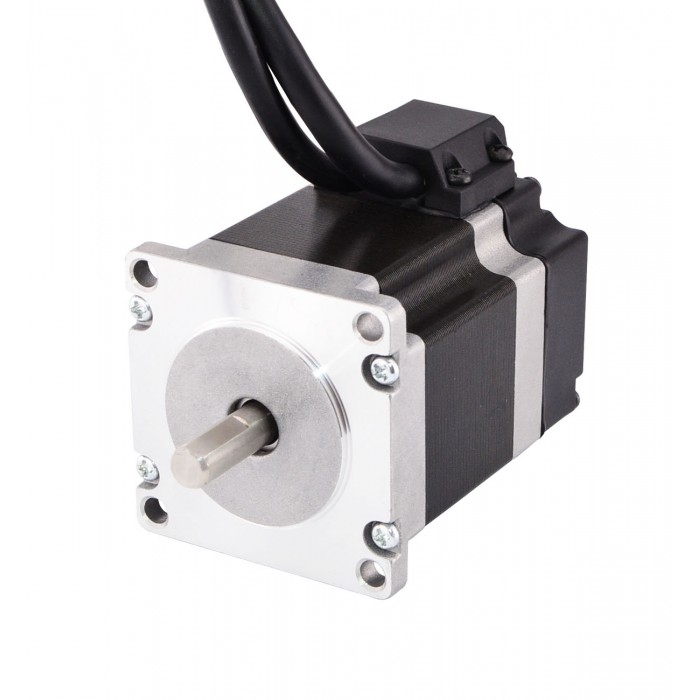

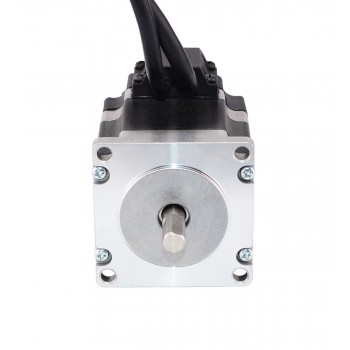

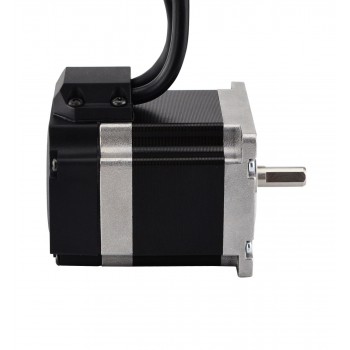

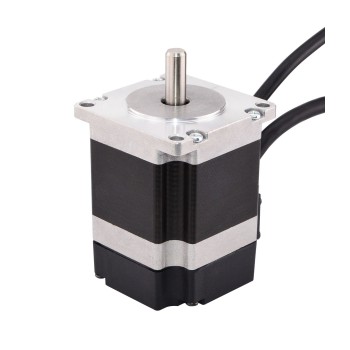

Nema 23 Closed Loop Stepper Motor 0.9 Deg 0.9Nm/128oz.in 0.38A 12.1V with Encoder 1000CPR
Special Offer in December 2023:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till December 7th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$60.04
Motor Specification
- Manufacturer Part Number: 23HM20-0384D-E1000
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 0.9Nm(127.5oz.in)
- Rated Current/phase: 0.38A
- Voltage: 12.1V
- Phase Resistance: 32ohms
- Inductance: 110mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 52mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-Cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm

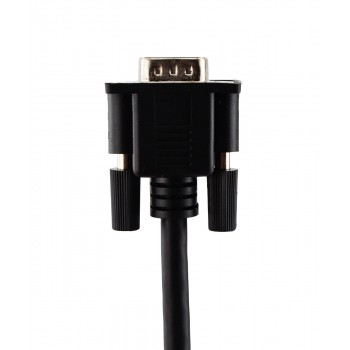

Encoder Specification
- Driving Voltage : 5V
- Output current : 55mA
- Resolution : 1000ppr
- Output Signal : 2 Channels
- Bore Diameter : Φ8mm
- Output Frequency : ≤1MHz
- Running Speed : ≤5000rpm
- IP Protection : IP20
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Resources
- Motor Datasheet: 23HM20-0384D-E1000.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Output Frequency(MHz) | ≤1MHz |
| Motor Specification | |
| Body Length(mm) | 52 |
| Holding Torque (Ncm) | 90 |
| Holding Torque (oz.in) | 127.5 |
| Inductance(mH) | 110 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 32 |
| Rated Current (A) | 0.38 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 0.9 |
| Encoder Specification | |
| Rated Voltage(V) | 5V |
| Output Current(mA) | 55 |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
| Running Speed(rpm) | ≤5000rpm |
| IP Protection | IP20 |
| Physical Specification | |
| Weight(g) | 750 |
