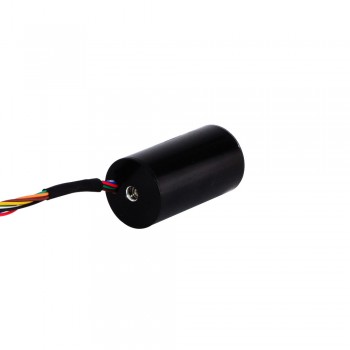

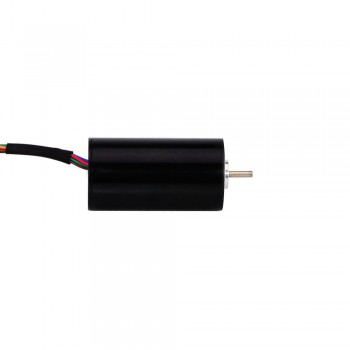

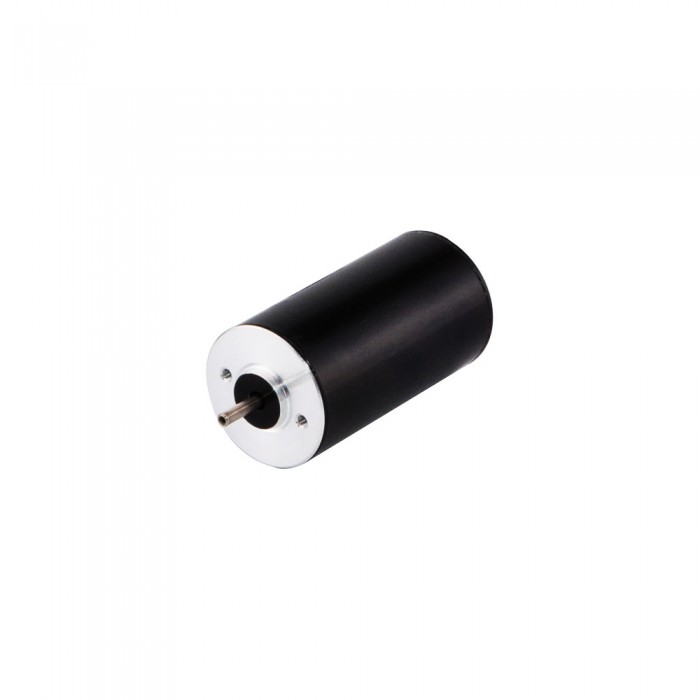

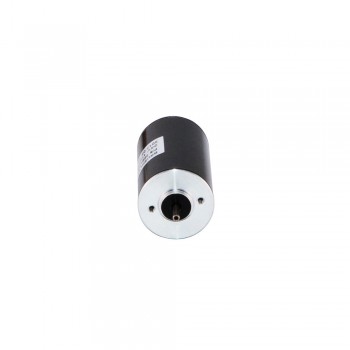

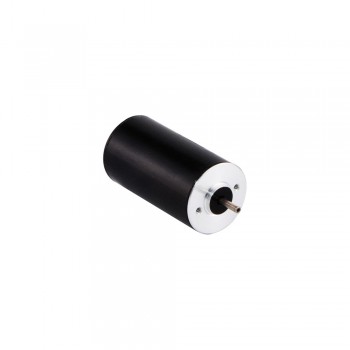

24V 10000RPM 0.008Nm 8.5W 0.72A Round Ф22x40mm 22BLR Brushless DC Motor

NO.:SKU:22BLR40-24-01
Review: Post a review
Latest price:$33.29
Buy It Now:$25.61
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$24.54 $23.47 $22.40 $21.34
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 22BLR40-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Speed: 10000±10%RPM
  • Noload Speed: 14000RPM
  • Rated Torque: 0.008Nm(1.13oz.in)
  • Rated Current: 0.72±10%A
  • Noload Current: 0.25A
  • Rated Power: 8.5W
  • Insulation Class: Class B
  • Insulation Resistance: 100MΩ Min @500VDC
  • Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

  • Frame Size: Φ22mm
  • Body Length: 40mm
  • Shaft Diameter: Φ2mm
  • Shaft Length: 9mm
  • Number of Leads: 8
  • Lead Length: 300mm
  • Bearing Type: NMB Ball Bearing, C3
  • Sensor: Hall Sensor
  • Weight: 0.15kg

Connection

U
V
W
+5V
GND
A
B
C
ORG
GRN
BRW
RED
BLK
YEL
WHT
BLU
