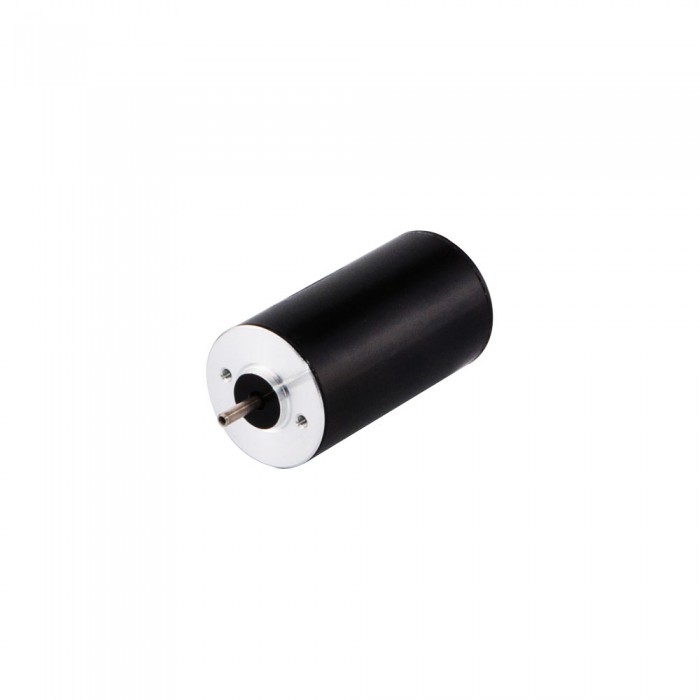

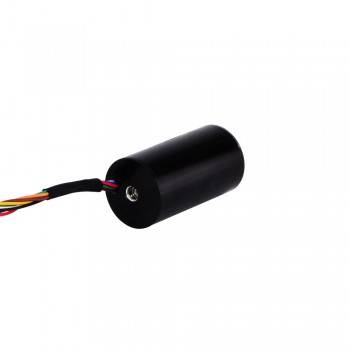

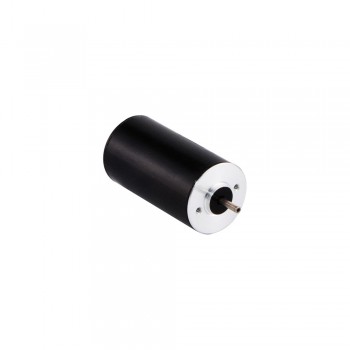

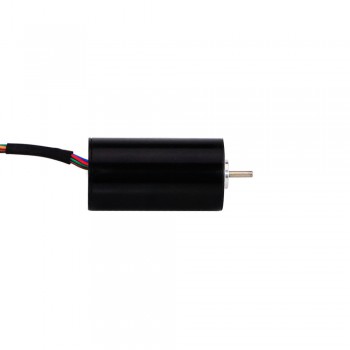

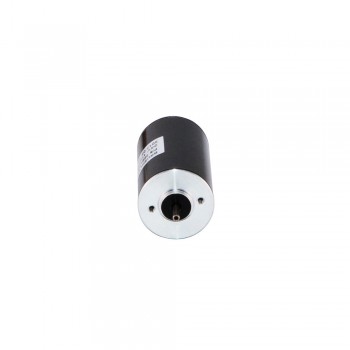

24V BLDC Motor 6000RPM 0.011Nm 7W 0.54A Round Ф22x50mm 22BLR Brushless DC Motor
Special Offer in April 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till April 20th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$31.81
Electrical Specification
- Manufacturer Part Number: 22BLR50-24-01
- Phase: 3
- Poles: 4
- Rated Voltage: 24V
- Rated Speed: 6000±10%RPM
- Noload Speed: 8900RPM
- Rated Torque: 0.011Nm(1.56oz.in)
- Rated Current: 0.54±10%A
- Noload Current: 0.11A
- Rated Power: 7W
- Insulation Class: Class B
- Insulation Resistance: 100MΩ Min @500VDC
- Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
- Frame Size: Φ22mm
- Body Length: 50mm
- Shaft Diameter: Φ2mm
- Shaft Length: 9mm
- Number of Leads: 8
- Lead Length: 300mm
- Bearing Type: NMB Ball Bearing, C3
- Sensor: Hall Sensor
- Weight: 0.1kg
Connection
|
U
|
V
|
W
|
+5V
|
GND
|
A
|
B
|
C
|
|
ORG
|
GRN
|
BRW
|
RED
|
BLK
|
YEL
|
WHT
|
BLU
|
