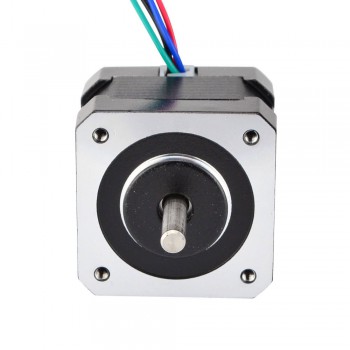

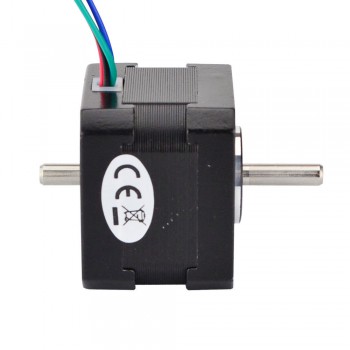

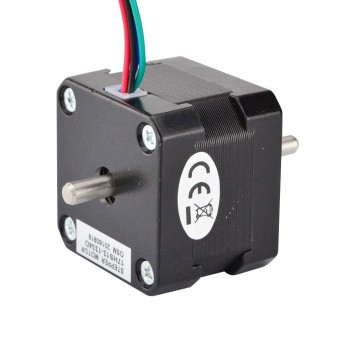

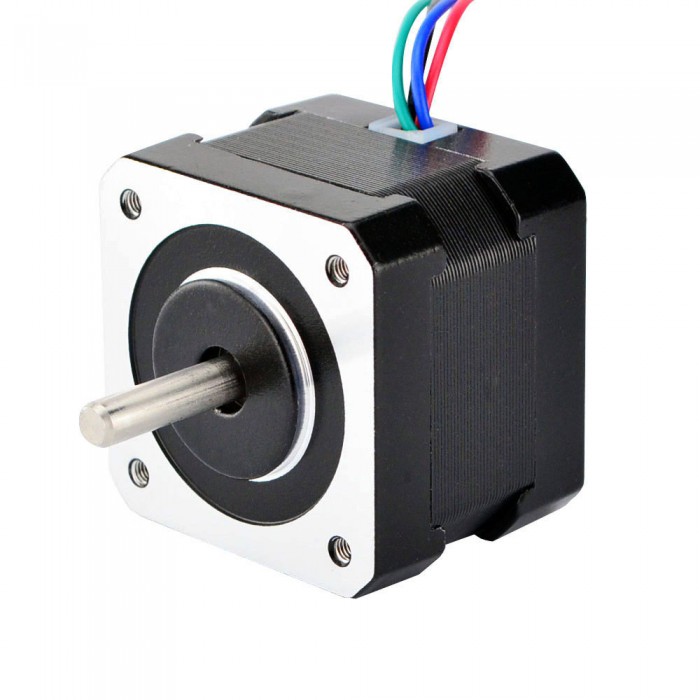

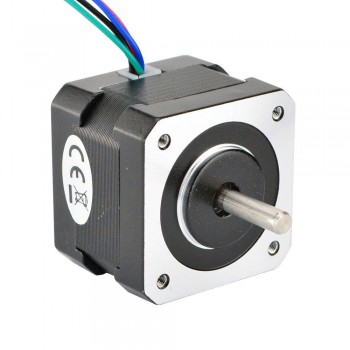

Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 Deg 22Ncm (31oz.in) 1.33A 2.8V 42x33mm 4 Wires
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 1.33A, with holding torque 22Ncm (31oz.in). A rear shaft is available.
Electrical Specification
Manufacturer Part Number: 17HS13-1334D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 22Ncm(31oz.in)
Rated Current/phase: 1.33A
Voltage: 2.8V
Phase Resistance: 2.1ohms
Inductance: 2.5mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
Rear Shaft Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 230g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 17HS13-1334D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 22 |
| Holding Torque (oz.in) | 31 |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 1.33 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Shaft Type | O |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| No. of Lead | 4 |
| Lead Length(mm) | 300 |
| Weight(g) | 220 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
