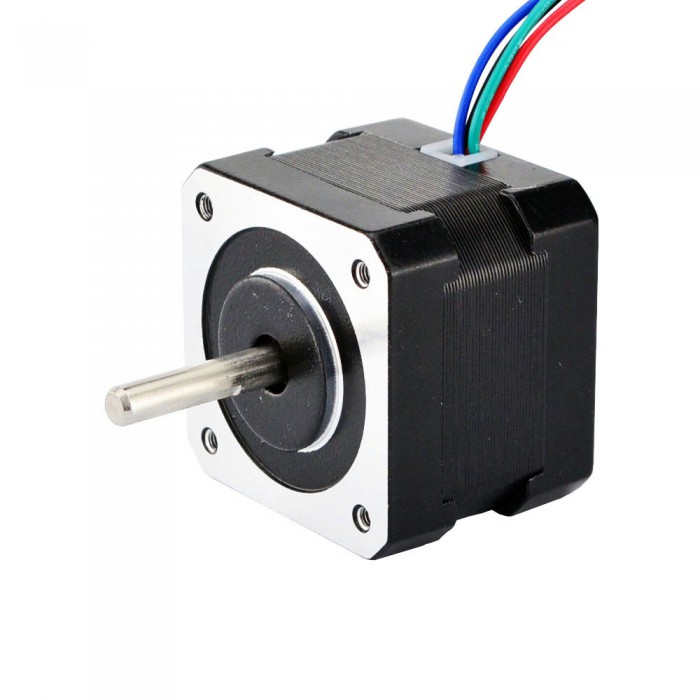

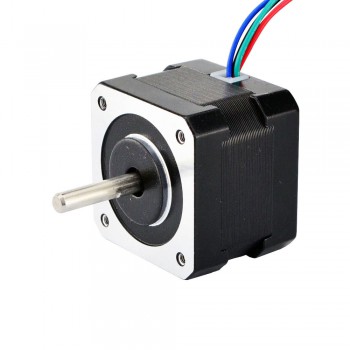

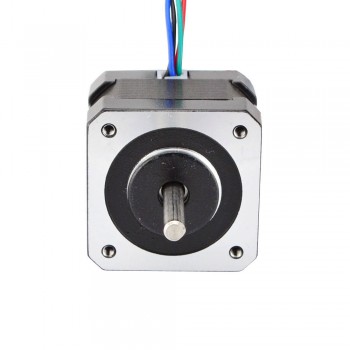

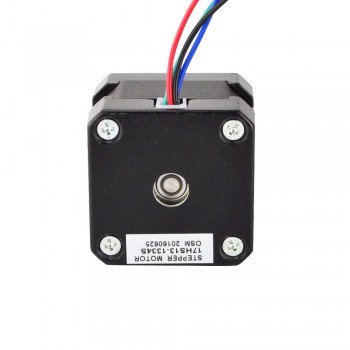

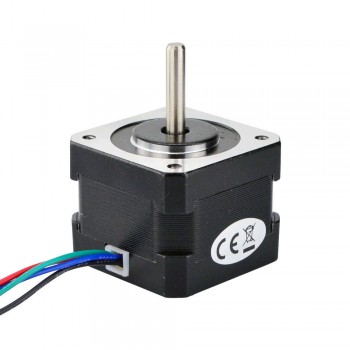

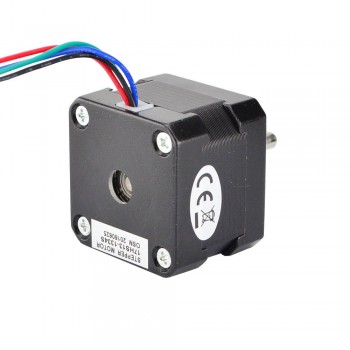

Nema 17 Stepper Motor Bipolar 1.8 deg 22Ncm (31oz.in) 1.33A 2.8V 42x42x34mm 4 Wires

NO.:SKU:17HS13-1334S
Review: Post a review
Latest price:$12.17
Buy It Now:$9.36
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$9.02 $8.67 $8.32 $7.98
Add To Cart

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x34mm. It has 4 wires, each phase draws current 1.33A, with holding torque 22Ncm (31oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS13-1334S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 22Ncm(31oz.in)
  • Rated Current/phase: 1.33A
  • Voltage: 2.8V
  • Phase Resistance: 2.1ohms
  • Inductance: 2.5mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 33mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 16.5mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 230g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Unipolar 1.8 deg 16Ncm (22.7oz.in) 0.95A 4V 42x42x33mm 6 Wires
Next: Dual Shaft Nema 17 Stepper Motor Bipolar 1.8 deg 22Ncm (31oz.in) 1.33A 2.8V 42x33mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 22
Holding Torque (oz.in) 31
Inductance(mH) 2.5
Phase Resistance(ohm) 2.1
Rated Current (A) 1.33
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 34
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 400
Weight(g) 220
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
