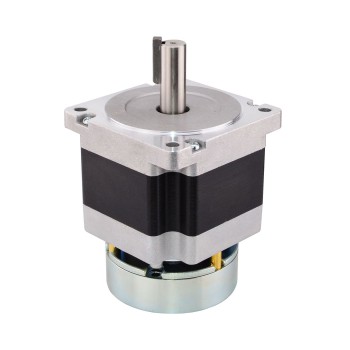

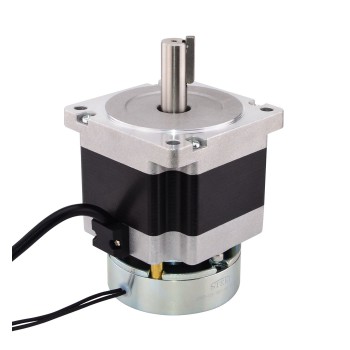

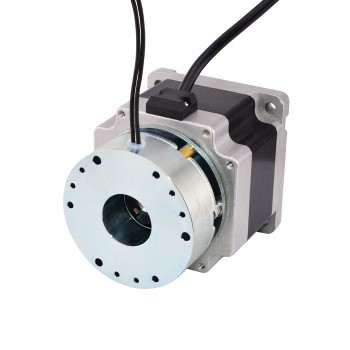

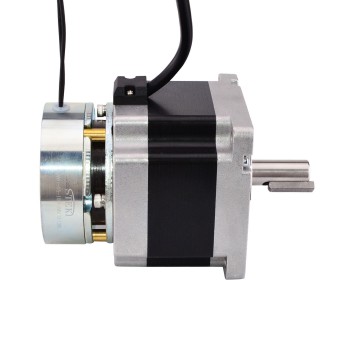

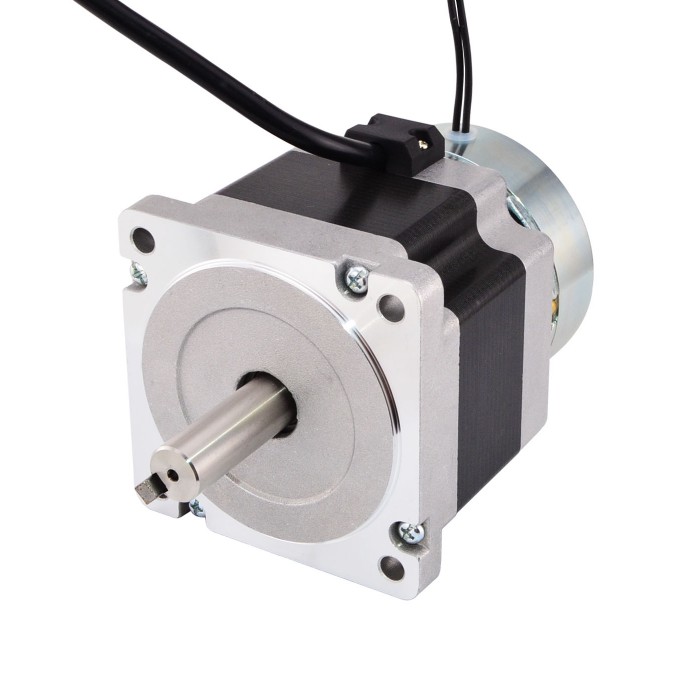

Nema 34 Stepper Motor Bipolar 1.8 Deg 4.5Nm(637oz.in) 5.5A 2.2V with Brake Keyway Shaft
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$127.56
Motor Specification
- Manufacturer Part Number: 34HS31-5504D-B400
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 4.5Nm(637oz.in)
- Rated Current/phase: 5.5A
- Voltage: 2.2V
- Phase Resistance: 0.4ohms
- Inductance: 3.5mH ± 20%(1KHz)
- Frame Size: 86 x 86mm
- Body Length: 80mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Key-way Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 2.3kg
Brake Specification
- Static Friction Torque : 4Nm(566.4oz.in)
- Moment of Interia : 23x10-6 kg.cm2
- Voltage : 24V
- Power : 13W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.8kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Black
|
Yellow
|
Blue
|
Resources
- Motor Datasheet: 34HS31-5504D-B400.pdf
- Brake Datasheet: SWB-05.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 80 |
| Holding Torque (Ncm) | 450 |
| Holding Torque (oz.in) | 637.3 |
| Inductance(mH) | 3.5 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 0.4 |
| Rated Current (A) | 5.5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Bipolar/Unipolar | Bipolar |
| Brake Specification | |
| Heat-resistance Class | F |
| Max. Speed(rpm) | 5000 |
| Moment of Interia(kg.cm2) | 23x10-6 |
| Power(W) | 13 |
| Static Friction Torque(Nm) | 4 |
| Static Friction Torque(oz.in) | 566 |
| Driving Voltage(V) | 24 |
