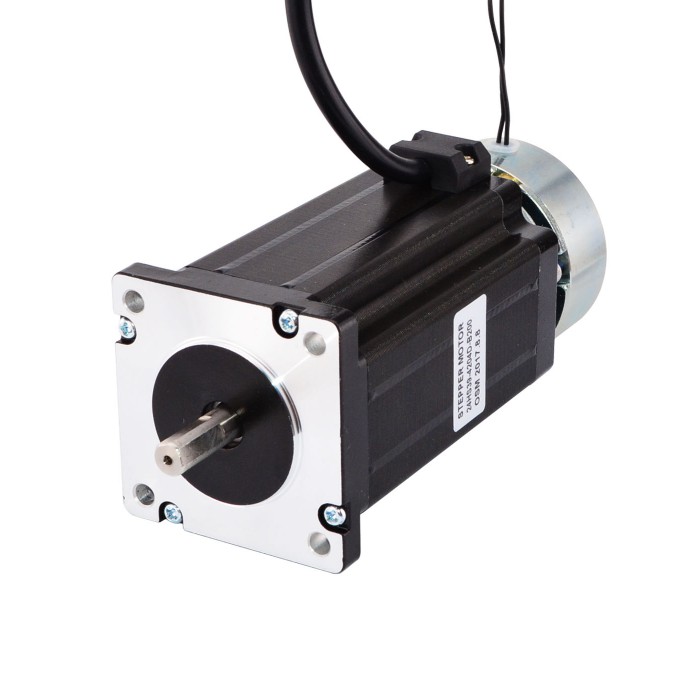

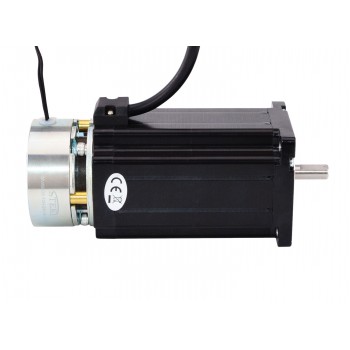

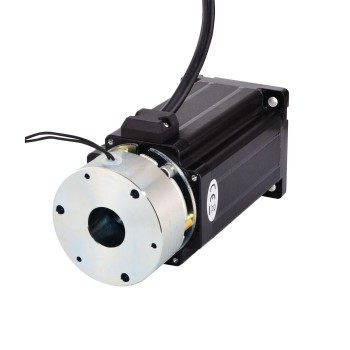

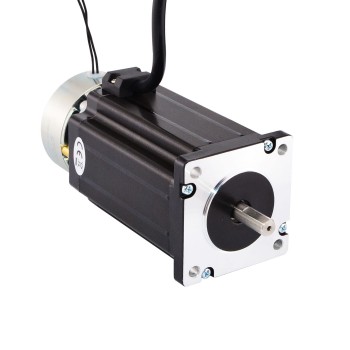

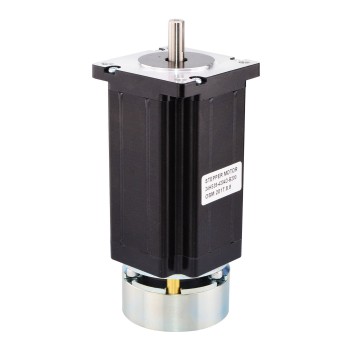

Nema 24 Stepper Motor Bipolar 1.8 Deg 4.0Nm(566 oz.in) 4.24A 2.96V with Brake D-Cut Shaft

Nema 24 Stepper Motor Bipolar 1.8 Deg 4.0Nm(566 oz.in) 4.24A 2.96V with Brake D-Cut Shaft
NO.:24HS39-4204D-B200
Review: Post a review
Halloween Special Offer 2024:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$99.72
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $94.73 5%
10 $92.74 7%
50 $89.75 10%
100 $86.76 13%
Add To Cart

Motor Specification

Manufacturer Part Number: 24HS39-4204D

Motor Type: Bipolar Stepper

Step Angle: 1.8 deg

Holding Torque: 4Nm(566oz.in)

Rated Current/phase: 4.24A

Voltage: 2.96V

Phase Resistance: 0.7ohms

Inductance: 3mH ± 20%(1KHz)

Frame Size: 60 x 60mm

Body Length: 100mm

Shaft Diameter: Φ8mm

Shaft Length: 21mm

D-cut Length: 15mm

Number of Leads: 4

Lead Length: 500mm

Weight: 1.6kg



Brake Specification

Brake Type: Non-excited

Static Friction Torque: 2Nm(283.2oz.in)

Moment of Interia : 3.8x10-6 kg.cm2

Voltage: 24V

Power: 11.5W

Heat-resistance Class: F

Max. Speed : 5000rpm

Weight : 0.4kg



Connection

A+
A-
B+
B-
Red
Green
Yellow
Blue

Resources

Brake Datasheet: SWB-03.pdf



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Stepper Motor Bipolar 1.8 Deg 3.0Nm(425oz.in) 4.2A 3.78V with Brake D-Cut Shaft
Next: Nema 34 Stepper Motor Bipolar 1.8 Deg 3.4Nm(481.5oz.in) 4.0A 2.8V with Brake Keyway Shaft
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 100
Holding Torque (Ncm) 400
Holding Torque (oz.in) 566.4
Inductance(mH) 3
Lead Length(mm) 500
Motor Nema Size Nema 24
No. of Lead 4
Phase Resistance(ohm) 0.7
Rated Current (A) 4.24
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Bipolar/Unipolar Bipolar
Brake Specification
Heat-resistance Class F
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 3.8x10-6
Power(W) 11.5
Static Friction Torque(Nm) 2
Static Friction Torque(oz.in) 283
Driving Voltage(V) 24
