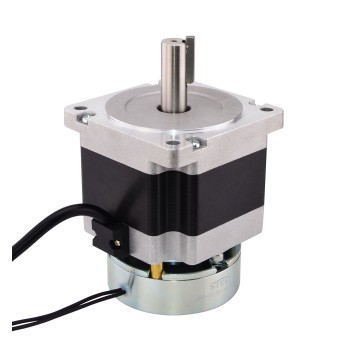

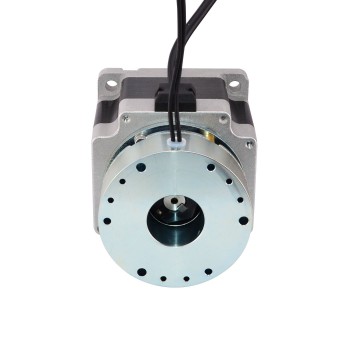

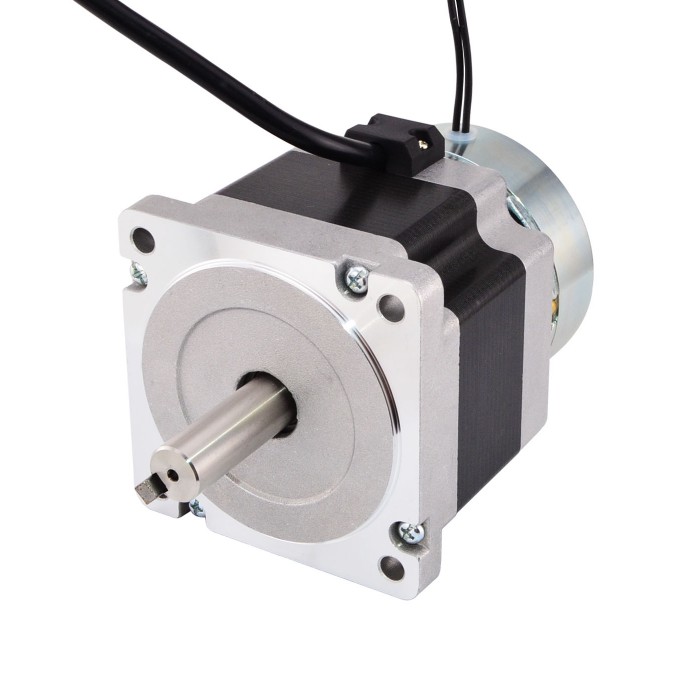

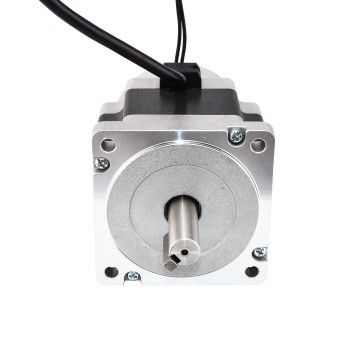

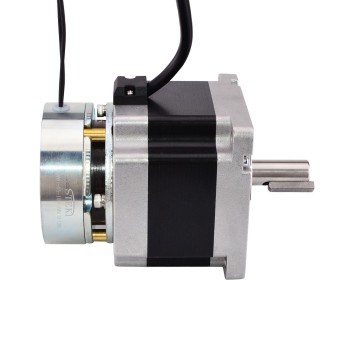

Nema 34 Stepper Motor 3.4Nm(481.5oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)

NO.:SKU:34HS27-4004D-B400
Review: Post a review
Latest price:$125.20
Buy It Now:$96.30
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$92.29 $88.28 $84.26 $80.25
Add To Cart

Motor Specification

  • Manufacturer Part Number: 34HS27-4004D-B400
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque:3.4Nm(481oz.in)
  • Rated Current/phase: 4.0A
  • Voltage: 2.8V
  • Phase Resistance: 0.7ohms
  • Inductance: 4.4mH ± 20%(1KHz)
  • Frame Size: 86 x 86mm
  • Body Length: 68mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Key-way Length: 25mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 3.13kg

Brake Specification

  • Static Friction Torque : 4Nm(566.4oz.in)
  • Moment of Interia : 23x10-6 kg.cm2
  • Voltage : 24V
  • Power : 13W
  • Heat-resistance Class: F
  • Max. Speed : 5000rpm
  • Weight : 0.8kg

Connection

A+
A-
B+
B-
Red
Black
Yellow
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 24 Stepper Motor 4.0Nm(566 oz.in) w/ Brake Friction Torque 2.0Nm(283oz.in)
Next: Nema 34 Stepper Motor 4.5Nm(637oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Motor Specification
Step Angle(°) 1.8
Body Length(mm) 68
Holding Torque (Ncm) 340
Holding Torque (oz.in) 481.5
Inductance(mH) 4.4
Lead Length(mm) 500
Motor Nema Size Nema 34
No. of Lead 4
Phase Resistance(ohm) 0.7
Rated Current (A) 4
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Bipolar/Unipolar Bipolar
Brake Specification
Heat-resistance Class F
Max. Speed(rpm) 5000
Moment of Interia(kg.cm2) 23x10-6
Power(W) 13
Static Friction Torque(Nm) 4
Static Friction Torque(oz.in) 566
Driving Voltage(V) 24
