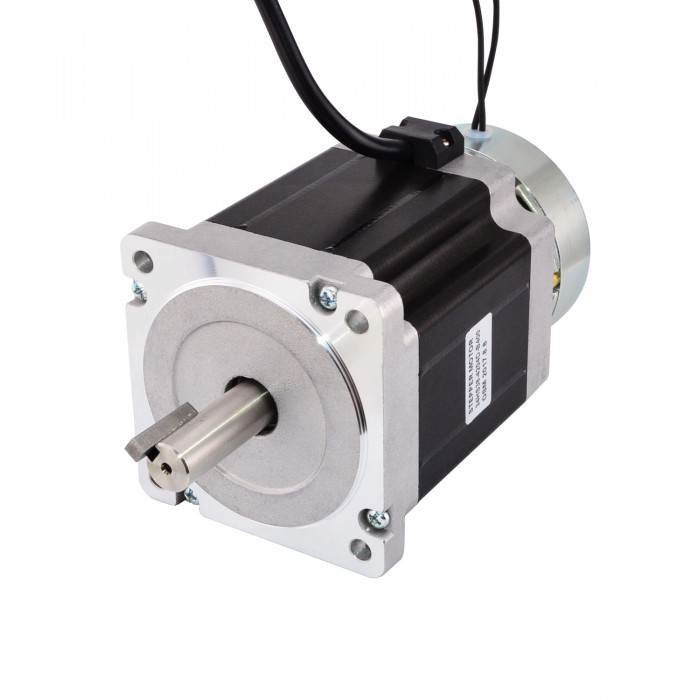

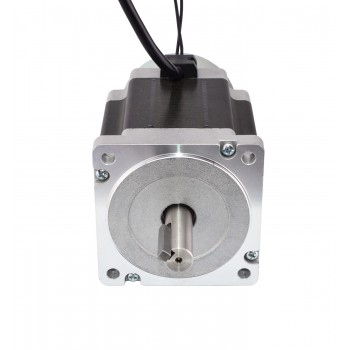

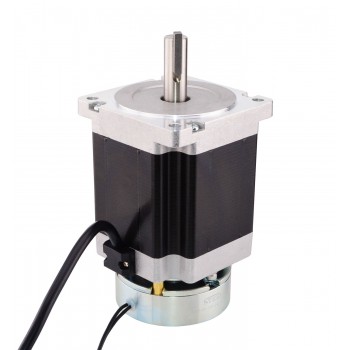

Nema 34 Stepper Motor Bipolar 1.8 Deg 7.0Nm(1001oz.in) 4.24A 3.39V with Brake Keyway Shaft
- All Treats No Tricks
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till November 4th, 2024
- Note:No coupon code needed, please place order directly!
Motor Specification
Manufacturer Part Number: 34HS38-4204D-B400
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 7Nm(1001oz.in)
Rated Current/phase: 4.24A
Voltage: 3.39V
Phase Resistance: 0.8ohms
Inductance: 8mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Key-way Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 3.13kg

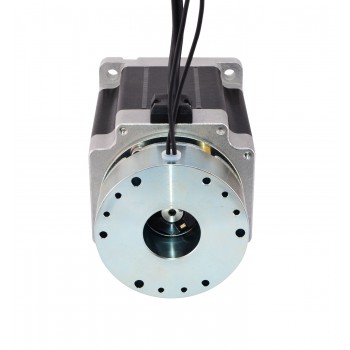

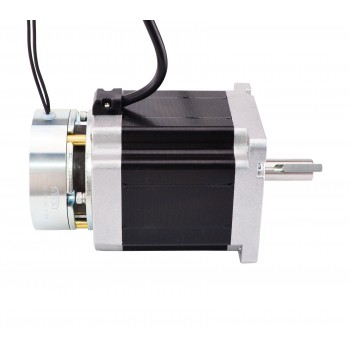

Brake Specification
Static Friction Torque : 4Nm(566.4oz.in)
Moment of Interia : 23x10-6 kg.cm2
Voltage : 24V
Power : 13W
Heat-resistance Class: F
Max. Speed : 5000rpm
Weight : 0.8kg
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Black
|
Yellow
|
Blue
|
Resources
Motor Datasheet: 34HS38-4204D-B400.pdf
Brake Datasheet: SWB-05.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Motor Specification | |
---|---|
Step Angle(°) | 1.8 |
Body Length(mm) | 98 |
Holding Torque (Ncm) | 707 |
Holding Torque (oz.in) | 1001 |
Inductance(mH) | 8 |
Lead Length(mm) | 500 |
Motor Nema Size | Nema 34 |
No. of Lead | 4 |
Phase Resistance(ohm) | 0.8 |
Rated Current (A) | 4.24 |
Shaft Diameter(mm) | 14 |
Shaft Length(mm) | 37 |
Bipolar/Unipolar | Bipolar |
Brake Specification | |
Heat-resistance Class | F |
Max. Speed(rpm) | 5000 |
Moment of Interia(kg.cm2) | 23x10-6 |
Power(W) | 13 |
Static Friction Torque(Nm) | 4 |
Static Friction Torque(oz.in) | 566 |
Driving Voltage(V) | 24 |
