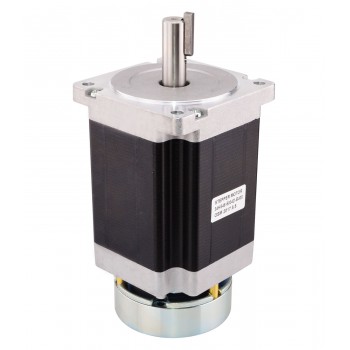

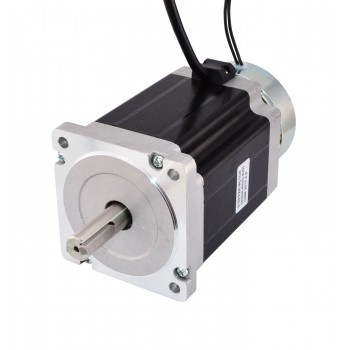

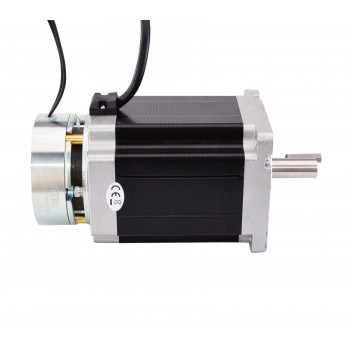

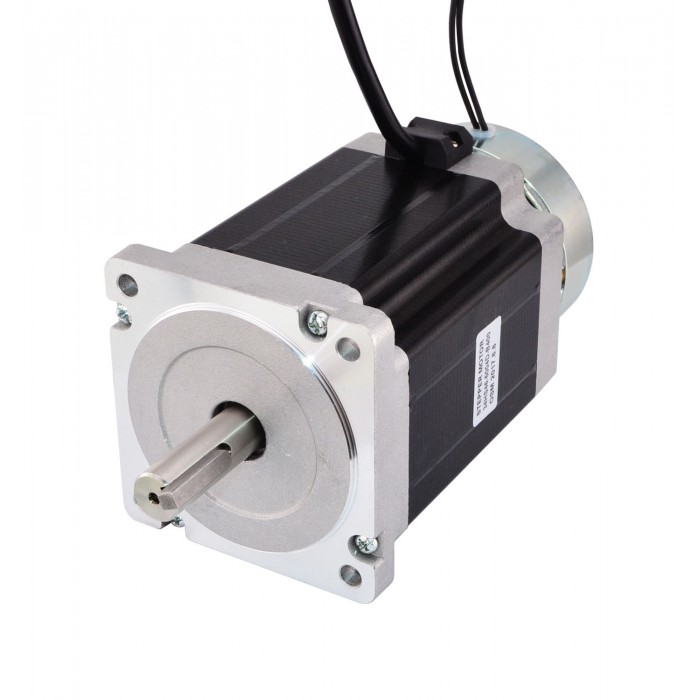

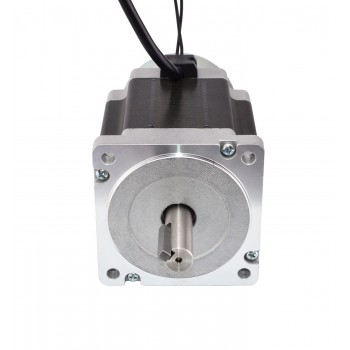

Nema 34 Stepper Motor 8.5Nm(1204oz.in) w/ Brake Friction Torque 4.0Nm(566oz.in)
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$159.36
Motor Specification
- Manufacturer Part Number: 34HS46-5004D-B400
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 8.5Nm(1204oz.in)
- Rated Current/phase: 5A
- Voltage: 5V
- Phase Resistance: 1ohms
- Inductance: 11mH ± 20%(1KHz)
- Frame Size: 86 x 86mm
- Body Length: 114mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- Key-way Length: 25mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 3.6kg

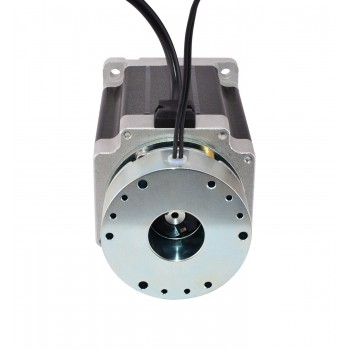

Brake Specification
- Static Friction Torque : 4Nm(566.4oz.in)
- Moment of Interia : 23x10-6 kg.cm2
- Voltage : 24V
- Power : 13W
- Heat-resistance Class: F
- Max. Speed : 5000rpm
- Weight : 0.8kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Black
|
Yellow
|
Blue
|
Resources
- Motor Datasheet: 34HS46-5004D-B400.pdf
- Brake Datasheet: SWB-05.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 114 |
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.7 |
| Inductance(mH) | 11 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Bipolar/Unipolar | Bipolar |
| Brake Specification | |
| Heat-resistance Class | F |
| Max. Speed(rpm) | 5000 |
| Moment of Interia(kg.cm2) | 23x10-6 |
| Power(W) | 13 |
| Static Friction Torque(Nm) | 4 |
| Static Friction Torque(oz.in) | 566 |
| Driving Voltage(V) | 24 |
