Nema 17 Stepper Motor Bipolar 1.8 deg 36Ncm (51oz.in) 1.68A 2.8V 42x42x39mm 4 Wires

NO.:SKU:17HS15-1684S
Review: Post a review
Latest price:$13.11
Buy It Now:$10.08
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$9.71 $9.34 $8.97 $8.58
Add To Cart

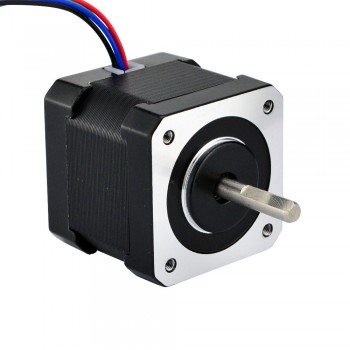

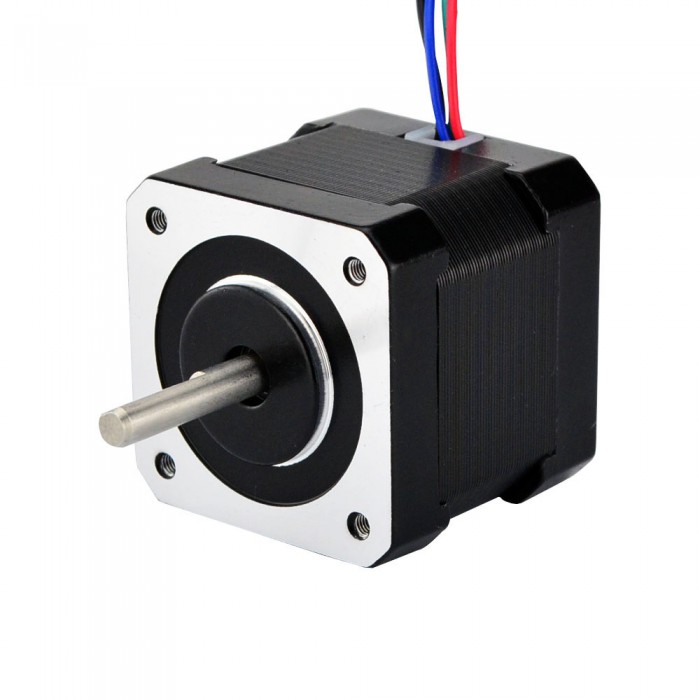

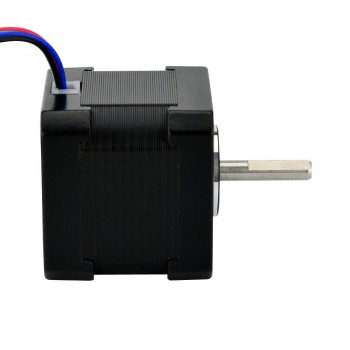

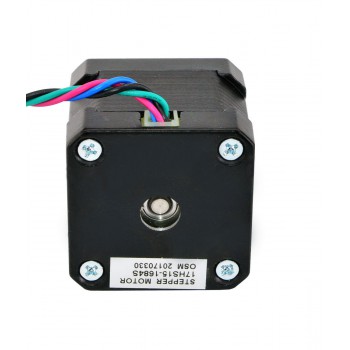

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 1.68A, with holding torque 36Ncm (51oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HS15-1684S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 36Ncm(51oz.in)
  • Rated Current/phase: 1.68A
  • Voltage: 2.8V
  • Phase Resistance: 1.65ohms
  • Inductance: 3.2mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 22mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 110mm
  • Weight: 300g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 17 Stepper Motor Bipolar 1.8 deg 36Ncm (51oz.in) 0.85A 5.4V 42x42x39mm 4 Wires
Next: Nema 17 Stepper Motor Bipolar 1.8 deg 36Ncm (51oz.in) 0.28A 15.7V 42x42x40mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 36
Holding Torque (oz.in) 51
Inductance(mH) 3.2
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 39
Frame Size(mm) 42x42
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 22
No. of Lead 4
Lead Length(mm) 500
Weight(g) 280
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
