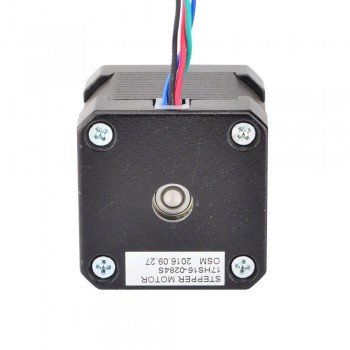

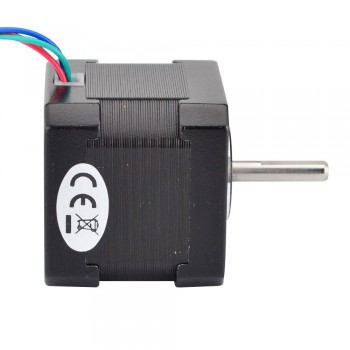

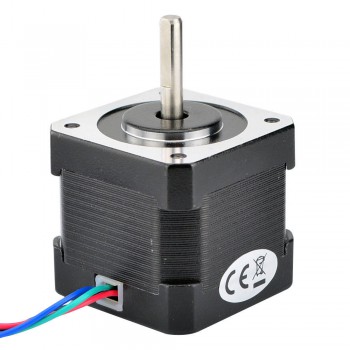

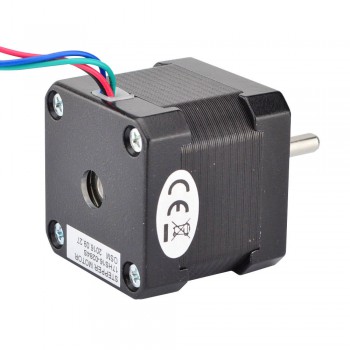

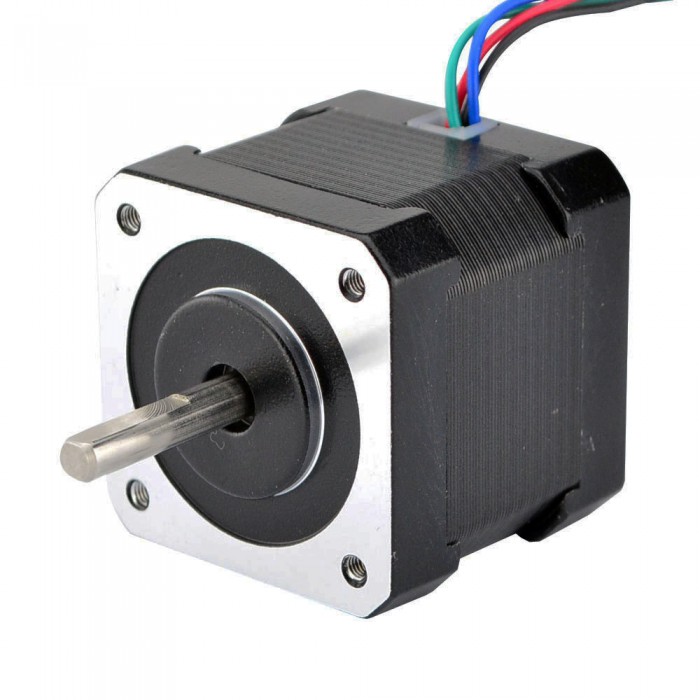

Nema 17 Stepper Motor Bipolar 1.8 deg 36Ncm (51oz.in) 0.28A 15.7V 42x42x40mm 4 Wires
Special Offer in June 2023:
- 5% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 10th, 2023
- Note:No coupon code needed, please place order directly!
Our Price:$12.53
This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x40mm. It has 4 wires, each phase draws very lower current 0.28A, with holding torque 36Ncm (51oz.in).
Electrical Specification
- Manufacturer Part Number: 17HS16-0284S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 36Ncm(51oz.in)
- Rated Current/phase: 0.28A
- Voltage: 15.7V
- Phase Resistance: 56ohms
- Inductance: 90mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 40mm
- Shaft Diameter: Φ5mm
- Shaft Length: 24mm
- D-cut Length: 15mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 300g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
- Full Datasheet: 17HS16-0284S.pdf
- Torque Curve: 17HS16-0284S_Torque_Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 36 |
| Holding Torque (oz.in) | 51 |
| Inductance(mH) | 90 |
| Phase Resistance(ohm) | 56 |
| Rated Current (A) | 0.28 |
| Step Angle(°) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 40 |
| Frame Size(mm) | 42x42 |
| Single Shaft/Dual Shaft | Single Shaft |
| Shaft Type | D-Cut |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 24 |
| No. of Lead | 4 |
| Lead Length(mm) | 500 |
| Weight(g) | 280 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
