4 Axis CNC Kit 8.5Nm(1204oz.in) 1.8 Deg Nema 34 Stepper Motor & Driver & Power Supply
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$645.62

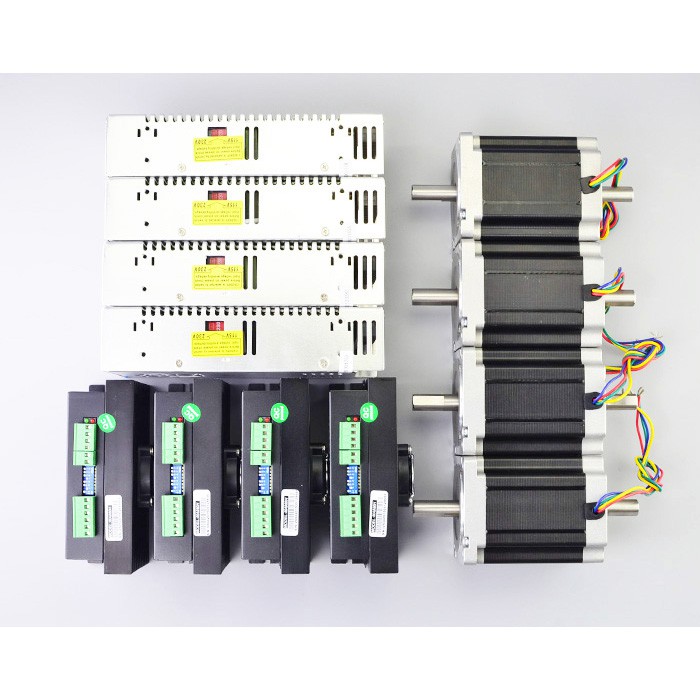

This CNC kit included:

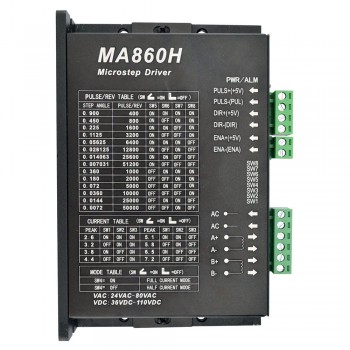

- 4 x Stepper Motor Driver 2.4-7.2A Max 80VAC or 110VDC MA860H
- 4 x 8.5Nm (1204oz.in) of Nema 34 Stepper Motor

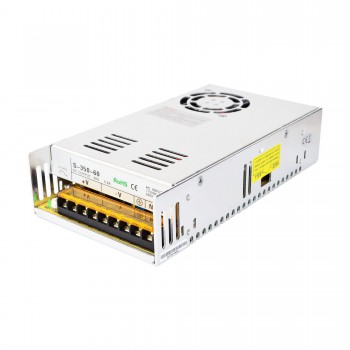

- 4 x 350W 60V 5.9A 115/230V Switching Power Supply
Driver Specification
- Supply voltage up to 80VAC or +110VDC
- Output current up to 7.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
- Suitable for 2-phase and 4-phase motors
- Short-voltage, over-voltage, over-current and short-cicuit protection
Motor Specification

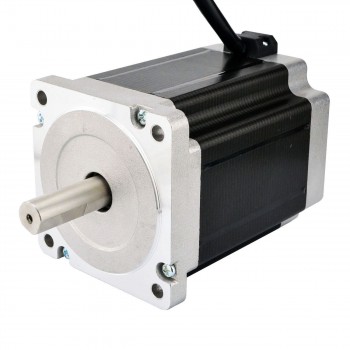

- Manufacturer Part Number: 34HS46-5004D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 8.5Nm(1204oz.in)
- Rated Current/phase: 5A
- Voltage: 5V
- Phase Resistance: 1ohms
- Inductance: 11mH ± 20%(1KHz)
- Frame Size: 86 x 86mm
- Body Length: 114mm
- Shaft Diameter: Φ14mm
- Shaft Length: 37mm
- D-cut Length: 25mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 3.6kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Power Specification
- 60V DC 5.9A output
- AC input voltage range: 93~132V/176~264VAC
- 115V/230V AC selected by switch
- Forced air cooling by built-in DC fan
- Low output ripple and yawp
- Over current, over voltage, short circuit and overheat protections
- 215*115*50mm (L*W*H)
Resources
- Motor Datasheet: 34HS46-5004D.pdf
- Motor Torque Curve: 34HS46-5004D_Torque_Curve.pdf
- Driver Manual: MA860H.pdf
- Power Supply Manual: S-350-60.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 114 |
| Holding Torque (Ncm) | 850 |
| Holding Torque (oz.in) | 1203.7 |
| Inductance(mH) | 11 |
| Lead Length(mm) | 300 |
| Motor Nema Size | Nema 34 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1 |
| Rated Current (A) | 5 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 36 - 110VDC / 24 - 80VAC |
| Output Current(A) | 2.6 - 7.2 |
| Microstep(Steps/rev.) | 400 - 51200 |
| Max. Pulse Input(kHZ) | 300 |
| Pulse Width(μs) | 1.5 |
| Physical Specification | |
| Weight(g) | 21700 |
