4 Axis CNC Kit TB6560 CNC Kit 1.9Nm(269oz.in) 1.8 Deg Nema 23 Stepper Motor & Driver
Special Offer in April 2024:
- $10 Off Over $150
- $20 Off Over $300
- $35 Off Over $500
- $55 Off Over $800
- $70 Off Over $1000
- $100 Off Over $1500
- Enjoy Discount at Checkout!
- Valid Till April 30th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$172.07

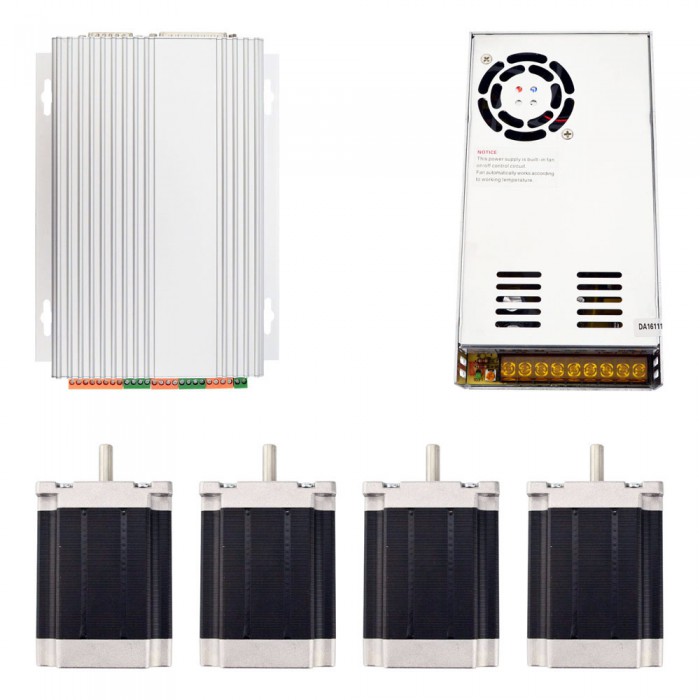

This CNC kit included:
- 1 x 4 Axis TB6560 CNC Stepper Motor Driver Board
- 4 x 1.9Nm (269oz.in) of Nema 23 Stepper Motor
- 1 x 250W 24V 10A 115/230V Switching Power Supply
- 1 x DB25 Parallel Cable & Manual CD

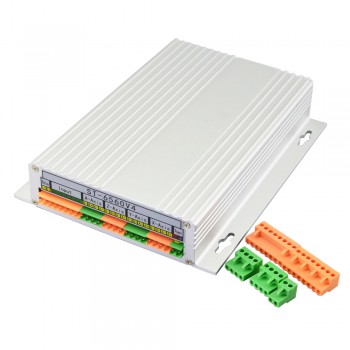

4 Axis TB6560 CNC Driver Board
- Toshiba TB6560AHQ chip - High power, maximum current 3.5A
- Resolution 1, 1/2, 1/8, 1/16 micro stepping output
- Working voltage DC12-DC30V, rated voltage 24V
- Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
- Half current function when no signal to prevent motor heating.
- Build with a 227V 10A Relay.
- Manual Control circuit included.
- Overload, over-current and over-temperature safety.
- Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
- Supports most parallel software MACH3, KCAM4, EMC2 etc.
- Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.

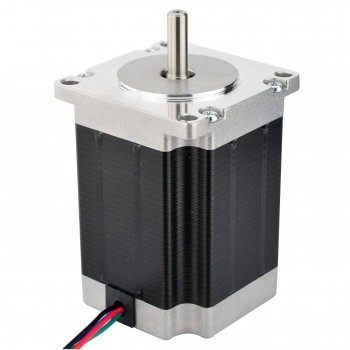

Stepper Motor
- Manufacturer Part Number: 23HS30-2804S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 1.9Nm (269oz.in)
- Rated Current/phase: 2.8A
- Voltage: 3.2V
- Phase Resistance: 1.13ohms
- Inductance: 5.4mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 76mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 1100g

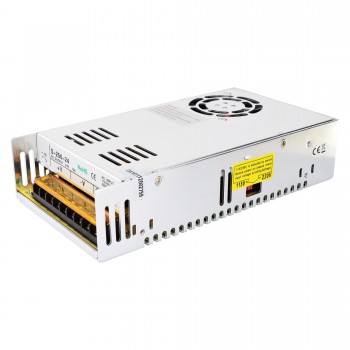

Switching Power Supply
- 24V DC 10A output
- AC input voltage range: 90~132V/180~264VAC
- 115V/230V AC selected by switch
- Forced air cooling by built-in DC fan
- Low output ripple and yawp
- Over current, over voltage, short circuit and overheat protections
- 215*115*50mm (L*W*H)
Resources
- Driver Manual: ST-6560V4.pdf
- Motor Datasheet: 23HS30-2804S.pdf
- Power Supply Manual: S-250-24.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Motor Specification | |
|---|---|
| Step Angle(°) | 1.8 |
| Body Length(mm) | 76 |
| Holding Torque (Ncm) | 189 |
| Holding Torque (oz.in) | 267.6 |
| Inductance(mH) | 5.4 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 23 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 1.13 |
| Rated Current (A) | 2.8 |
| Shaft Diameter(mm) | 6.35 |
| Shaft Length(mm) | 21 |
| Stepper Driver Specification | |
| Driving Voltage(V) | 12 - 30 |
| Output Current(A) | 0.7 - 3.5 |
| Microstep(Steps/rev.) | 200 - 3200 |
| Max. Pulse Input(kHZ) | 40 |
| Physical Specification | |
| Weight(g) | 6500 |
