4 Axis TB6560 CNC Kit 0.59Nm(83.6oz.in) Nema 17 Stepper Motor & Driver

NO.:SKU:4-TB6560-17HS19
Review: Post a review
Latest price:$130.70
Buy It Now:$100.54
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$94.95 $89.37 $83.78 $78.20
Add To Cart

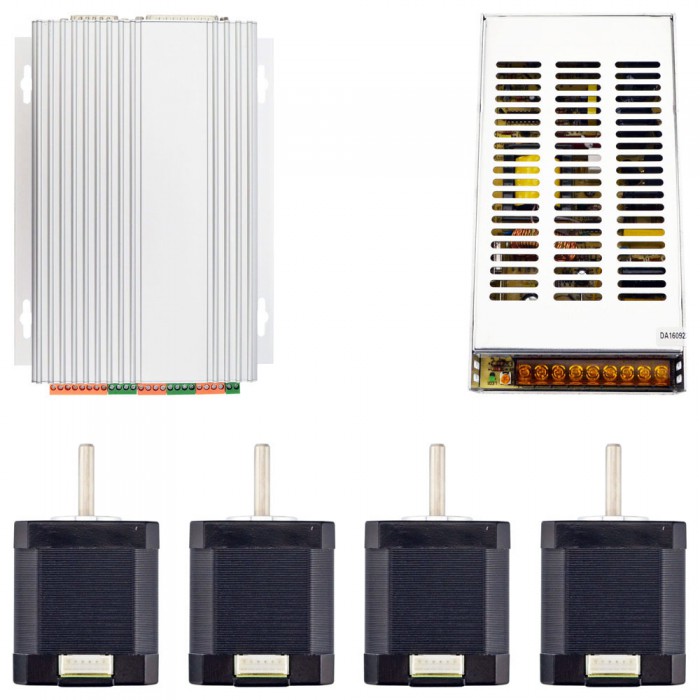

This CNC kit included:

  • 1 x 4 Axis TB6560 CNC Stepper Motor Driver Board
  • 4 x 0.45Nm (64oz.in) of Nema 17 Stepper Motor
  • 1 x 201W 24V 8.3A 115/230V Switching Power Supply
  • 1 x DB25 Parallel Cable & Manual CD

4 Axis TB6560 CNC Driver Board

  • Toshiba TB6560AHQ chip - High power, maximum current 3.5A
  • Resolution 1, 1/2, 1/8, 1/16 micro stepping output
  • Working voltage DC12-DC30V, rated voltage 24V
  • Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
  • Half current function when no signal to prevent motor heating.
  • Build with a 227V 10A Relay.
  • Manual Control circuit included.
  • Overload, over-current and over-temperature safety.
  • Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
  • Supports most parallel software MACH3, KCAM4, EMC2 etc.
  • Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.

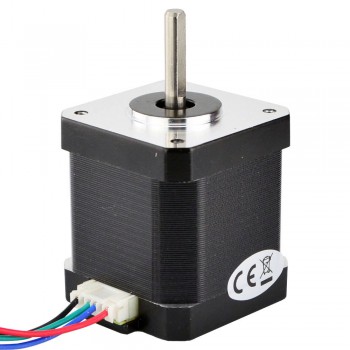

Stepper Motor

  • Manufacturer Part Number: 17HS19-1684S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.45Nm (64oz.in)
  • Rated Current/phase: 1.68A
  • Voltage: 2.8V
  • Phase Resistance: 1.65ohms
  • Inductance: 2.8mH ± 20%(1KHz)
  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 400g

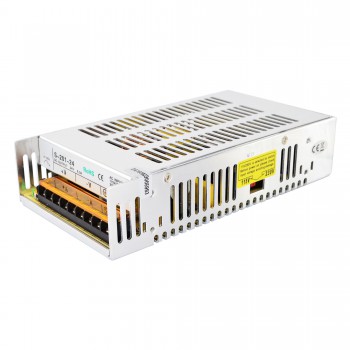

Switching Power Supply

  • 24V DC 8.3A output
  • AC input voltage range: 93~132V/176~264VAC
  • 115V/230V AC selected by switch
  • High efficiency low cost
  • Free air cooling convection
  • Low output ripple and yawp
  • Over current, over voltage, short circuit and overheat protections
  • 215*115*50mm (L*W*H)

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: 4 Axis 8.5Nm(1204oz.in) Nema 34 Stepper Motor & Driver & Power Supply
Next: 4 Axis TB6560 CNC Kit 1.26Nm(178.5oz.in) Nema 23 Stepper Motor & Driver
Motor Specification
Body Length(mm) 48
Holding Torque (Ncm) 45
Holding Torque (oz.in) 63.7
Inductance(mH) 2.8
Lead Length(mm) 1000
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 1.65
Rated Current (A) 1.68
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Step Angle(°) 1.8
Stepper Driver Specification
Driving Voltage(V) 12 - 30
Output Current(A) 0.7 - 3.5
Microstep(Steps/rev.) 200 - 3200
Max. Pulse Input(kHZ) 40
Physical Specification
Weight(g) 3550
