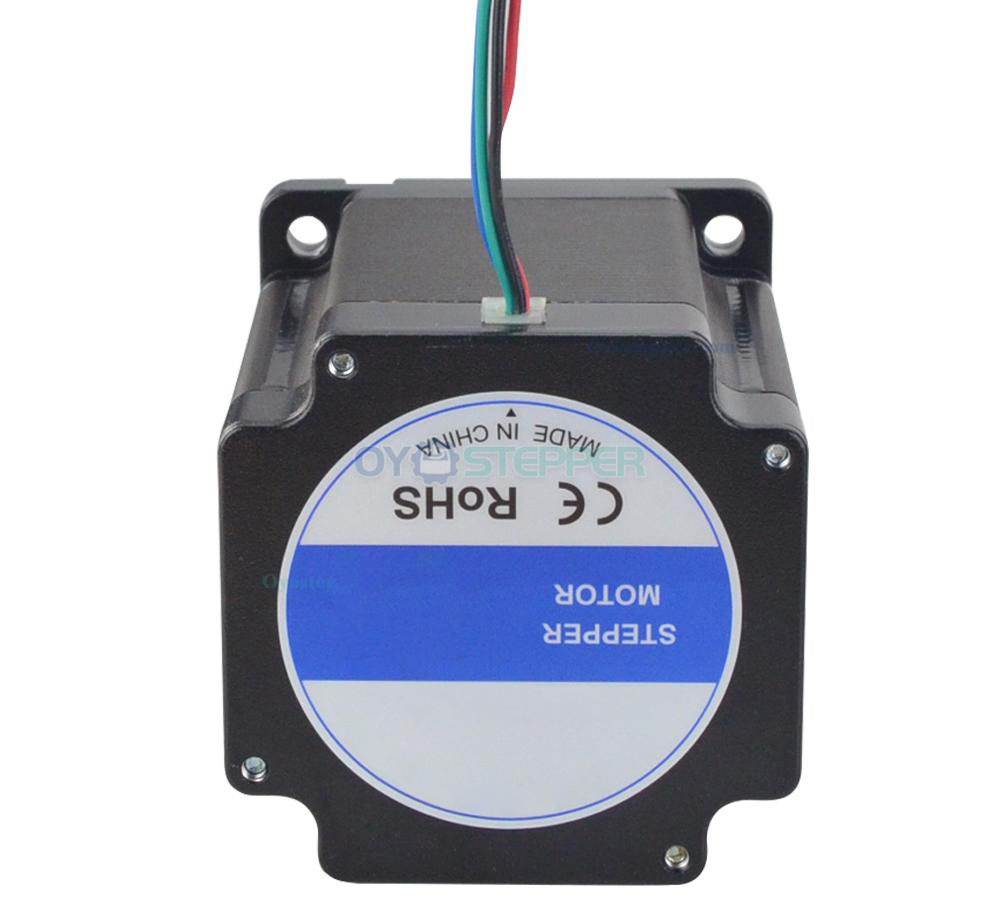

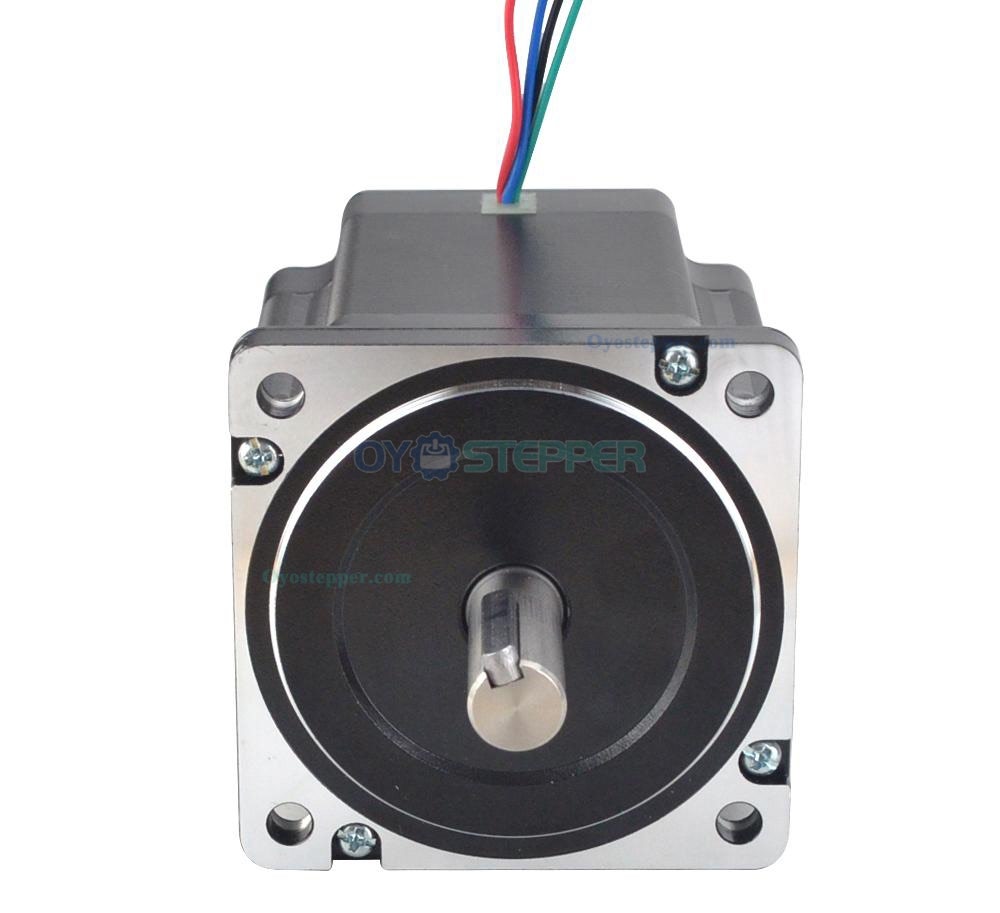

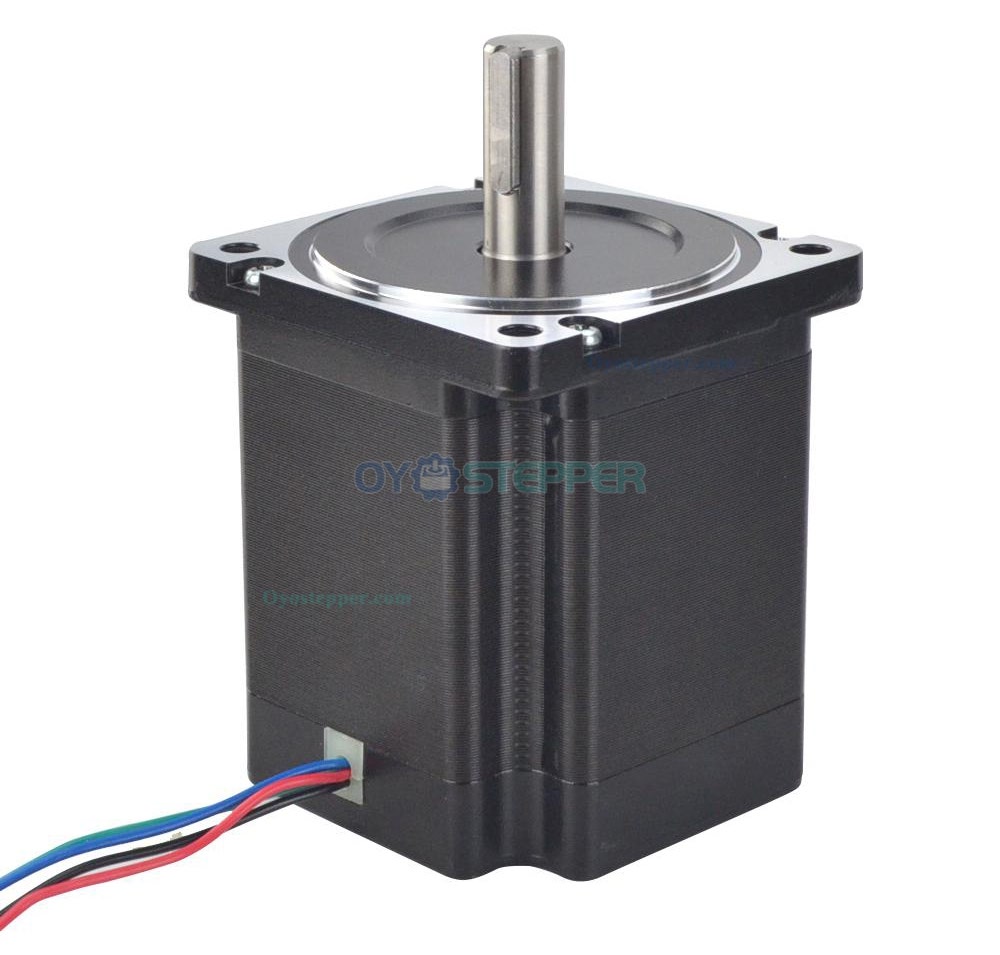

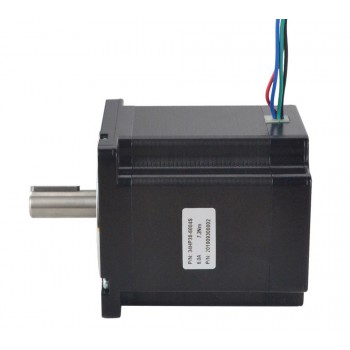

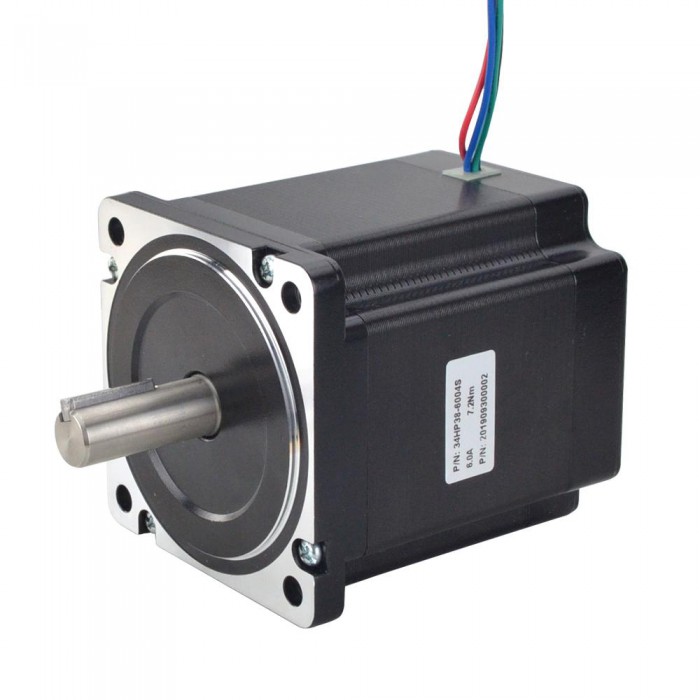

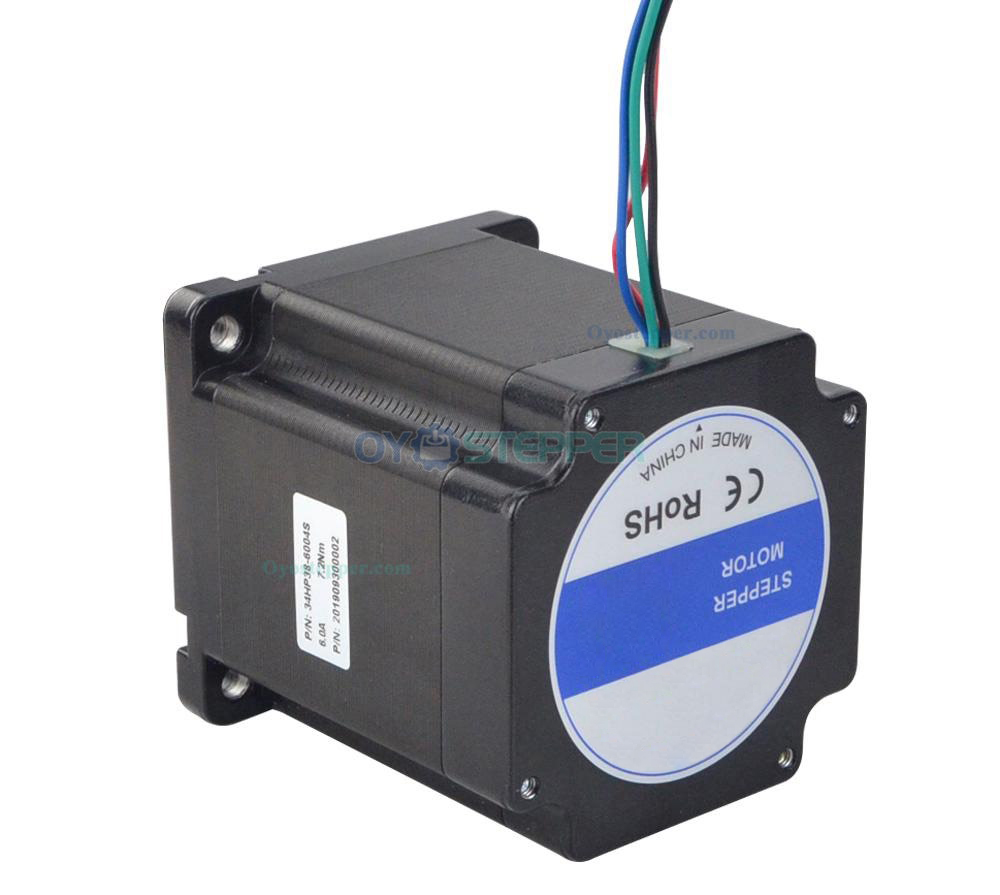

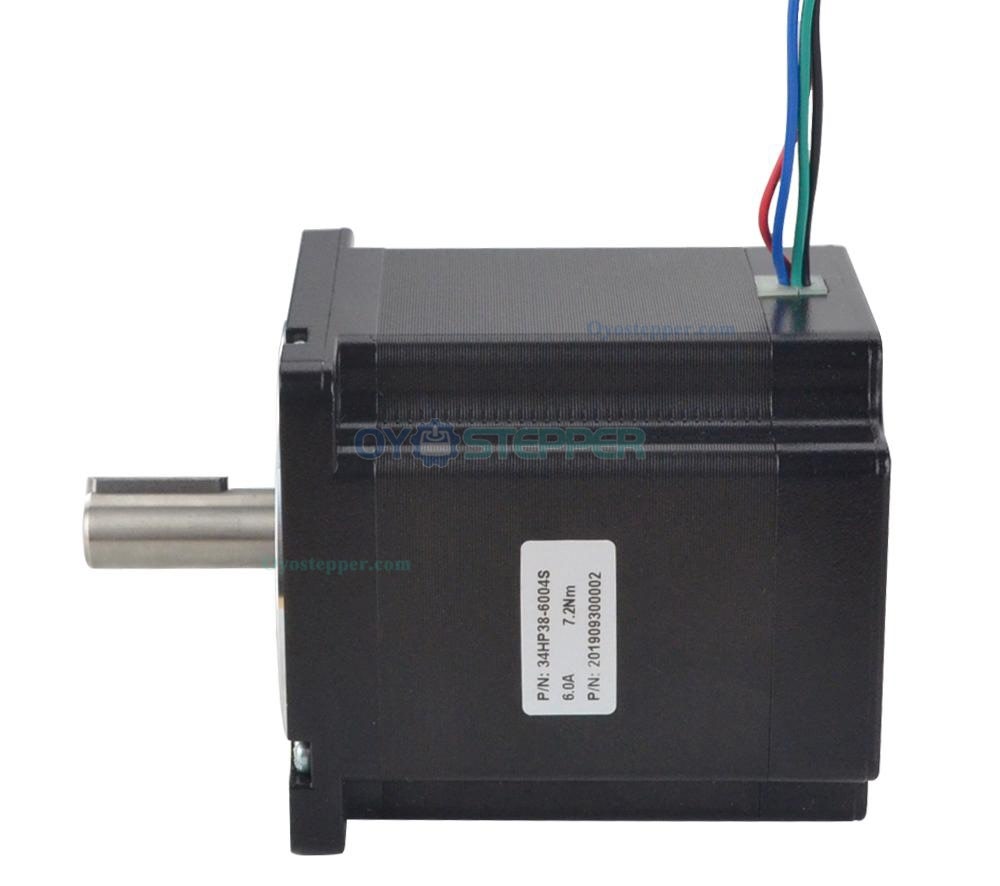

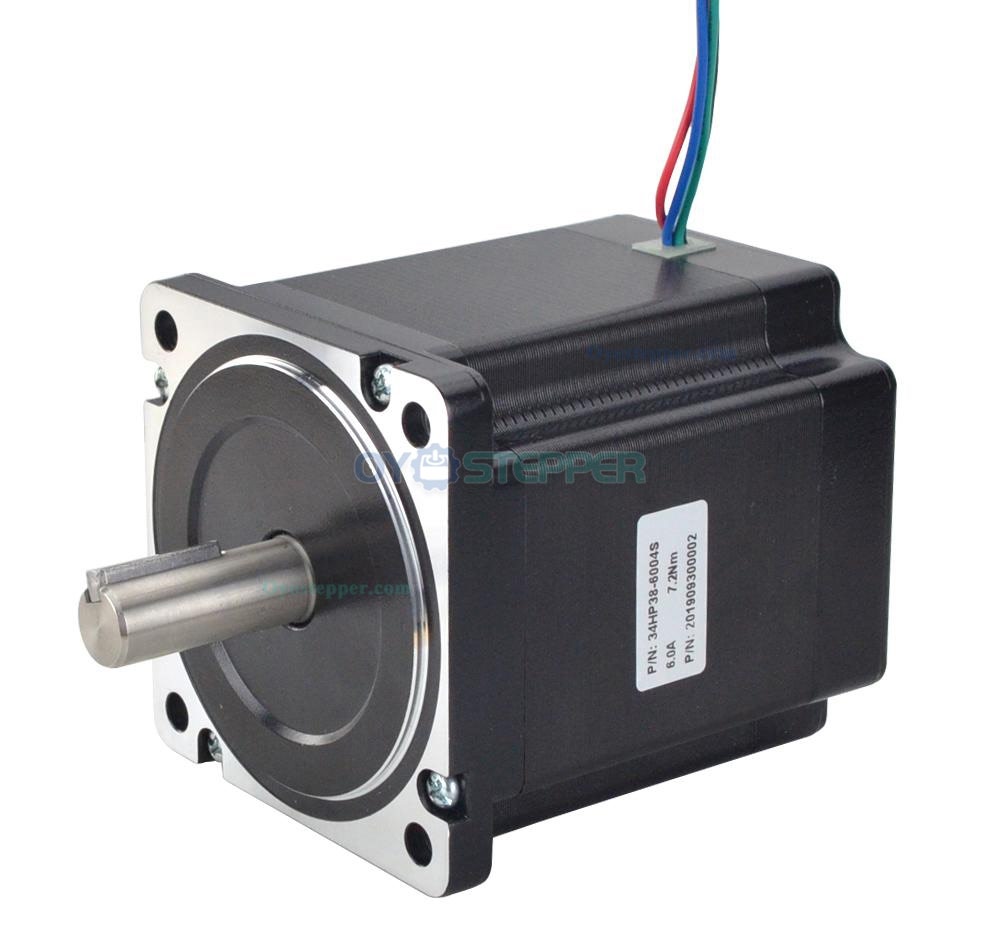

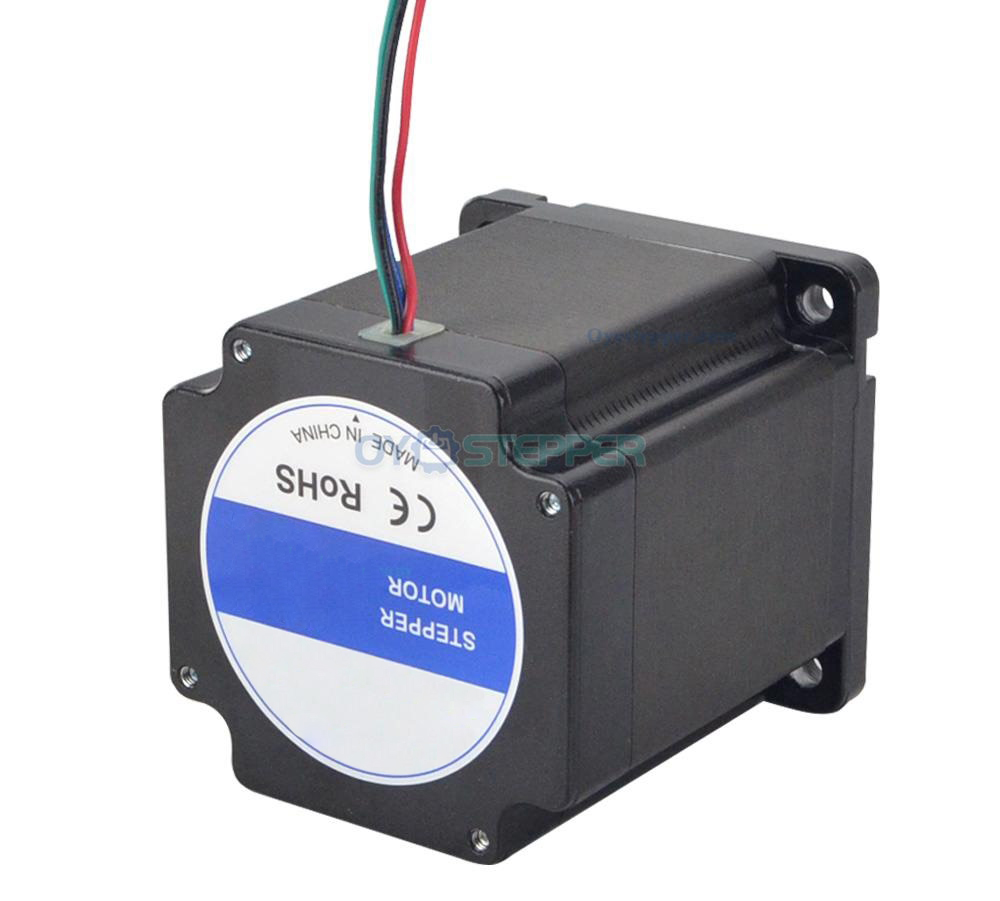

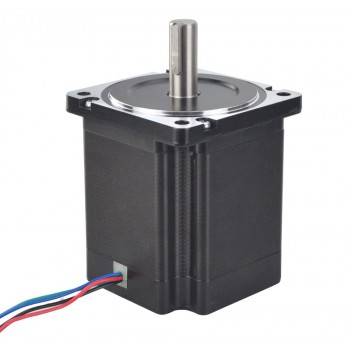

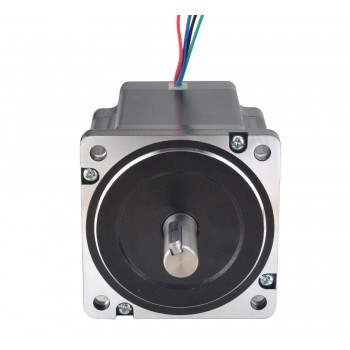

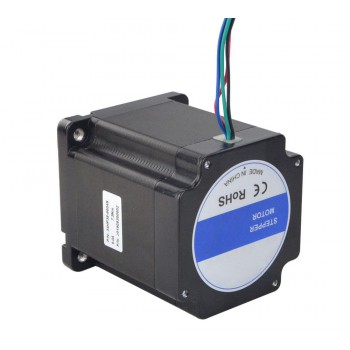

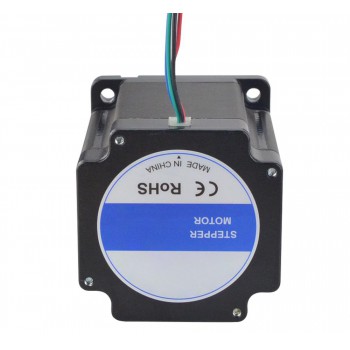

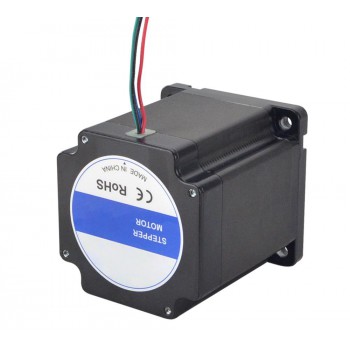

Nema 34 High Torque Stepper Motor Bipolar 1.8 Degree 7.2 Nm(1019.81oz.in) 6.0A 2 Phase 4 Wires Keyway Shaft
Electrical Specification
Manufacturer Part Number: 34HP38-6004S
Number Of Phase: 2
Step Angle: 1.8 deg
Holding Torque: 7.2 Nm(1019.81oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.52 ohms± 10%
Inductance: 4.0 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 95.3 mm
Shaft Diameter: Φ14 mm
Shaft Length: 37 mm
Keyway Shaft Length: 25 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 3 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
GRN
|
RED
|
BLU
|
Resources
Full Datasheet: 34HP38-6004S.pdf
Torque Curve: 34HP38-6004S Torque Curve.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 86x86 |
| Body Length(mm) | 95.3 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 37 |
| Shaft Type | Keyway |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 3000 |
| Electrical Specification | |
| Holding Torque (Ncm) | 720 |
| Holding Torque (oz.in) | 1019.81 |
| Inductance(mH) | 4.0 |
| Phase Resistance(ohm) | 0.52 |
| Rated Current (A) | 6.0 |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
