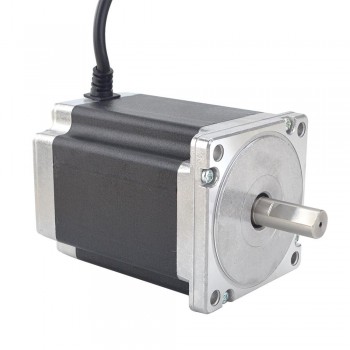

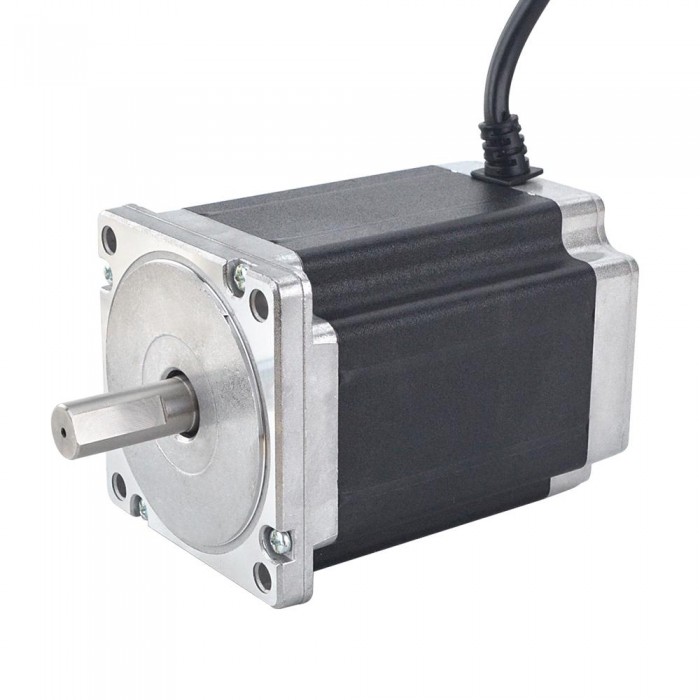

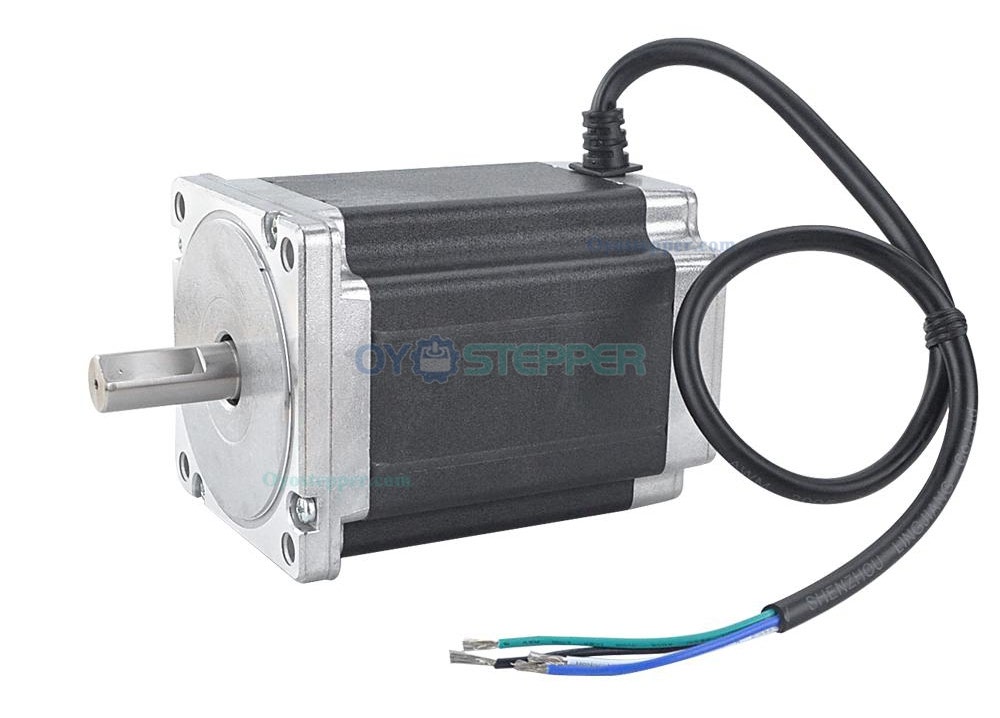

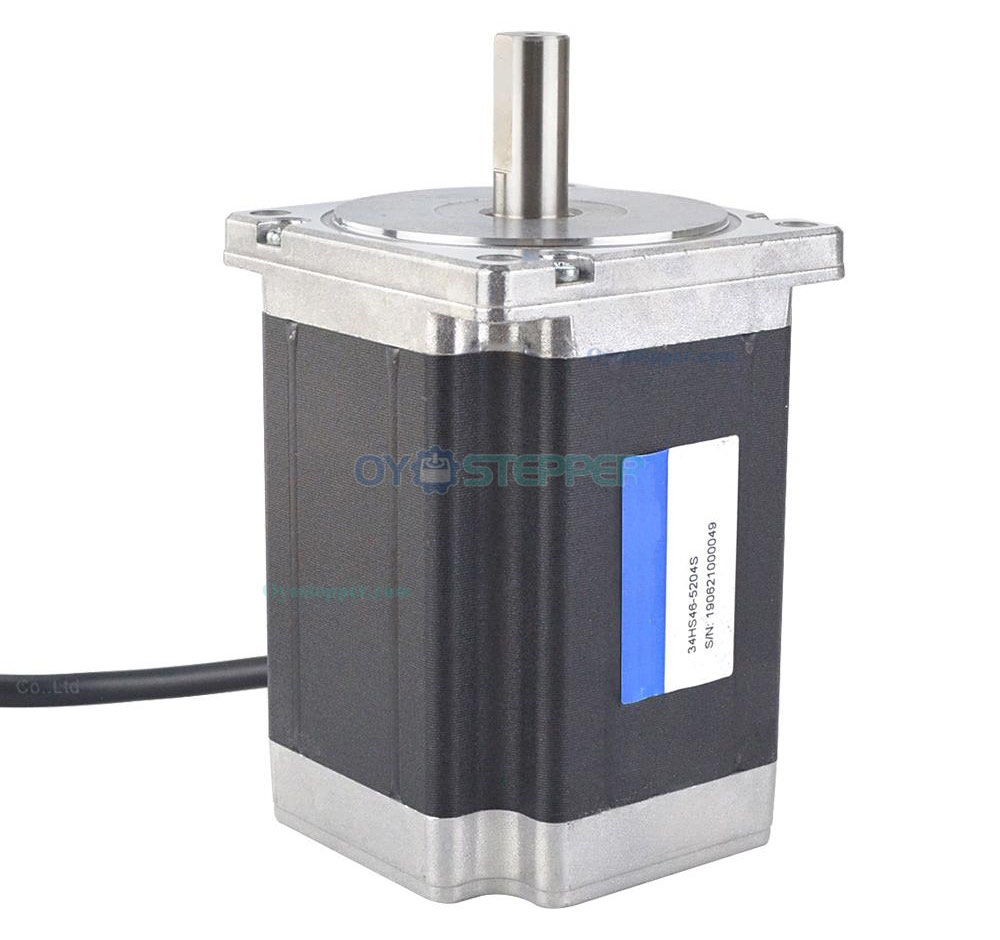

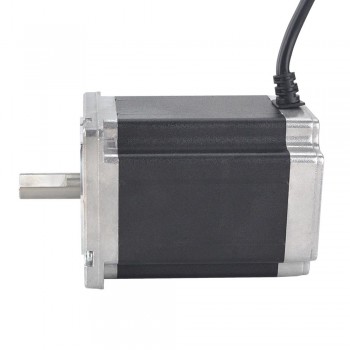

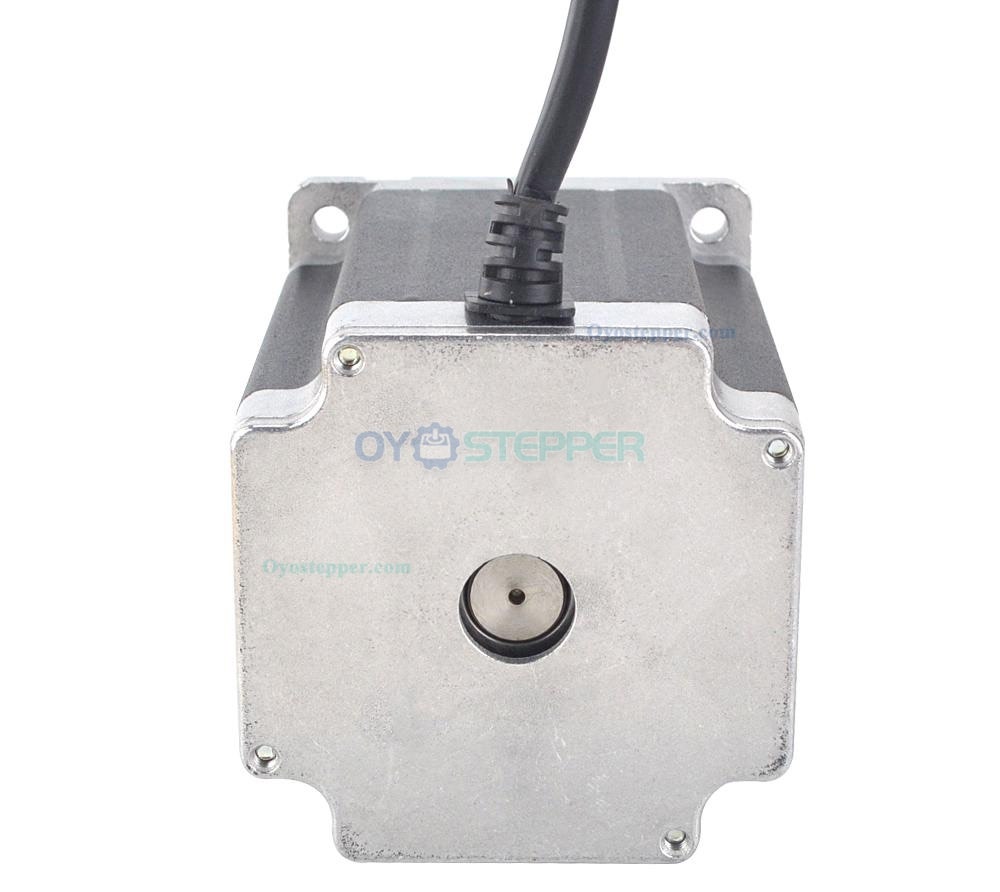

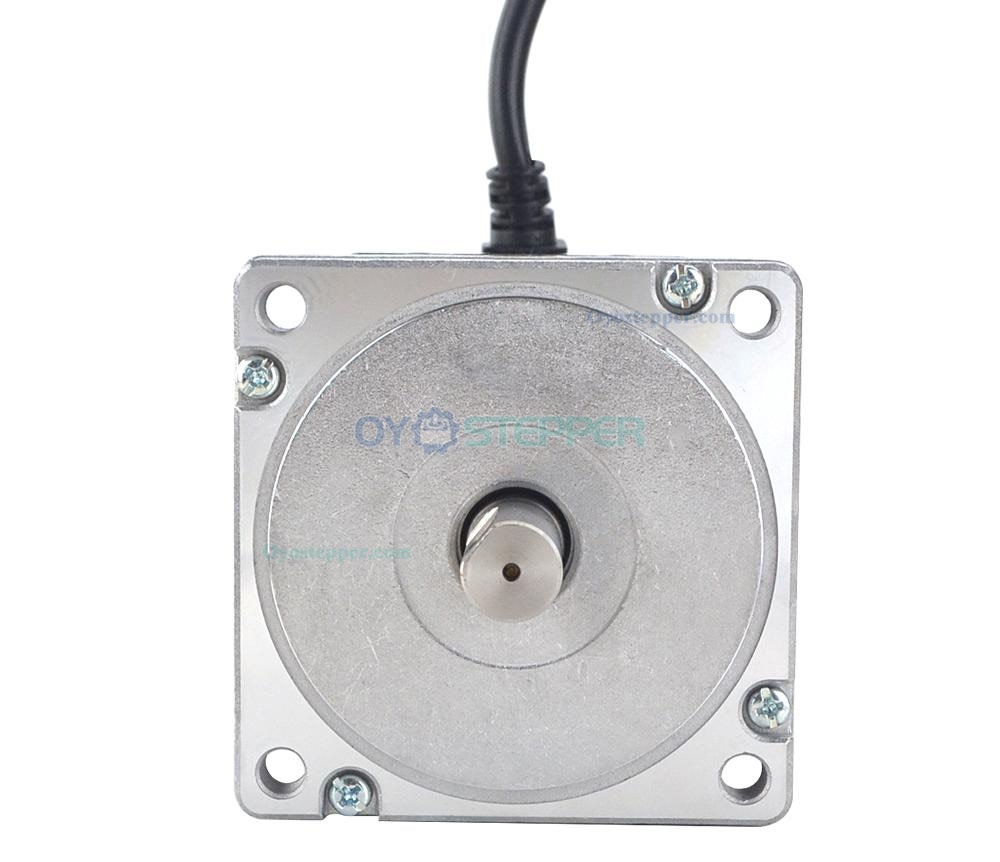

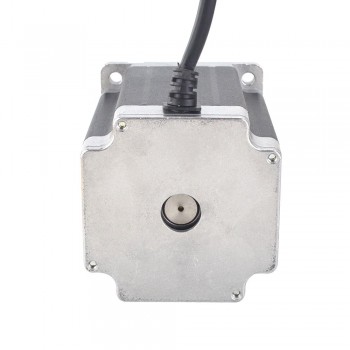

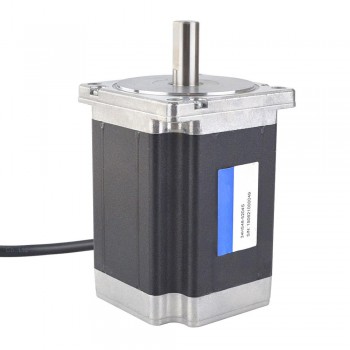

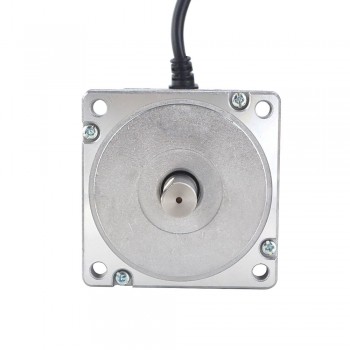

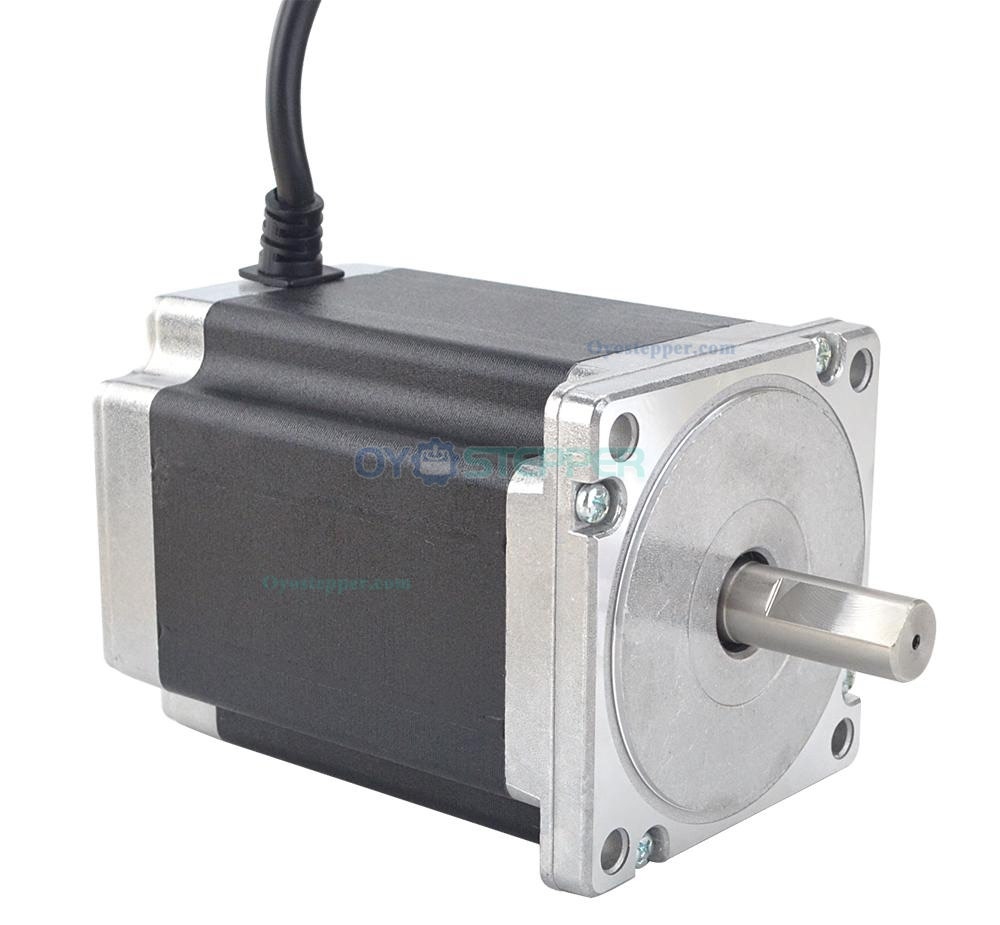

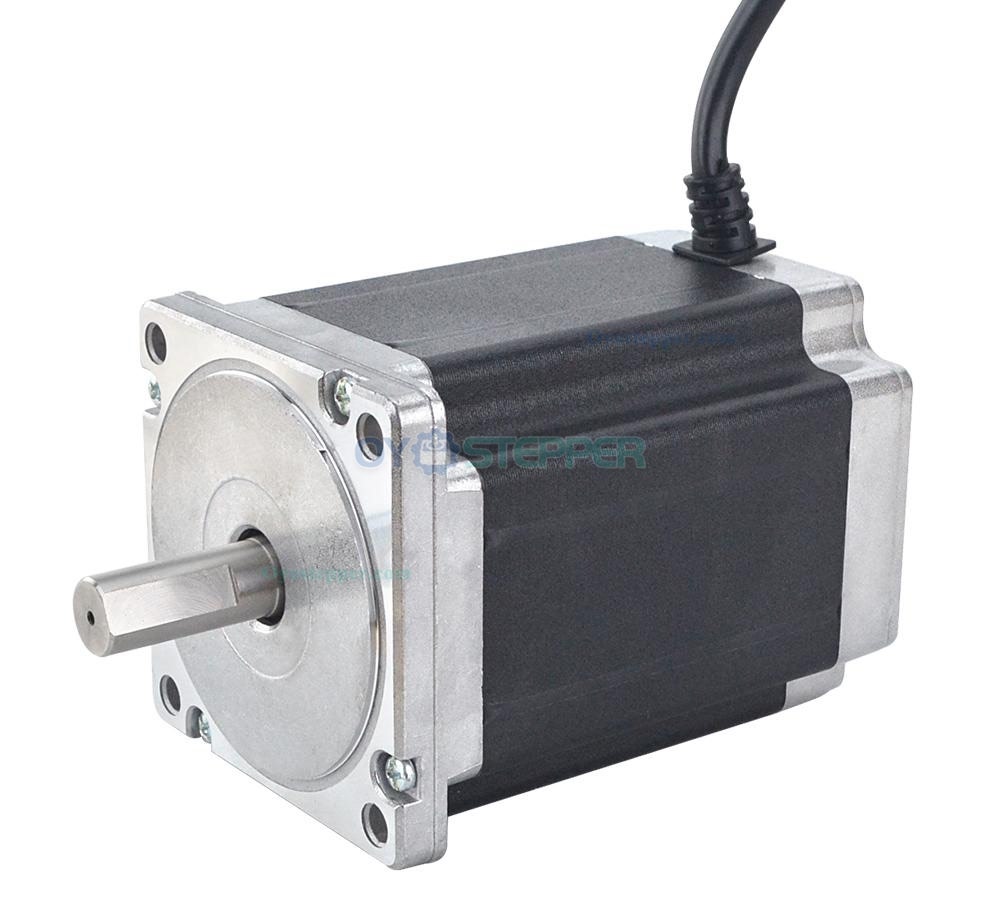

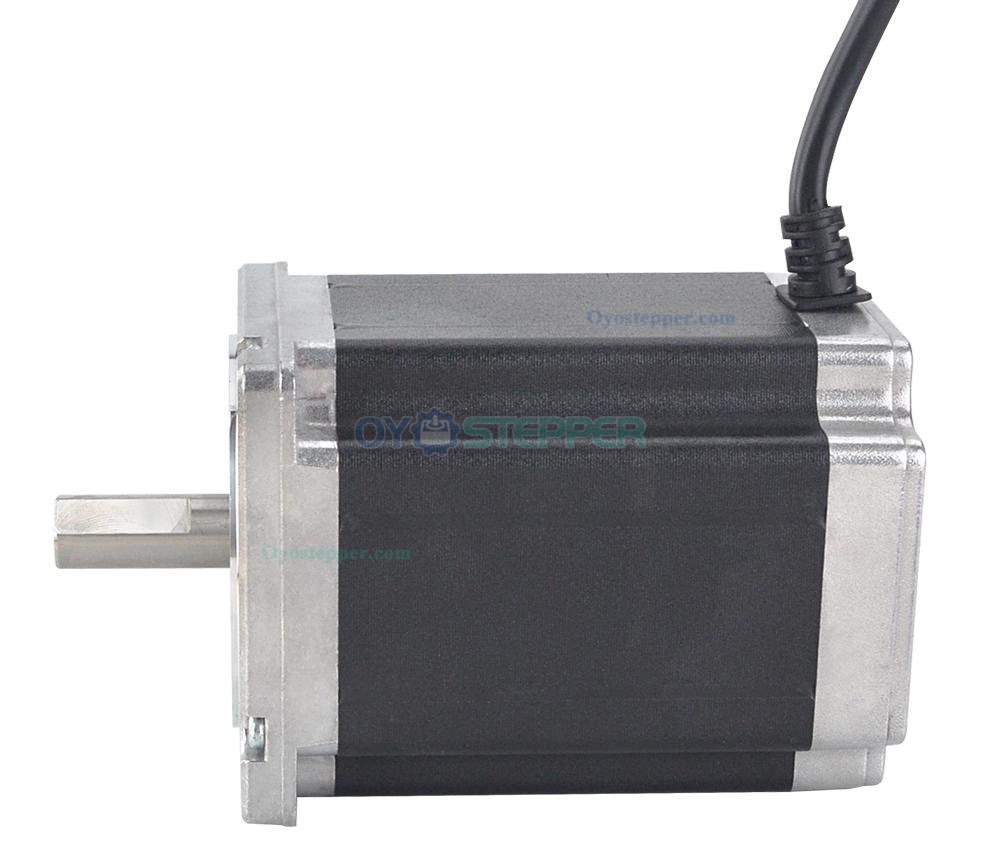

Nema 34 CNC Stepper Motor 8.5Nm (1203.94oz.in) 86x86x117.0mm 4 Wires

NO.:34HS46-5204S
Review: Post a review
Latest price:$68.99
Buy It Now:$45.99
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$44.00 $42.00 $42.00 $42.00
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 34HS46-5204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 8.5 Nm(1203.94oz.in)
  • Rated Current/phase: 5.2 A
  • Phase Resistance: 0.50 ohms± 10%
  • Inductance: 6.0 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 86 x 86 mm
  • Body Length: 117 mm
  • Shaft Diameter: Φ14 mm
  • Shaft Length: 34 mm
  • D-cut Shaft Length: 25 mm
  • Number of Leads: 4
  • Lead Length: 500 mm
  • Weight: 4.1 kg

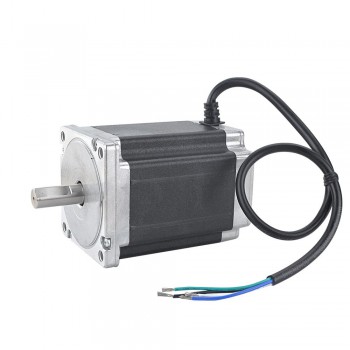

Connection

A+
A-
B+
B-
BLK
BLU
WHT
GRN



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 34 Bipolar 1.8deg 12 Nm(1700oz.in) 6.0A 86x86x150.6mm 4 Wires
Next: Nema 34 CNC Stepper Motor 12.0Nm (1699.68oz.in) 86x86x150.5mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 850
Holding Torque (oz.in) 1203.94
Inductance(mH) 6
Phase Resistance(ohm) 0.5
Rated Current (A) 5.2
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 117
Frame Size(mm) 86*86
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Weight(g) 4100
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
