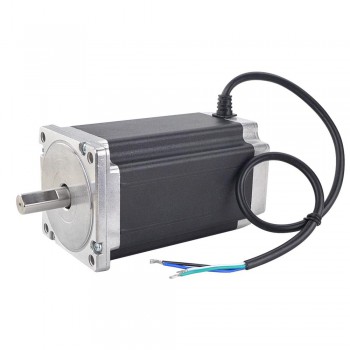

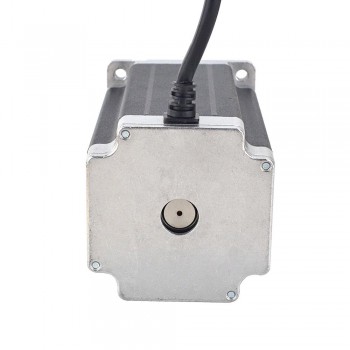

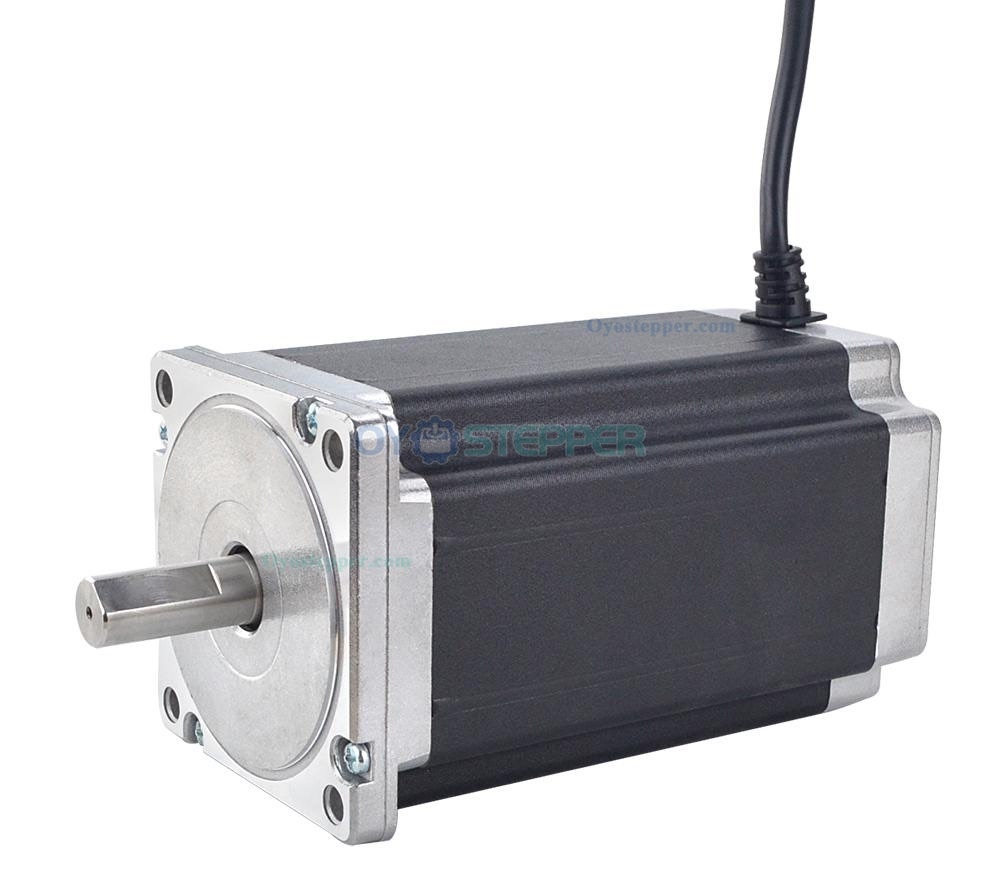

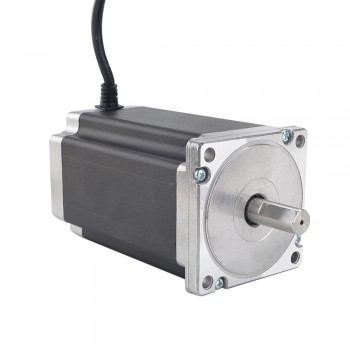

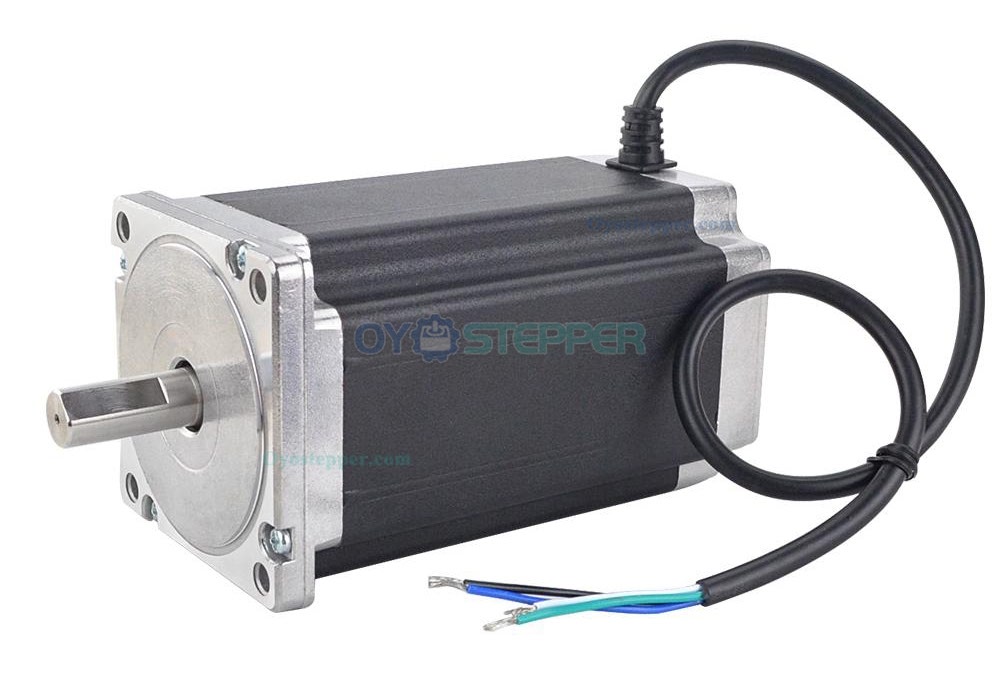

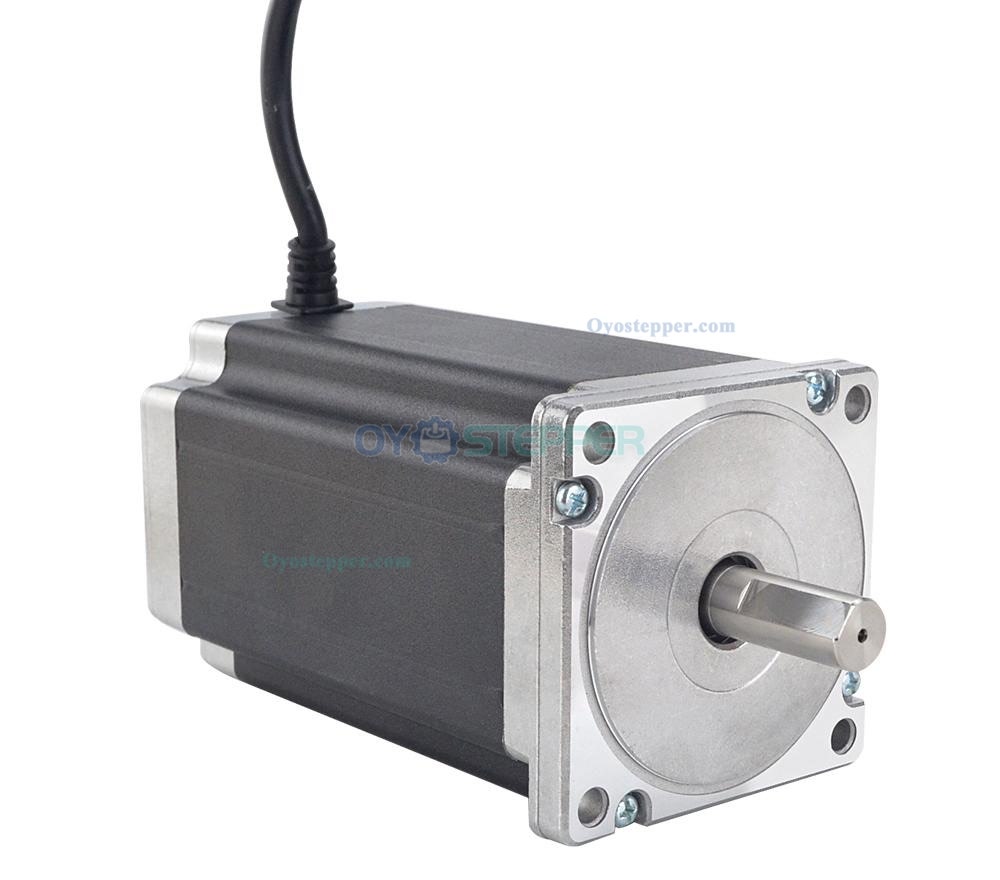

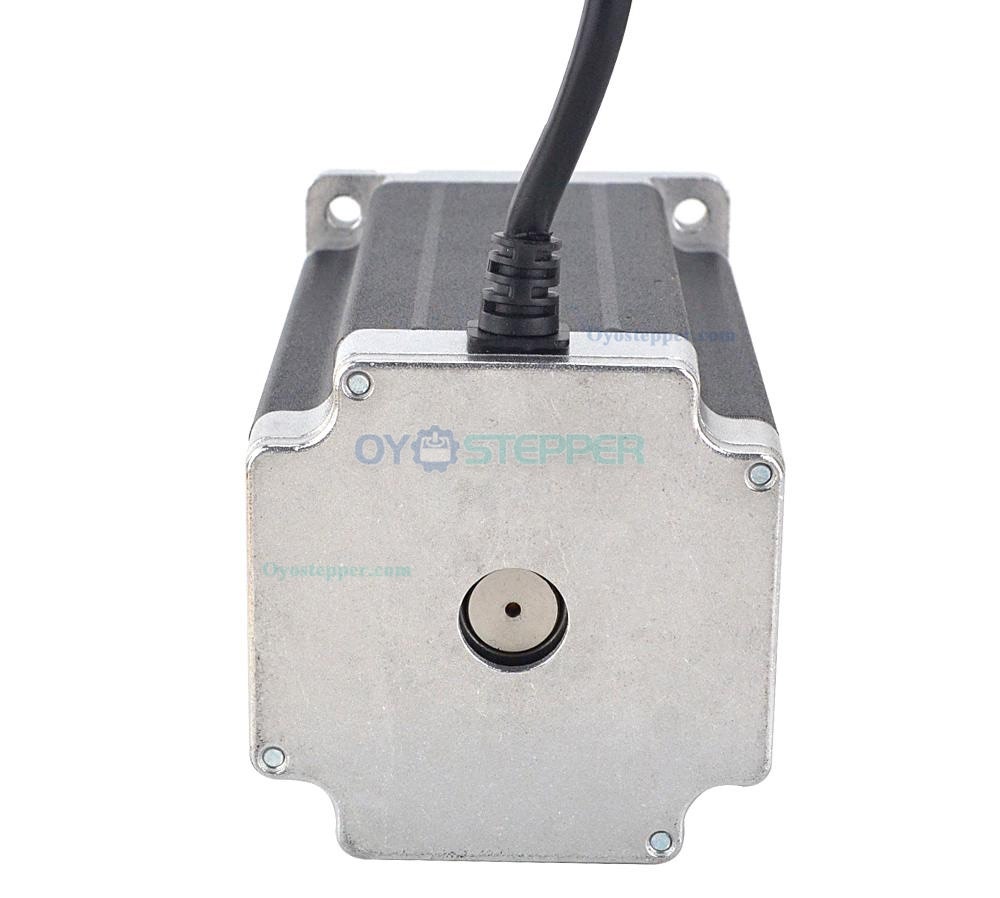

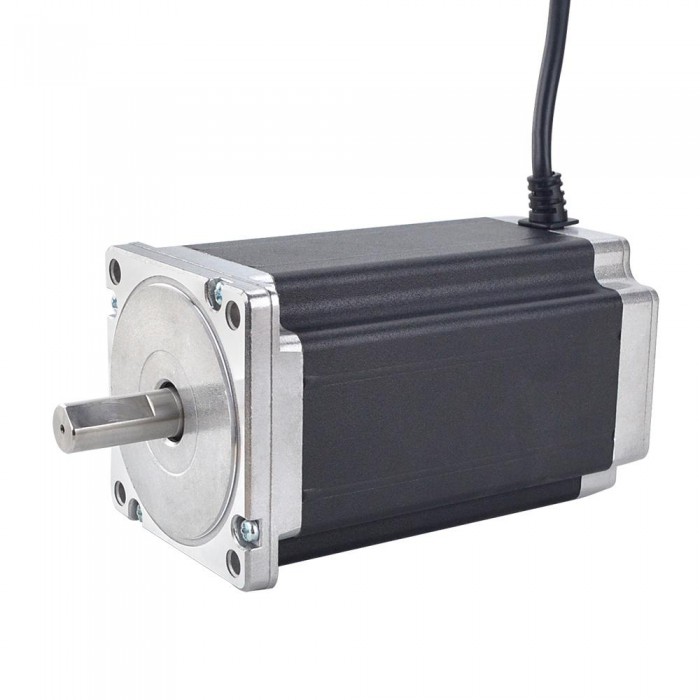

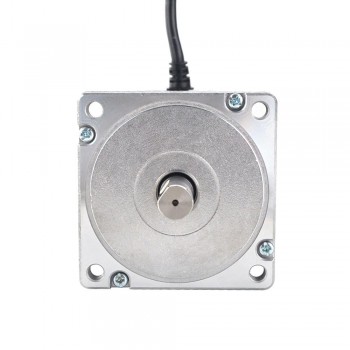

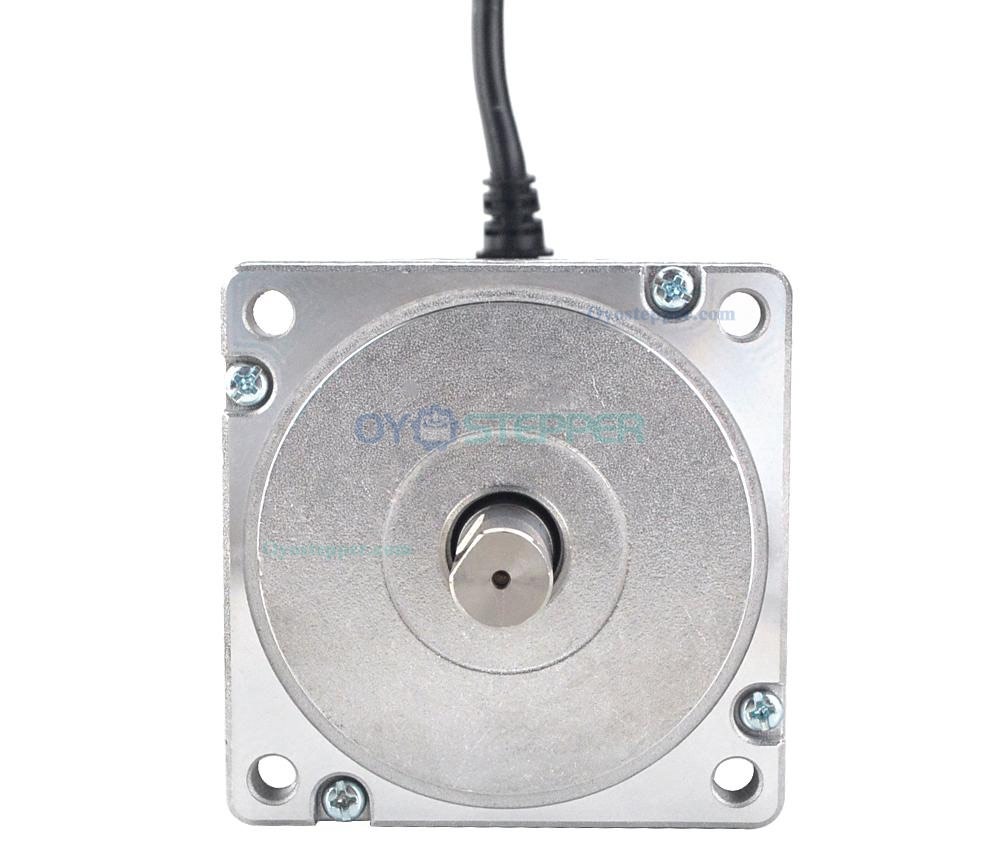

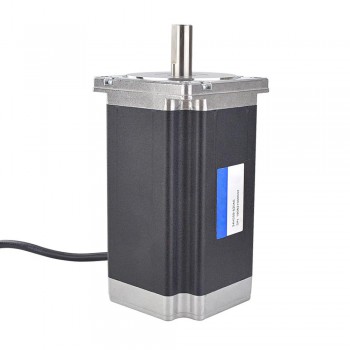

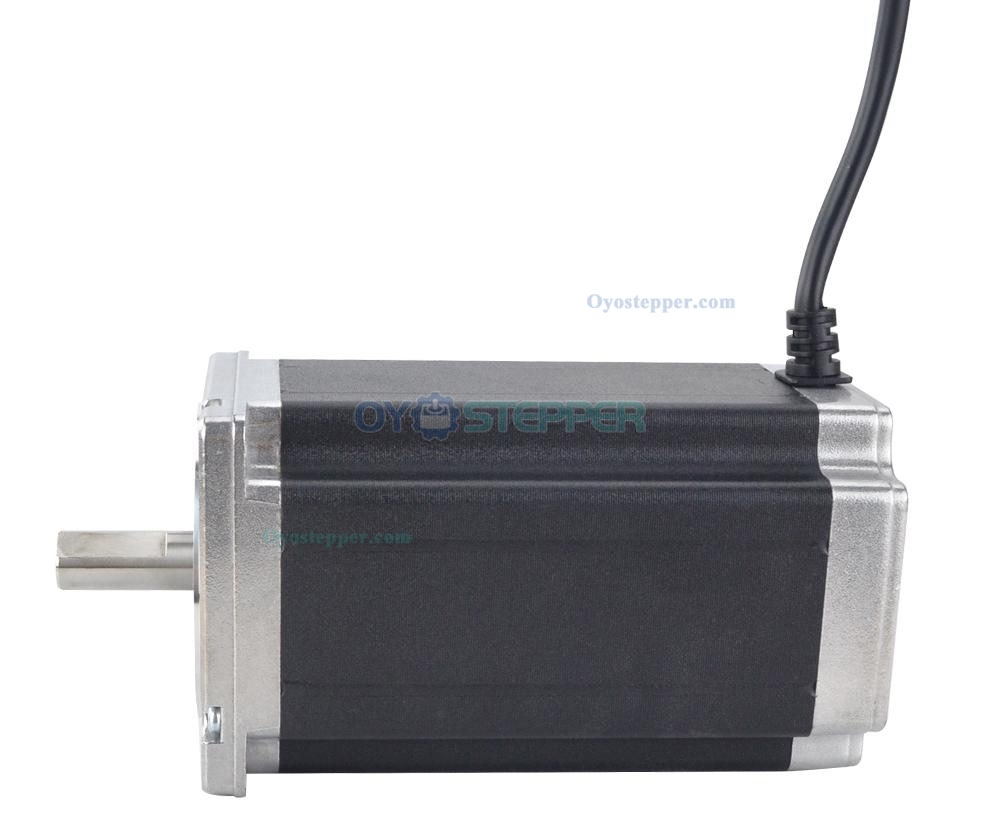

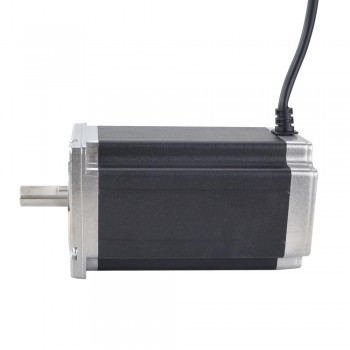

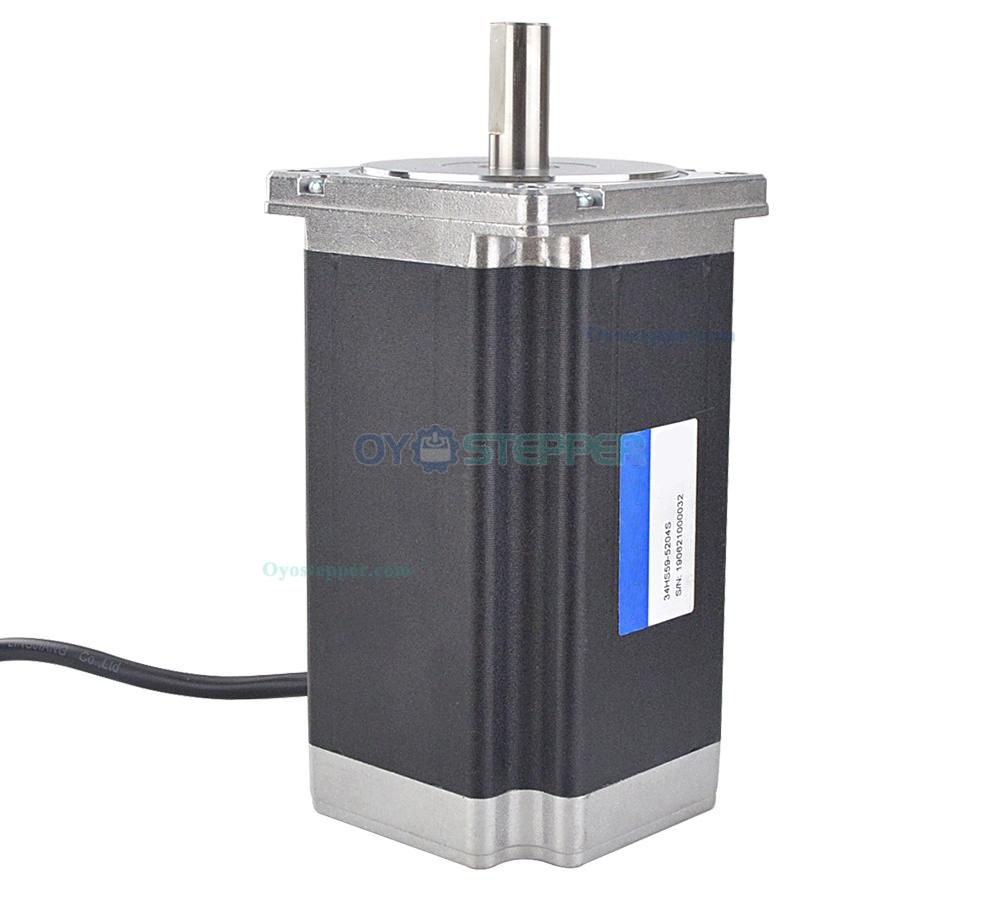

Nema 34 High Torque Bipolar CNC Stepper Motor 1.8 Deg 12.0Nm (1699.68oz.in) 86x86x150.5mm 5.2 A 4 Wires
Electrical Specification
Manufacturer Part Number: 34HS59-5204S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 12.0 Nm(1699.68oz.in)
Rated Current/phase: 5.2 A
Phase Resistance: 0.80 ohms± 10%
Inductance: 8.0 mH ± 20%(1KHz)
Physical Specification
Frame Size: 86 x 86 mm
Body Length: 150.5 mm
Shaft Diameter: Φ14 mm
Shaft Length: 34 mm
D-cut Shaft Length: 25 mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 5.4 kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
BLK
|
BLU
|
WHT
|
GRN
|
Resources
Full Datasheet: 34HS59-5204S.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| Frame Size(mm) | 86x86 |
| Lead Length(mm) | 500 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Single Shaft |
| Weight(g) | 5400 |
| Electrical Specification | |
| Holding Torque (Ncm) | 12 |
| Holding Torque (oz.in) | 1699.68 |
| Inductance(mH) | 8 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current (A) | 5.2 |
| Motor Specification | |
| Bipolar/Unipolar | Bipolar |
| Body Length(mm) | 150.5 |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
