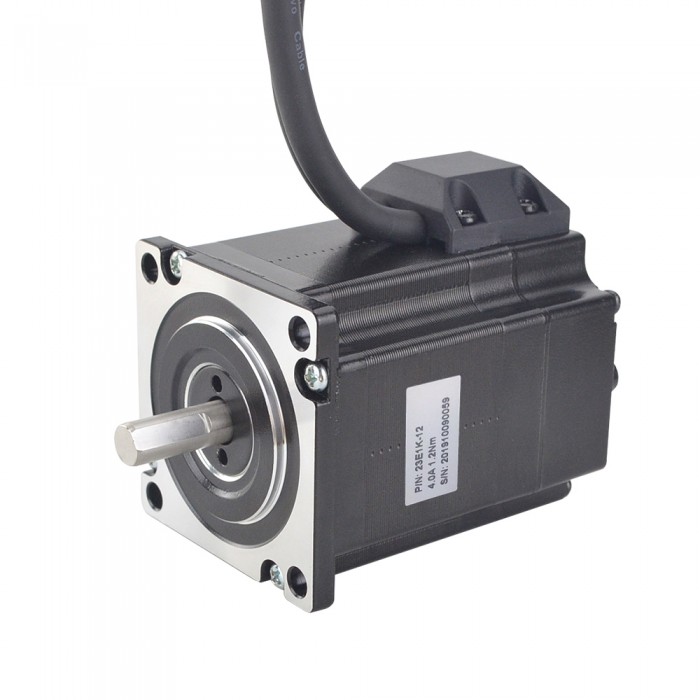

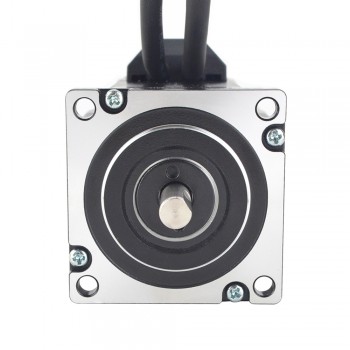

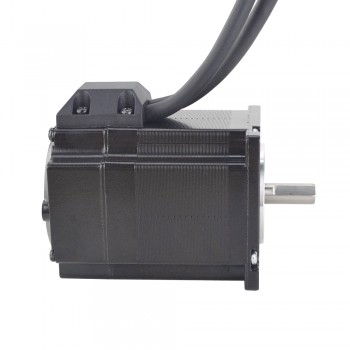

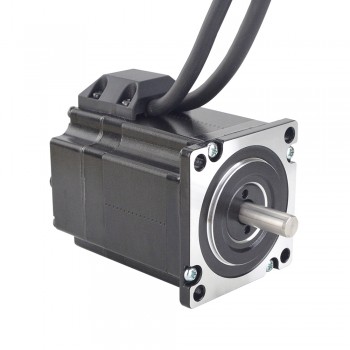

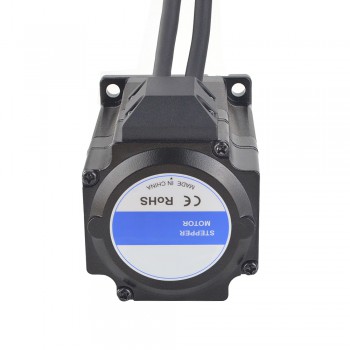

P Series Nema 23 Closed Loop Stepper Motor 1.2Nm/169.97oz.in with Encoder 1000CPR

NO.:23E1K-12
Review: Post a review
Latest price:$69.68
Buy It Now:$53.60
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$51.37 $49.14 $46.91 $44.68
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 23E1K-12
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 1.2 Nm(169.97 oz.in)
  • Rated Current/phase: 4.0 A
  • Phase Resistance: 0.45 ohms
  • Inductance: 1.4 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57 mm
  • Body Length: 55.5 mm
  • Shaft Diameter: Φ8 mm
  • Shaft Length: 21 mm
  • D-Cut Shaft Length: 15 mm
  • Lead Length: 270 mm
  • Weight: 0.72 kg

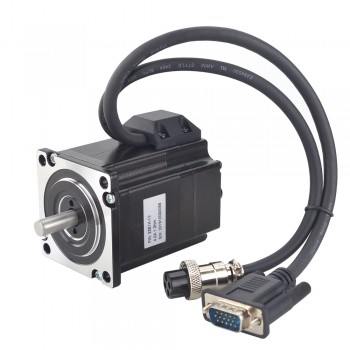

Encode Control(1000CPR)

  • white--GND
  • red--+5VCC
  • blue--EA-
  • black--EA+
  • green--EB-
  • yellow--EB+

Connection

A+
A-
B+
B-
White
Green
Blue
Black

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: P Series Nema 23 Closed Loop Stepper Motor 1.2Nm/169.97oz.in with Electromagnetic Brake
Next: P Series Nema 23 Closed Loop Stepper Motor 2Nm/283.28oz.in with Electromagnetic Brake
Motor Specification
Holding Torque (Ncm) 120
Holding Torque (oz.in) 169.97
Inductance(mH) 1.4
Lead Length(mm) 270
Motor Nema Size Nema 23
Phase Resistance(ohm) 0.45
Rated Current (A) 4.0
Shaft Diameter(mm) 8
Shaft Length(mm) 21
Step Angle(°) 1.8
Number Of Phase 2
Encoder Specification
Output Signal Channels 2
Resolution(CPR) 1000
