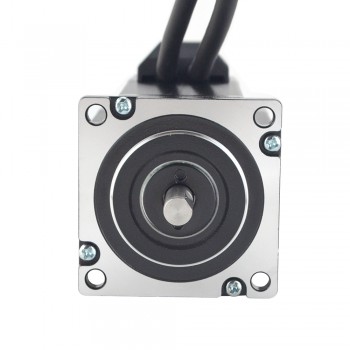

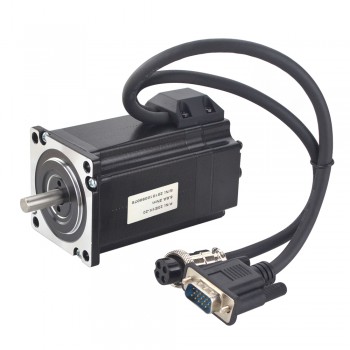

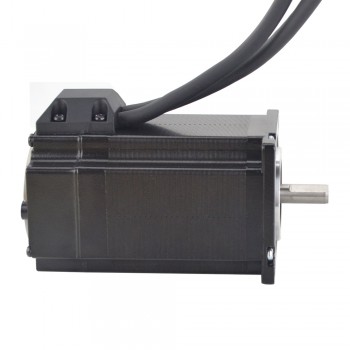

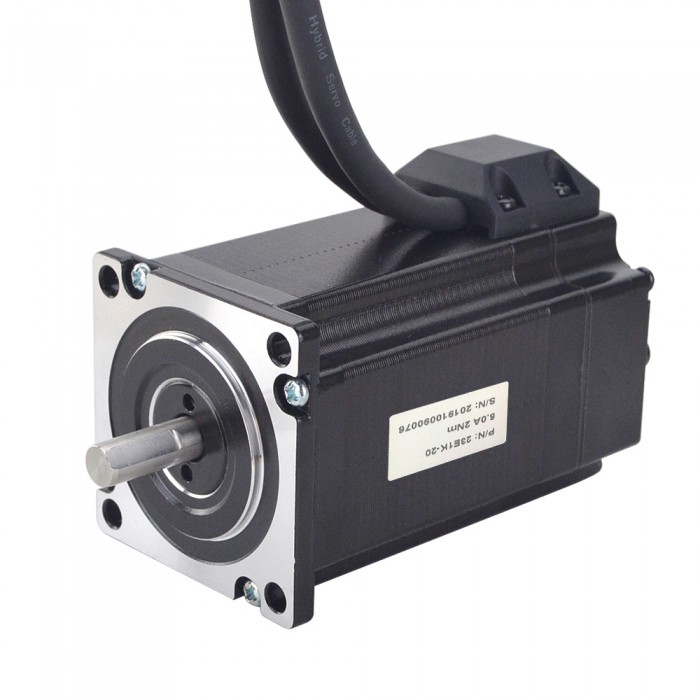

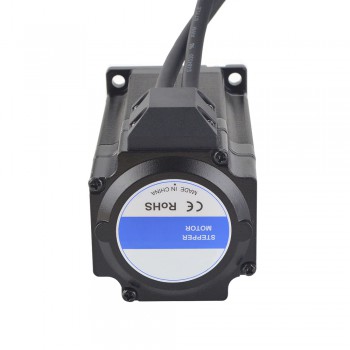

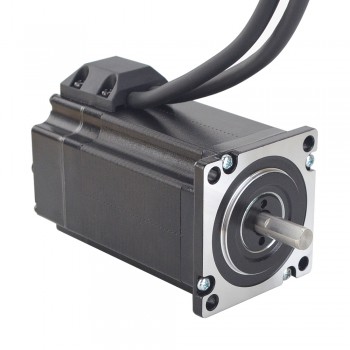

P Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2Nm 5.0A 2 Phase with Encoder 1000CPR
-
Manuals and Documentation:
Full Datasheet:
Torque Curve:
Our Price:$60.09
Electrical Specification
Manufacturer Part Number: 23E1K-20
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 2 Nm(283.28 oz.in)
Rated Current/phase: 5.0 A
Phase Resistance: 0.4 ohms
Inductance: 1.8 mH ± 20%(1KHz)
Physical Specification
Frame Size: 57 x 57 mm
Body Length: 76.5 mm
Shaft Diameter: Φ8 mm
Shaft Length: 21 mm
D-Cut Shaft Length: 15 mm
Lead Length: 270 mm
Weight: 1.06 kg
Encode Control(1000CPR)
white--GND
red--+5VCC
blue--EA-
black--EA+
green--EB-
yellow--EB+
Connection
|
A+
|
A-
|
B+
|
B-
|
|
White
|
Green
|
Blue
|
Black
|
| Motor Specification | |
|---|---|
| Holding Torque (Ncm) | 200 |
| Holding Torque (oz.in) | 283.28 |
| Inductance(mH) | 1.8 |
| Lead Length(mm) | 270 |
| Motor Nema Size | Nema 23 |
| Phase Resistance(ohm) | 0.4 |
| Rated Current (A) | 5.0 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 21 |
| Step Angle(°) | 1.8 |
| Number Of Phase | 2 |
| Encoder Specification | |
| Resolution(CPR) | 1000 |
| Output Signal Channels | 2 Channels |
