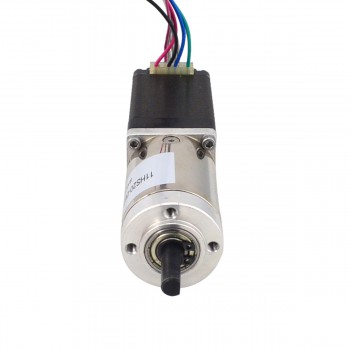

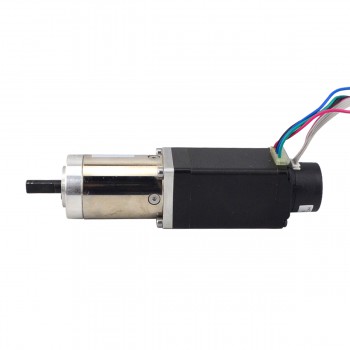

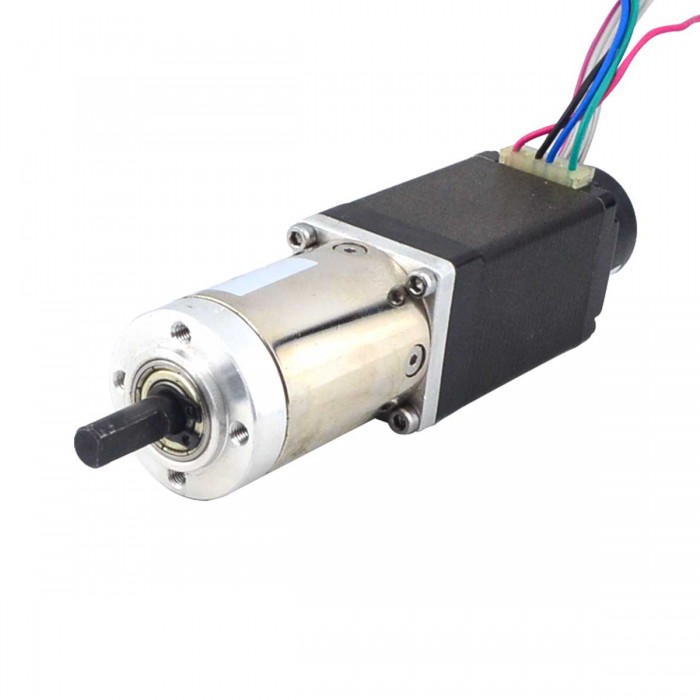

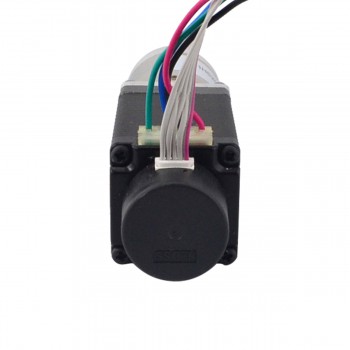

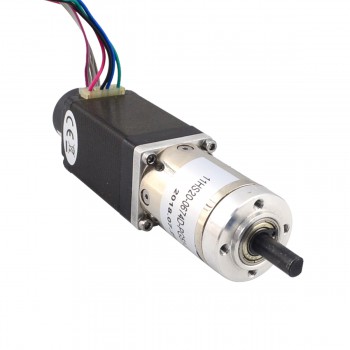

Nema 11 Closed-loop Geared Stepper L=51mm Gear Raio 51:1 Encoder 300CPR

NO.:11HS20-0674D-PG51-E22-300
Review: Post a review
Latest price:$98.44
Buy It Now:$75.72
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$72.11 $68.51 $64.90 $61.30
Add To Cart

Motor Specification

  • Manufacturer Part Number: 11HS20-0674D-PG51-E22-300
  • Motor Type: Bipolar Stepper
  • Step Angle without Gearbox: 1.8 deg
  • Holding Torque without Gearbox: 0.14Nm(19.83oz.in)
  • Rated Current/phase: 0.67A
  • Phase Resistance: 12.00ohms
  • Voltage: 8.04V
  • Inductance: 6.50mH ± 20%(1KHz)
  • Number of Leads: 4
  • Lead Length: 500mm

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gearbox Length: 42.7mm
  • Gear Ratio: 51.89
  • Efficiency: 73%
  • Shaft Diameter: Φ6mm
  • Shaft Length: 18mm
  • D-Cut length: 12mm
  • Backlash at No-load: <=1deg
  • Max.Permissible Torque: 4Nm(566.56oz.in)
  • Moment Permissible Torque: 6Nm(849.84oz.in)
  • Shaft Maximum Axial Load: 5N
  • Shaft Maximum Radial Load: 25N

Encoder Specification

  • Supply Voltage : 5VDC
  • Output current : ≤20mA
  • Resolution : 300cpr
  • Output Signal : 2 Channels
  • Shaft Diameter : Φ4mm
  • Output Frequency : ≤30KHz
  • Output Low Voltage: ≤0.3VDC
  • Output High Voltage: ≥3.4VDC

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
