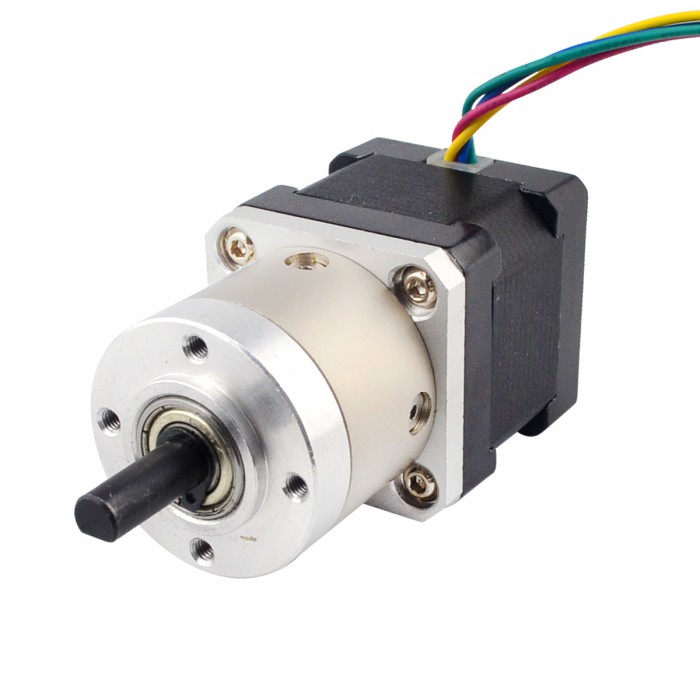

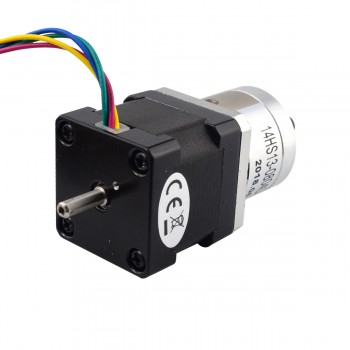

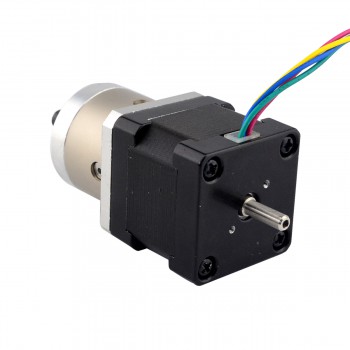

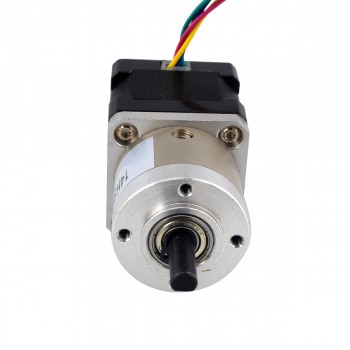

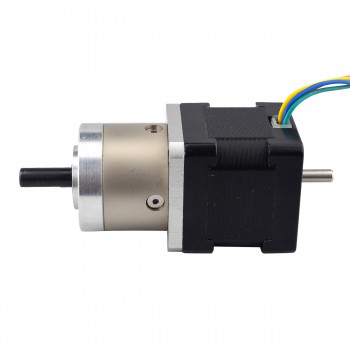

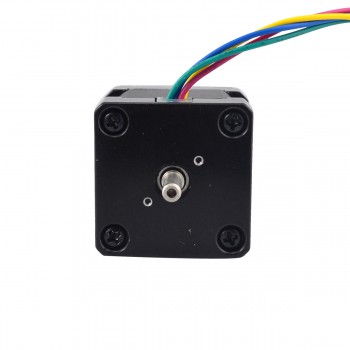

Nema 14 Geared Stepper Motor Bipolar L=34mm 1.8 Deg 14Ncm 1A 3.20V with 5:1 Gearbox Dual D-Cut Shaft
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
This Nema 14 stepper motor with 34mm body and 0.80A rated current, integrated a planetary gearbox of 5.18:1 gear ratio.
Electrical Specification
Manufacturer Part Number: 14HS13-0804D-PG5
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 14Ncm(19.88oz.in)
Rated Current/phase: 1A
Voltage: 3.20V
Phase Resistance: 3.2ohms
Inductance: 4.5mH ± 20%(1KHz)
Gearbox Specifications
Gearbox Type:Planetary
Gear Ratio:5.18:1
Efficiency:90%
Backlash at No-load:<=1deg
Max.Permissible Torque:2N.m(283oz.in)
Moment Permissible Torque:4N.m(566oz.in)
Shaft Maximum Axial Load:50N
Shaft Maximum Radial Load:100N
Physical Specification
Frame Size:35x35mm
Motor Length: 34mm
Gearbox Length:28mm
Front Shaft Diameter: Φ6mm
Front Shaft Length: 18mm
Front D-cut Length: 12mm
Rear Shaft Diameter: Φ4mm
Rear Shaft Length:12mm
Number of Leads: 4
Lead Length: 500mm
Weight: 400g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Resources
Full Datasheet: 14HS13-0804D-PG5.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Gearbox Specification | |
|---|---|
| Efficiency | 90% |
| Gear Ratio | 5.18:1 |
| Gearbox Length(mm) | 28.2 |
| Gearbox Type | Planetary |
| Backlash at No-load(Max.°) | 1 |
| Max. Permissible Torque(Ncm) | 200 |
| Max. Permissible Torque(oz.in) | 283.28 |
| Moment Permissible Torque(Ncm) | 400 |
| Moment Permissible Torque(oz.in) | 566.56 |
| Shaft Maximum Axial Load(N) | 50 |
| Shaft Maximum Radial Load(N) | 100 |
| Motor Specification | |
| Bipolar/Unipolar | Bipolar |
| Holding Torque w/o Gearbox(Ncm) | 14 |
| Holding Torque w/o Gearbox(oz.in) | 19.83 |
| Inductance(mH) | 4.5 |
| Lead Length(mm) | 500 |
| Motor Nema Size | Nema 14 |
| No. of Lead | 4 |
| Phase Resistance(ohm) | 3.2 |
| Rated Current (A) | 1.0 |
| Shaft Diameter(mm) | 6 |
| Shaft Length(mm) | 18 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Physical Specification | |
| Weight(g) | 400 |
