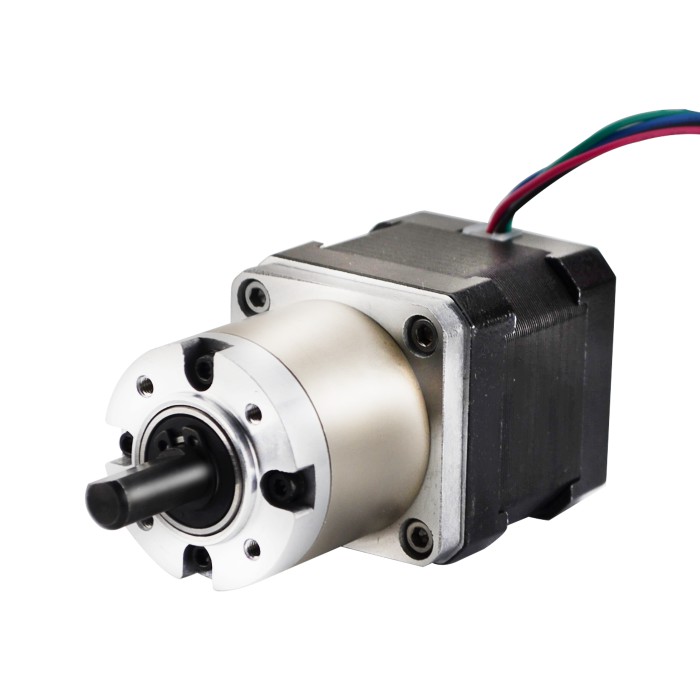

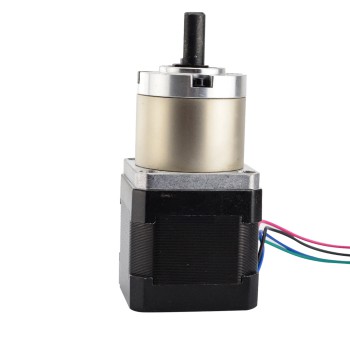

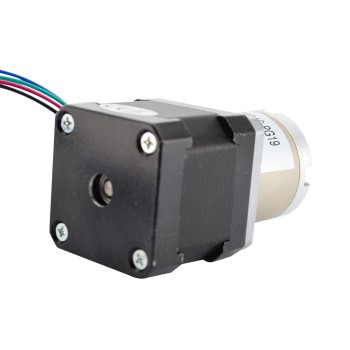

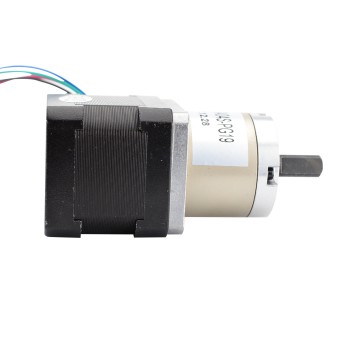

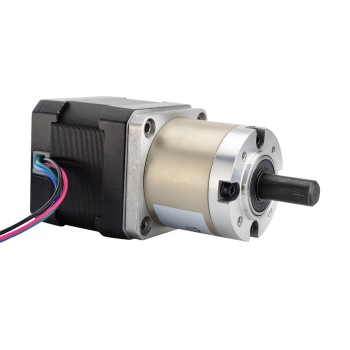

Nema 17 Geared Stepper Motor Bipolar L=39mm w/ Gear Ratio 19:1 Planetary Gearbox

NO.:17HS15-0404S-PG19
Review: Post a review
Latest price:$40.73
Buy It Now:$31.33
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$30.54 $29.76 $28.98 $28.20
Add To Cart

This Nema 17 stepper motor with 39mm body and 0.4A rated current, integrated a planetary gearbox of 19.19:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 17HS15-0404S-PG19
  • Motor Type: Bipolar Stepper
  • Step Angle: 0.094 deg
  • Holding Torque without Gearbox: 40Ncm(56.64oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30ohms
  • Voltage: 12V
  • Inductance: 58mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 19.19: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 39mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 450g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 14 Geared Stepper Motor L=52mm w/ Rear Shaft & Screw Hole & Gear Ratio 14:1 Gearbox
Next: Nema 23 Gear Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox & Pin Connector
Gearbox Specification
Efficiency 81%
Gear Ratio 19.19:1
Gearbox Length(mm) 35
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 300
Max. Permissible Torque(oz.in) 424.8
Moment Permissible Torque(Ncm) 500
Moment Permissible Torque(oz.in) 708.1
Shaft Maximum Axial Load(N) 50
Shaft Maximum Radial Load(N) 100
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 40
Holding Torque w/o Gearbox(oz.in) 56.6
Inductance(mH) 58
Lead Length(mm) 500
Motor Length(mm) 39
Motor Nema Size Nema 17
No. of Lead 4
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Shaft Diameter(mm) 8
Shaft Length(mm) 20
Shaft Type D-Cut
Single Shaft/Dual Shaft Single Shaft
Physical Specification
Weight(g) 450
No reviews
