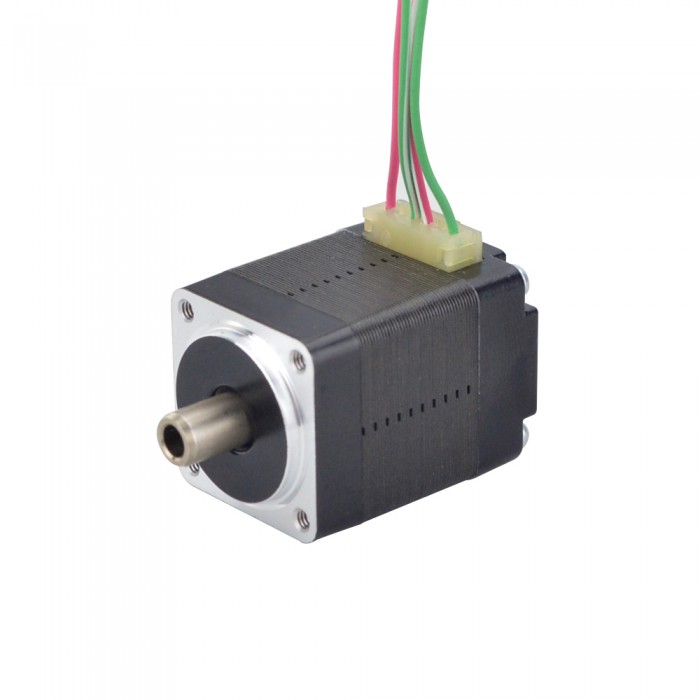

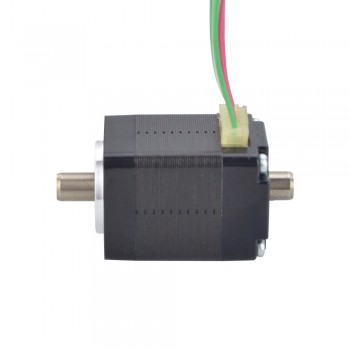

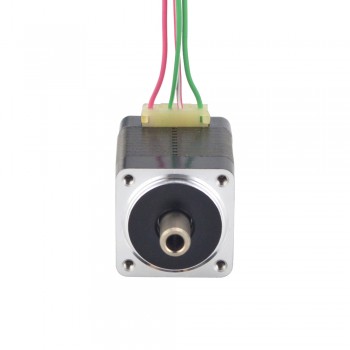

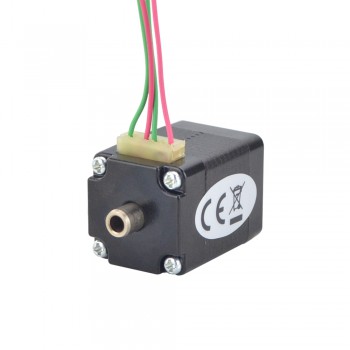

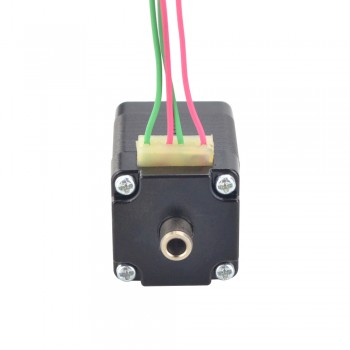

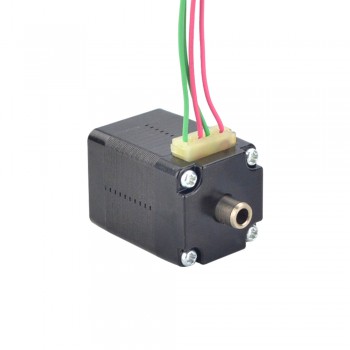

Nema 8 Hollow Shaft Stepper Motor Dual Shaft Bipolar 1.5Ncm (2.12oz.in) 0.49A 20x20x27mm

Nema 8 Hollow Shaft Stepper Motor Dual Shaft Bipolar 1.5Ncm (2.12oz.in) 0.49A 20x20x27mm
NO.:8HS12-0494H
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$29.14
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $27.68 5%
10 $27.10 7%
50 $26.23 10%
100 $24.77 15%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 8HS12-0494H
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 0.015 Nm(2.12oz.in)
  • Rated Current/phase: 0.49 A
  • Phase Resistance: 6.9 ohms± 10%
  • Inductance: 2.6 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20 mm
  • Body Length: 27.3 mm
  • Outer Shaft Diameter: Φ5 mm
  • Inner Shaft Diameter: Φ3 mm
  • Front Shaft Length: 8 mm
  • Rear Shaft Length: 5 mm
  • Number of Leads: 4
  • Lead Length: 310 mm
  • Weight: 0.05 kg

Connection

A+
A-
B+
B-
RED
RED/WHI
GRN/WHI
GRN



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 23 Gear Stepper Motor Bipolar L=56mm w/ Gear Ratio 4:1 Planetary Gearbox & Pin Connector
Next: Nema 11 Hollow Shaft Stepper Motor Bipolar Dual Shaft 6Ncm (8.5oz.in) 1.0A 28x28x32mm
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 15
Holding Torque (oz.in) 2.12
Inductance(mH) 2.6
Phase Resistance(ohm) 6.9
Rated Current (A) 0.49
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 27.3
Frame Size(mm) 20 x 20
Lead Length(mm) 310
No. of Lead 4
Shaft Type Hollow
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 50g
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
