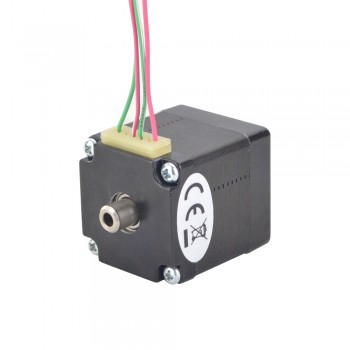

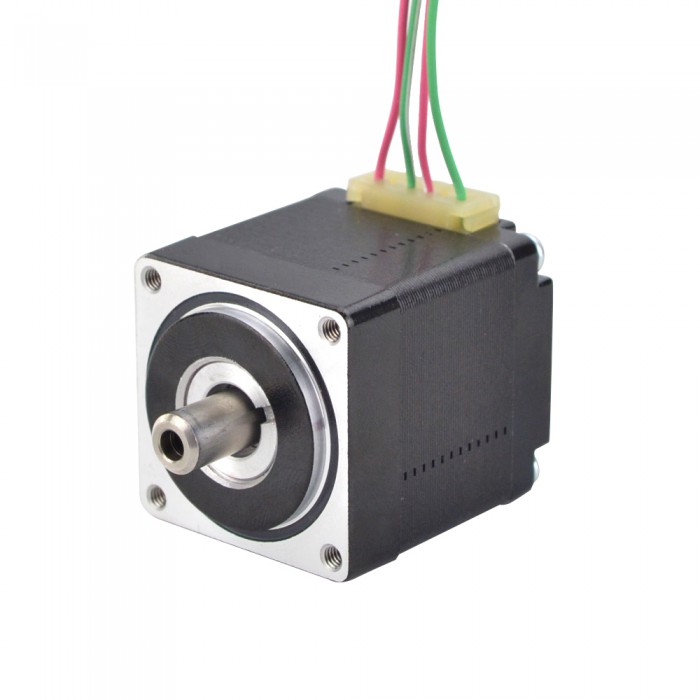

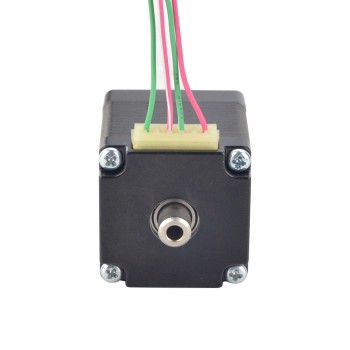

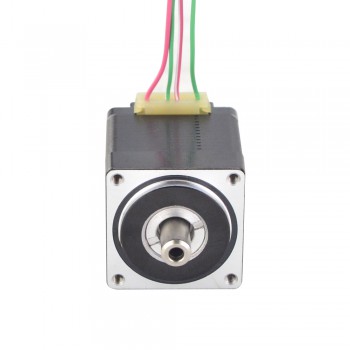

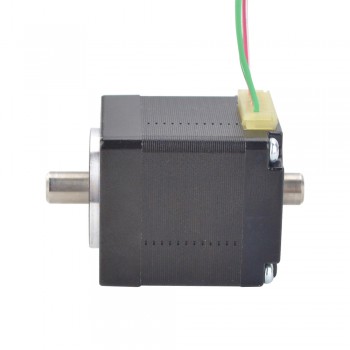

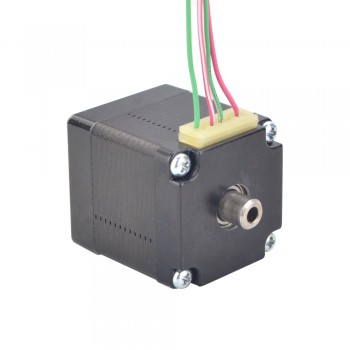

Nema 11 Hollow Dual Shaft Stepper Motor Bipolar 1.8 Deg 6Ncm (8.5oz.in) 1.0A 4 Wires
- Manuals and Documentation: Full Datasheet:
Our Price:$22.61
Electrical Specification
Manufacturer Part Number: 11HS13-1004H
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 0.06 Nm(8.5oz.in)
Rated Current/phase: 1.0 A
Phase Resistance: 2.1 ohms± 10%
Inductance: 1.5 mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28 mm
Body Length: 32.2 mm
Outer Shaft Diameter: Φ6 mm
Inner Shaft Diameter: Φ3 mm
Front Shaft Length: 10 mm
Rear Shaft Length: 5 mm
Number of Leads: 4
Lead Length: 310 mm
Weight: 0.11 kg
Connection
| A+ | A- | B+ | B- |
| RED | RED/WHI | GRN/WHI | GRN |
| Physical Specification | |
|---|---|
| Frame Size(mm) | 28x28 |
| Body Length(mm) | 32.2 |
| Lead Length(mm) | 310 |
| No. of Lead | 4 |
| Shaft Type | Hollow |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 110 |
| Electrical Specification | |
| Holding Torque (Ncm) | 6 |
| Holding Torque (oz.in) | 8.5 |
| Inductance(mH) | 1.5 |
| Phase Resistance(ohm) | 2.1 |
| Rated Current (A) | 1 |
| Motor Specification | |
| Bipolar/Unipolar | Bipolar |
| Step Angle(°) | 1.8 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
