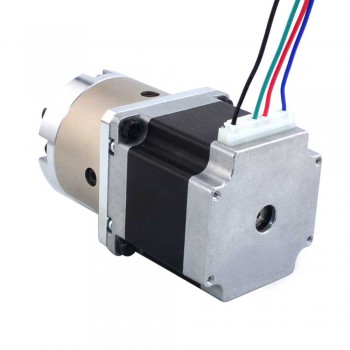

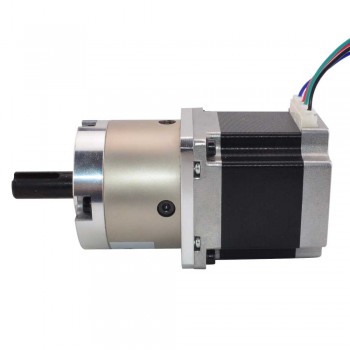

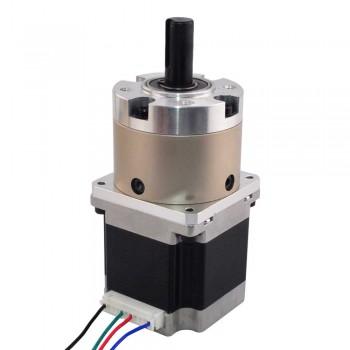

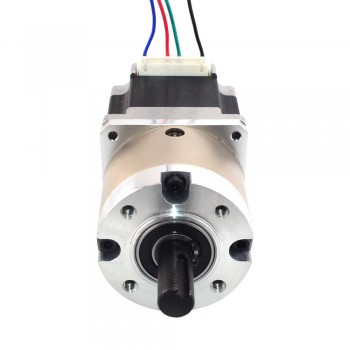

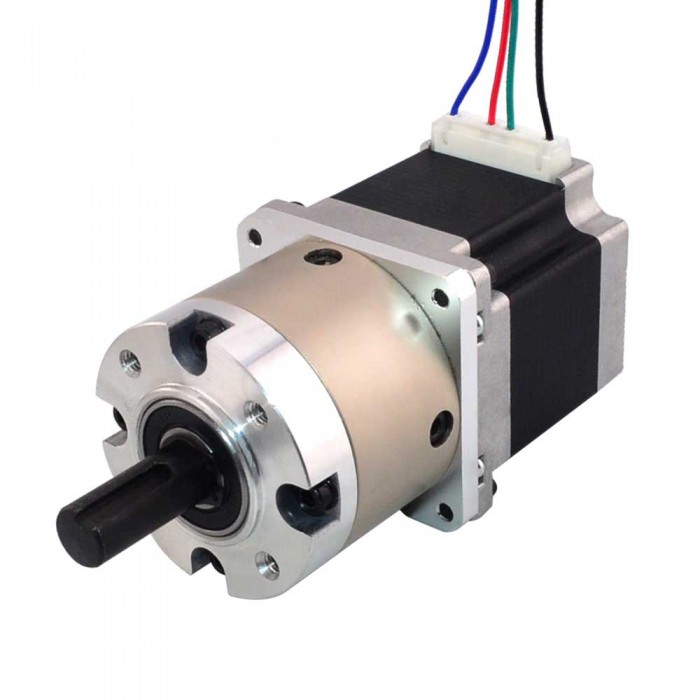

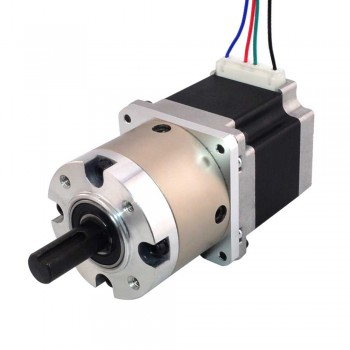

Nema 23 Gear Stepper Motor Bipolar L=56mm1.8 Deg 1.25Nm 2.8A with 4:1 Planetary Gearbox

Nema 23 Gear Stepper Motor Bipolar L=56mm1.8 Deg 1.25Nm 2.8A with 4:1 Planetary Gearbox
NO.:23HS22-2804SX-PG4
Post a review
Special Offer in December 2023:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till December 7th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$68.02
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $64.62 5%
10 $63.26 7%
50 $61.22 10%
100 $59.18 13%
Add To Cart

This Nema 23 stepper motor with 56mm body and 2.8A rated current, integrated a planetary gearbox of 4.25:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.

Electrical Specification

  • Manufacturer Part Number: 23HS22-2804SX-PG4
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque without Gearbox: 1.25Nm(177.01oz.in)
  • Rated Current/phase: 2.8A
  • Phase Resistance: 0.9ohms
  • Inductance: 2.5mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type:Planetary
  • Gear Ratio:4.25
  • Efficiency:90%
  • Backlash at No-load:<=1deg
  • Max.Permissible Torque:20N.m(2832oz.in)
  • Moment Permissible Torque:30N.m(4248oz.in)
  • Shaft Maximum Axial Load:100N
  • Shaft Maximum Radial Load:200N

Physical Specification

  • Frame Size: 60 x 60mm
  • Gearbox Length:43.5mm
  • Shaft Diameter: Φ12mm
  • Shaft Length: 30mm
  • Key-way Length:20mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 1200g

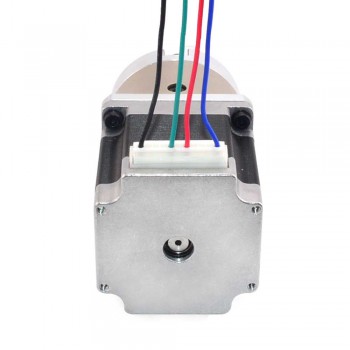

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 17 Geared Stepper Motor Bipolar L=39mm 1.8 Deg 0.094 Deg 12V 0.4A with 19:1 Planetary Gearbox
Next: Nema 8 Hollow Shaft Stepper Motor Bipolar 1.8 Degree 1.5Ncm (2.12oz.in) 0.49A 20x20x27mm Dual Shaft
Gearbox Specification
Efficiency 90%
Gear Ratio 4.25:1
Gearbox Length(mm) 43.5
Gearbox Type Planetary
Backlash at No-load(Max.°) 1
Max. Permissible Torque(Ncm) 2000
Max. Permissible Torque(oz.in) 2832.2
Moment Permissible Torque(Ncm) 3000
Moment Permissible Torque(oz.in) 4248.4
Shaft Maximum Axial Load(N) 100
Shaft Maximum Radial Load(N) 200
Motor Specification
Bipolar/Unipolar Bipolar
Holding Torque w/o Gearbox(Ncm) 125
Holding Torque w/o Gearbox(oz.in) 177
Inductance(mH) 2.5
Lead Length(mm) 300
Motor Nema Size Nema 23
No. of Lead 4
Phase Resistance(ohm) 0.9
Rated Current (A) 2.8
Shaft Diameter(mm) 12
Shaft Length(mm) 30
Shaft Type Key-Way
Single Shaft/Dual Shaft Single Shaft
Physical Specification
Weight(g) 1200
