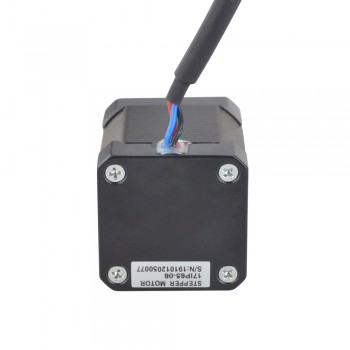

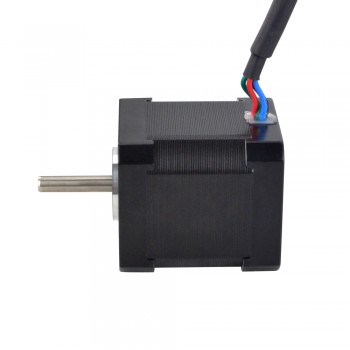

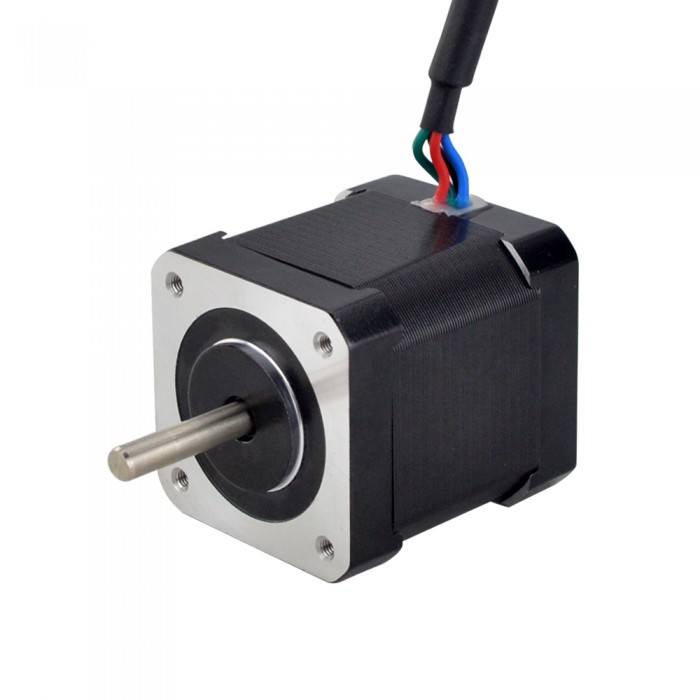

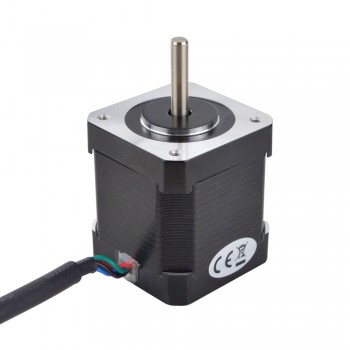

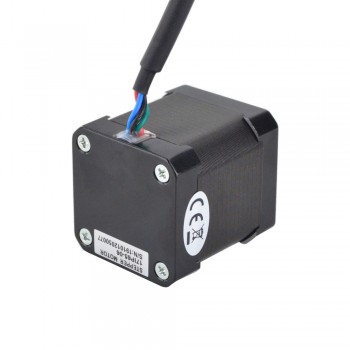

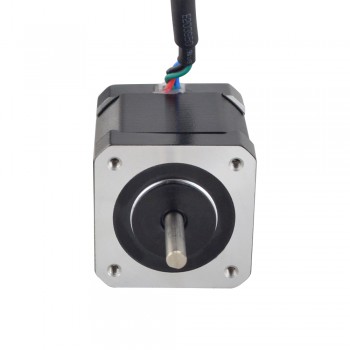

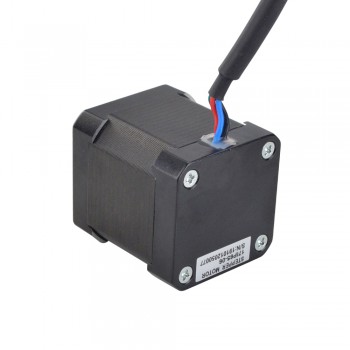

Waterproof Nema 17 Stepper Motor 1.8 Deg 2.0A 0.59 Nm 2 Phase P Series IP65 Water Resistant Stepper Motor

Waterproof Nema 17 Stepper Motor 1.8 Deg 2.0A 0.59 Nm 2 Phase P Series IP65 Water Resistant Stepper Motor
NO.:17IP65-06
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$26.87
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $25.53 5%
10 $24.99 7%
50 $24.18 10%
100 $23.38 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 17IP65-06
  • Number of phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 0.59 Nm(83.57 oz.in)
  • Rated Current/phase: 2.0 A
  • Phase Resistance: 1.5 ohms
  • Inductance: 3.0 mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 47 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 37 mm
  • D-cut Length: 37 mm
  • Lead Length: 1000 mm
  • Weight: 0.41 kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 300 CPR Optical Stepper Motor Rotary Encoder AB 2-Channel ID 4mm for Stepper Motor HKT22
Next: Waterproof Nema 23 Closed Loop Stepper Motor P Series IP65 1.8 Deg 1.2Nm 4A 2 Phase with Encoder 1000CPR
Electrical Specification
Holding Torque (Ncm) 59
Holding Torque (oz.in) 83.57
Inductance(mH) 3.0
Phase Resistance(ohm) 1.5
Rated Current (A) 2.0
Step Angle(°) 1.8
Motor Specification
Motor Nema Size NEMA 17
Number Of Phase 2
Waterproof Level IP65
Physical Specification
Lead Length(mm) 1000
Shaft Diameter(mm) 5
Shaft Length(mm) 37
